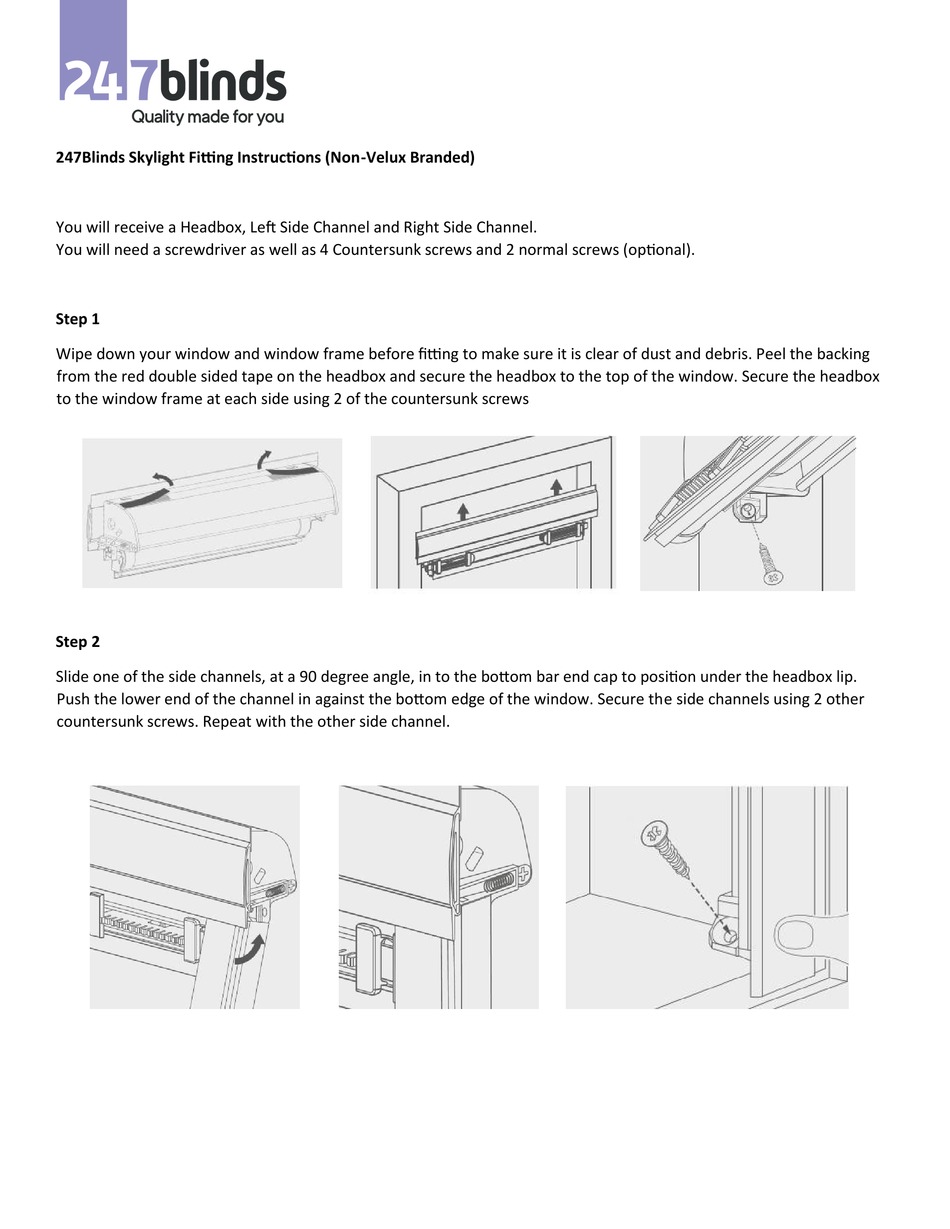

247Blinds Skylight Fi�ng Instruc�ons (Non-Velux Branded)
You will receive a Headbox, Le� Side Channel and Right Side Channel.
You will need a screwdriver as well as 4 Countersunk screws and 2 normal screws (op�onal).
Step 1
Wipe down your window and window frame before fi�ng to make sure it is clear of dust and debris. Peel the backing
from the red double sided tape on the headbox and secure the headbox to the top of the window. Secure the headbox
to the window frame at each side using 2 of the countersunk screws
Step 2
Slide one of the side channels, at a 90 degree angle, in to the bo�om bar end cap to posi�on under the headbox lip.
Push the lower end of the channel in against the bo�om edge of the window. Secure the side channels using 2 other
countersunk screws. Repeat with the other side channel.
Advertisement
Table of Contents
Related Manuals for 247Blinds Skylight
Summary of Contents for 247Blinds Skylight
- Page 1 247Blinds Skylight Fi�ng Instruc�ons (Non-Velux Branded) You will receive a Headbox, Le� Side Channel and Right Side Channel. You will need a screwdriver as well as 4 Countersunk screws and 2 normal screws (op�onal). Step 1 Wipe down your window and window frame before fi�ng to make sure it is clear of dust and debris. Peel the backing from the red double sided tape on the headbox and secure the headbox to the top of the window.
- Page 2 Optional For larger windows (size 04 or bigger recommended), you may wish to secure further using 2 normal screws, positioned through the side channels in to the window frame. Step 3 Remove the red cord retainers and unwind the cord. These can be disposed of. Pull the cord to the bottom of the side channel and secure in to the locking mechanism.
