Z176SFTTX
1.
CARTON CONTENTS
•
Housing
•
Adapter(s), one of the following types (optional):
•
OptiTap
•
Fiber Management Spool (optional)
•
Fiber Management Spool with splice organizer (optional)
Ground
Stud
Entry Grommets
TPA-3689
2.
TOOLS AND MATERIALS
The following may be required for installation:
•
Can wrench
•
Hammer
•
(2) #8 Mounting screws (wall-mount only)
•
(2) Flat washers for mounting screws
(wall-mount only)
ISSUE 3 | MAy 2019 | PAGE 1 OF 4
Fiber Transition Housing, Specification Sheet
•
Single SC simplex
®
Adapter Mounting Bracket
Backplate
Lower
Mounting Ear
Fiber Transition Housing
Z176SFTTX
Fiber Management Spool
Mounting Stud
•
Standard screwdrivers , 1/4-in x 4-in
and pocket-size
•
Needle-nose pliers
•
(2) Large tie bands or cable ties
(conduit-mount only)
•
Single LC
Adapter Port Options
OptiTap Adapter
Single SC
Simplex Adapter
Single LC
Adapter
Fiber Management Spool with Organizer
(Optional)

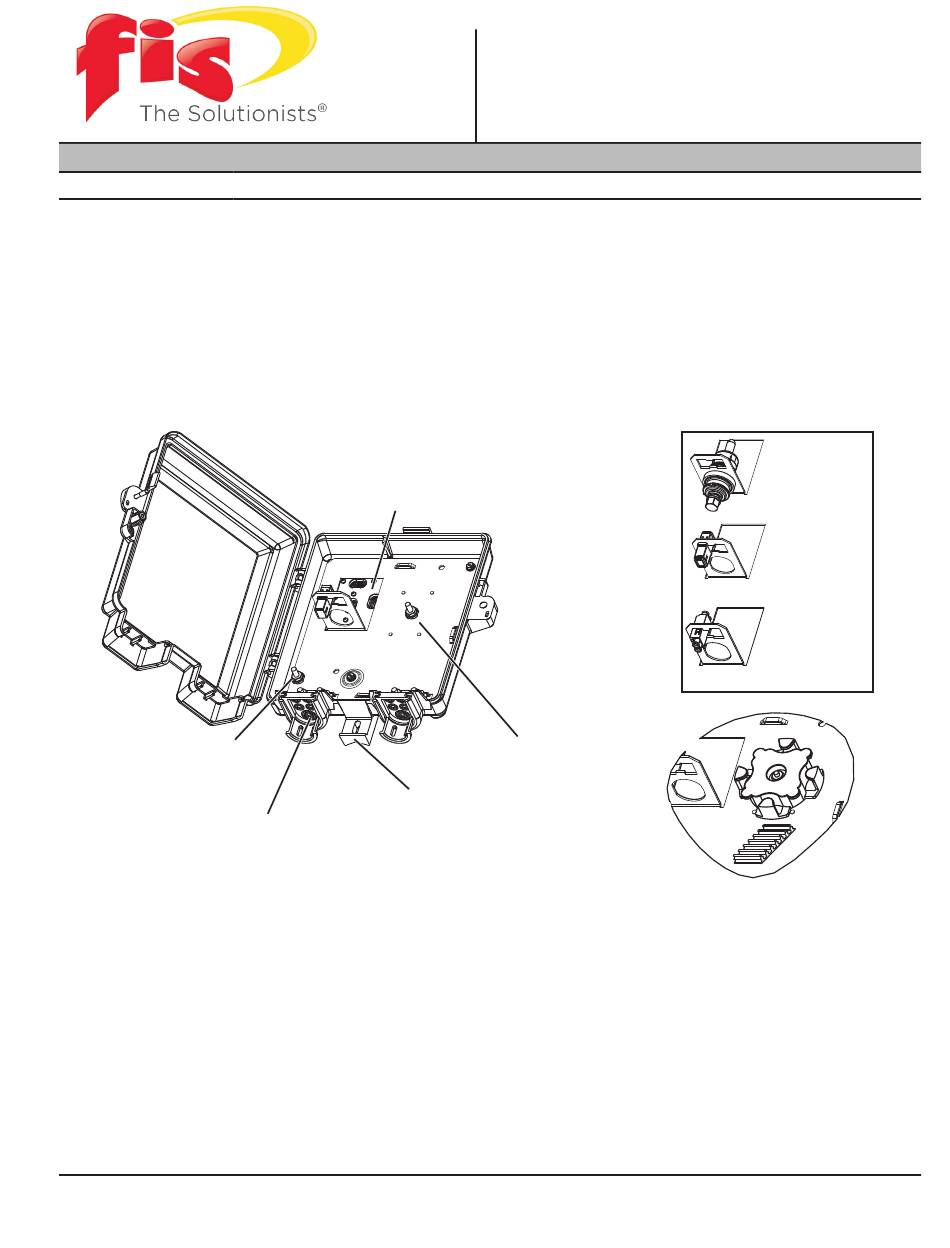

Figure 1 — Carton Contents
Advertisement
Table of Contents
Summary of Contents for fis The Solutionists Z176SFTTX
- Page 1 Fiber Transition Housing Z176SFTTX related literature | Z176SFTTX Fiber Transition Housing, Specification Sheet CARTON CONTENTS • Housing • Adapter(s), one of the following types (optional): • • • OptiTap Single SC simplex Single LC ® • Fiber Management Spool (optional) •...
- Page 2 PRECAUTIONS All applicable regulatory requirements supersede this document. Do not attempt an installation unless a copy of these requirements is available for reference. 3.1. Laser Handling Precautions WARNING: Never look directly into the end of a fiber that may be carrying laser light. Laser light can be invisible and can damage your eyes.
- Page 3 MOUNTING Choose a vertical surface near approved ground but away from down spouts, permanent water sprinklers, and other water sources. To wall-mount the unit, select #8 wood screws (and washers, if needed behind screw head), or hardware appropriate for the wall surface (Figure 2). Wall-mount Conduit-mount #8 Wood screw,...
- Page 4 FEEDER CABLE INSTALLATION Step 1: Remove cable sheath and strength members per standard company practices. Step 2: Pierce grommet and insert feeder cable into the unit. Remove strain-relief hardware using a can wrench. Strain-relieve the cable with the clamp as shown in Figure 3. Step 3: Route slack around the perimeter of the unit, securing to the lances with cable ties as needed.
