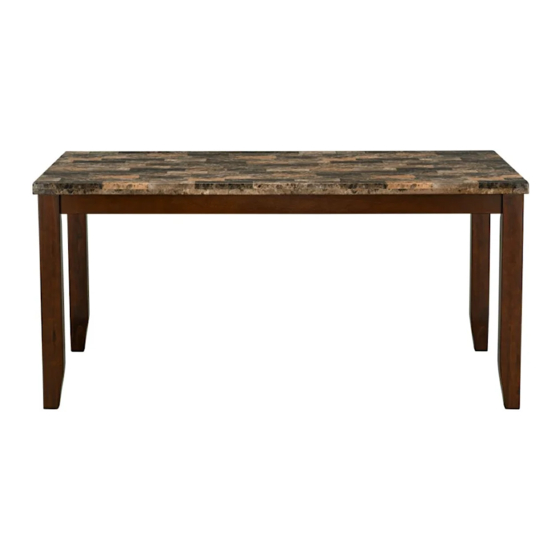

Summary of Contents for Standart Furniture Bartoli DR 14080

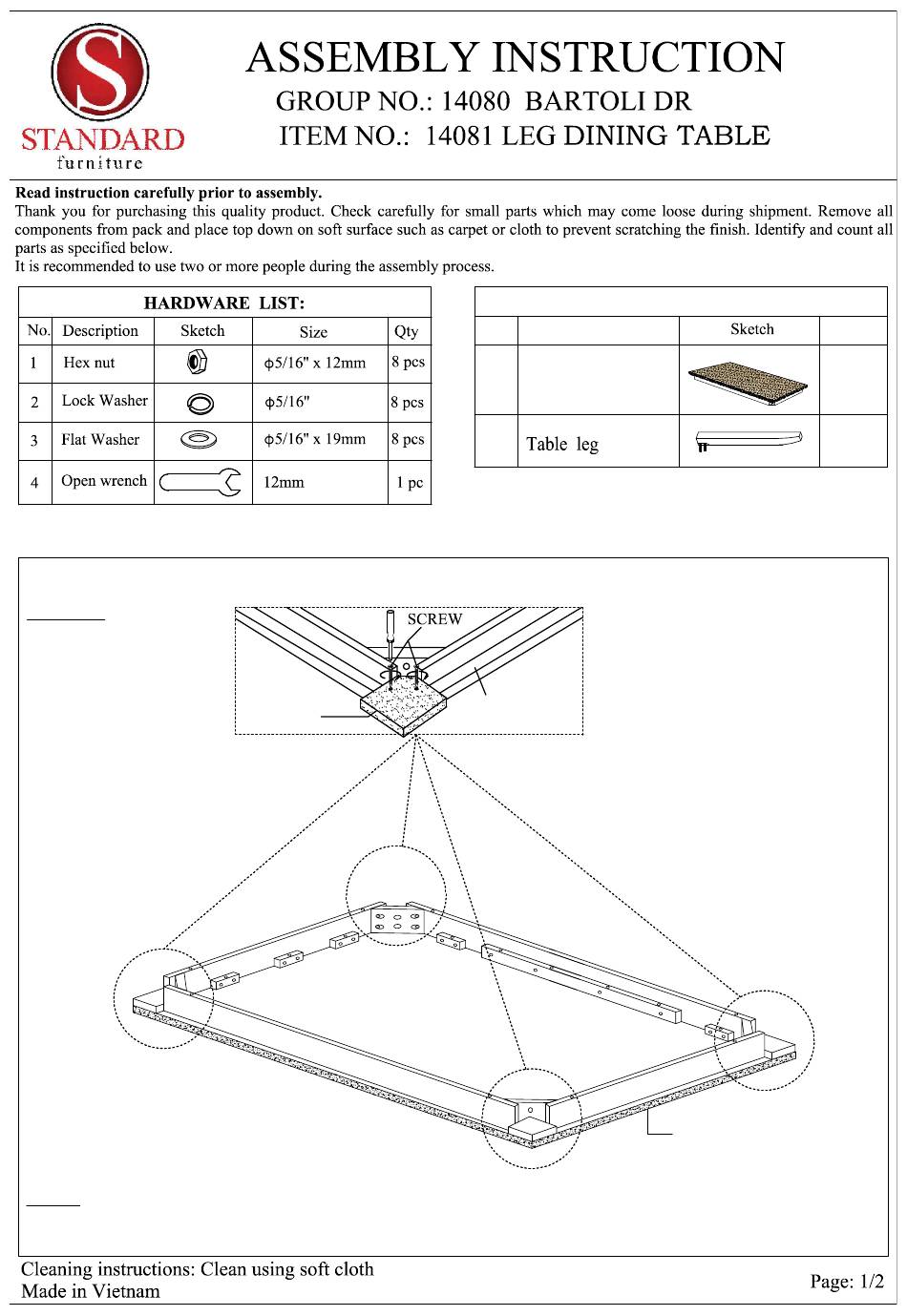

- Page 1 PARTS LIST: Description Table Top 1 pc 4 pcs Step 1: TABLE TOP MDF CORNER SUPPORT Step 1 : Turn Table top upside down and put on soft surface such as carpet or cloth and then take out wood protect on table top using by Phillips screw driver (not included ).
- Page 2 Step 2: Step 2: Attach Leg (2) to corner of Table top by using Flat Washer (3), Spring Washer (2), Hex nut (1) and Open Wrench (4) (do not fully tighten). Step 3:...
- Page 3 PARTS LIST FOR TWO CHAIR: Description Chair back 2 pcs 2 pcs Seat cushion Front Leg 4 pcs Step 1: Attach Seat cushion (2) to Chair back (1) by using the Flat washer (D), Lock washer (E), Allen Bolt (C) and Allen Key (F) on back rail (do not fully tighten). Step 2: Attach Seat cushion (2) to Chair back (1) by using the Flat washer (D), Lock washer (E), Allen Bolt (B) and Allen Key (F) onto corner (do not fully tighten).
- Page 4 Step 3 : Attach the Front Leg to the corner of the seat frame by using Flat Washer (D), Lock Washer (E), Allen bolt (A) and Allen Key (F). Step 4: Stick up the fabric to bottom of Step 5: Place Chair on flat surface and adjust legs so Seat cushion (B).
