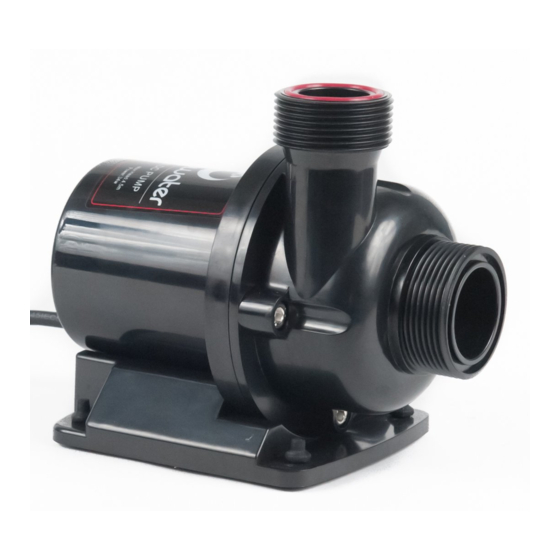

Deepwater Aquatics BLDC
Please review this manual before installing your new pump
Pump model and specification:
Flow
Head
Watt
Model
(L/h)
(m)
□
BLDC5
5500
4.5
33.4
□
BLDC7
7000
5
43.2
□
BLDC8
8000
5.6
67.2
1000
□
BLDC10
5
79.2
0
1200
□
BLDC12
6.5
0
1500
□
BLDC15
7
0
Check your package:
1× BLDC power adapter
1× BLDC pump controller
1× BLDC pump motor
1× manual
2× fittings (add on item)
-1-
Voltage
Current
(W)
(V dc)
(A)
24
1.4
24
1.8
24
2.8
24
3.3
132
24
5.5
144
24
6
Connection:
Pump controller
90-240V ac
Power adapter
Install:
Controller should be installed on a place higher than pump
to prevent water damage.
-2-
Pump motor
Advertisement
Summary of Contents for Deepwater Aquatics BLDC5
- Page 1 Connection: Manual Pump controller Deepwater Aquatics BLDC 90-240V ac Please review this manual before installing your new pump Pump motor Pump model and specification: Power adapter Flow Head Watt Voltage Current Model (L/h) (V dc) □ BLDC5 5500 33.4 □...
- Page 2 Pump must always stay IMPORTANT: The diameter submersed; otherwise the of the pipe connected to the pump will stop to prevent pump inlet outlet damage. Do not use 90 should not be reduced. Pump function: degree elbows Reduce pipe at the very last intake.
-
Page 3: Operation
Operation 8. Continuing to press S1, pump will jump to the highest speed within 3s. 9. Continuing to press S2, pump will jump to lowest speed, first LED on the left will still be lit up. Speed Indicator LED 10. Turn Off: Pump will stop and first LED on the left will extinguish if you press S2 when pump is running at lowest speed. - Page 4 For Technical Support 1-1. If first LED flicking, try to adjust the location of pump, check Deepwater Aquatics output pipe connected on inlet of pump, look if there is enough water 888-789-5553 flowing into pump.
Need help?
Do you have a question about the BLDC5 and is the answer not in the manual?
