Summary of Contents for AVECO ASTRA GPI

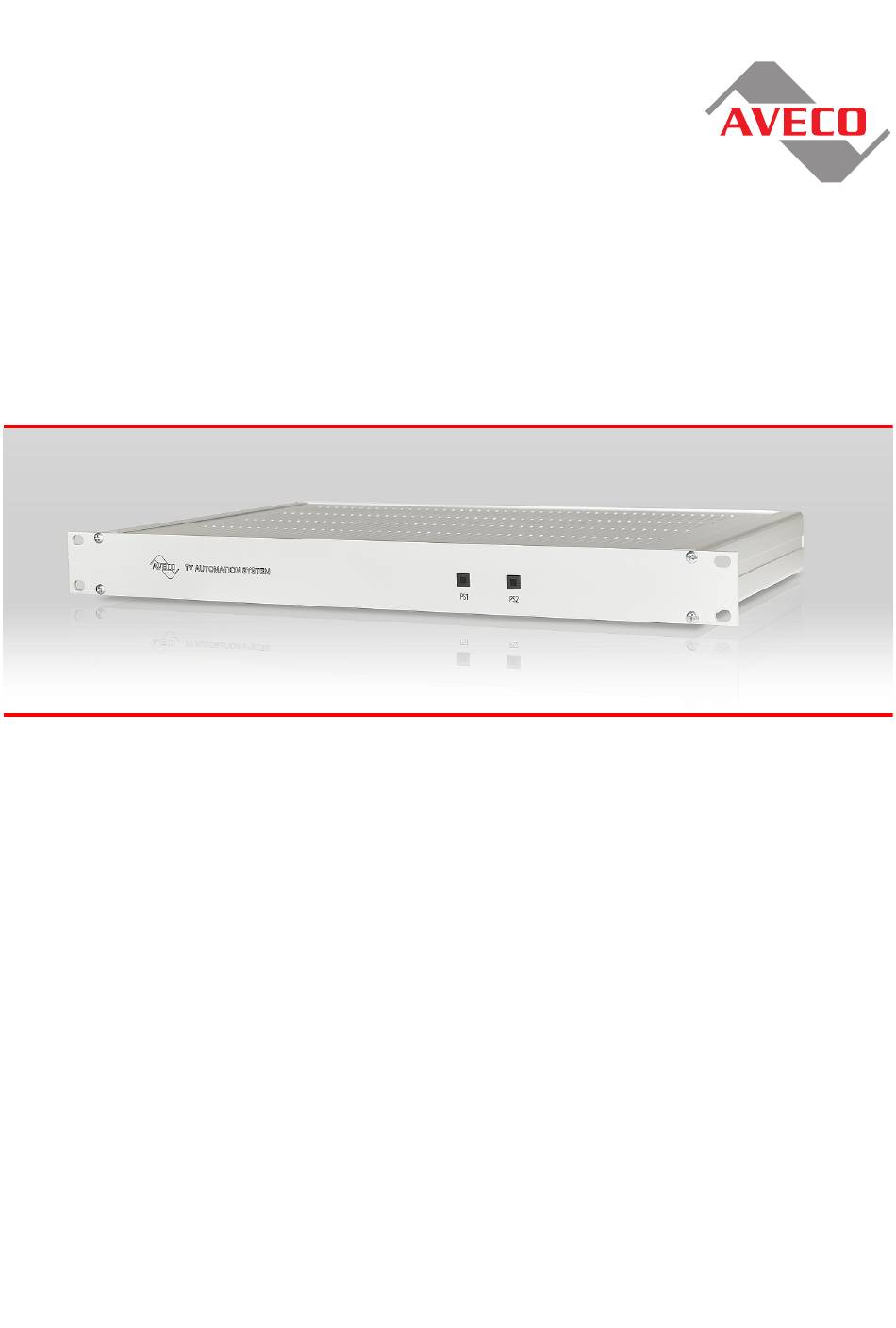

- Page 1 ASTRA GPI Extender Technical Reference Sheet TRS-1014-04...
- Page 2 ASTRA GPI Extender Technical Reference Sheet TRS-1014-04 Aveco www.aveco.com Publication Date: Apr. 2019 Copyright © Apr. 2019 Aveco All product and application features and specifications are subject to change at Aveco's sole discretion at any time and without notice. TRS-1014-04...
-
Page 3: Table Of Contents
List of Figures 1. GPI Extender - Back Panel ......................1 2. Pinout of GPI Connectors 1-2 ......................3 3. Pinout of GPI Connectors 3-4 ......................3 4. Schematic of GPI Output ......................... 4 © Apr. 2019 Aveco | TRS-1014-04... -
Page 4: Introduction
INTRODUCTION OVERVIEW The purpose of the ASTRA GPI extender is to increase the number of available GPI relay outputs of the automation system. One ASTRA automation server provides 15 GPI relay outputs. If a large number of GPIs are needed, one or more GPI extenders shall be used. -
Page 5: Technical Specifications
1U - 483mm x 45mm (19" x 1.75"), depth 280mm Power Power Supply 2x PS, 90-260 V AC, 47-63 Hz Power Consumption Max. 90W Control GPI-OUT1 relays 1-8 GPI-OUT2 relays 9-16 GPI-OUT3 relays 17-24 GPI-OUT4 relays 25-32 © Apr. 2019 Aveco | TRS-1014-04... -
Page 6: Pinout Of Gpi Connectors 1-2
24 relay32 c 12 relay20 c 25 ground 12 relay28 c 25 ground 13 relay21 a 13 relay29 a Description of Relay Contacts common contact contact switched on in action contact switch on in stand-by position © Apr. 2019 Aveco | TRS-1014-04... -
Page 7: Schematic Of Gpi Output
ASTRA GPI Extender Technical Reference Sheet Figure 4. Schematic of GPI Output GPI Extender © Apr. 2019 Aveco | TRS-1014-04... -
Page 8: Setting Up The Device
Confirm that your device has the latest firmware and perform a firmware update if the latest version is not already installed. The current firmware is version 10. Contact Aveco to confirm that there is not a later version. If you are using the new XPORT model of the GPI extender (MAC addresses start with 0080) you must use the firmware xpt05quido_aveco_v10.lxc.
