X p o w e r M o b i l e P l u g 7 5 O w n e r ' s G u i d e
Thank you for purchasing the XPower Mobile Plug 75 inverter. The Mobile Plug converts 12
volt DC battery power from your vehicle into standard 120 VAC household electricity,
allowing you to power most notebook computers, your cell phone charger, camcorder,
personal notebook and other household products drawing 60 watts or less of continuous AC
power.
B
I m p o r t a n t :
EFORE USING YOUR
' . S
OWNER S GUIDE AVE THESE INSTRUCTIONS
.
SAFETY INSTRUCTIONS
W A R N I N G ! S h o c k h a z a r d
power as a normal household wall outlet.
• Do not open (no user-serviceable parts inside)
• Do not insert foreign objects into the outlet
• Do not expose to water, rain, or snow
• Do not connect to power utility AC distribution wiring.
• Failure to follow the above may result in personal injury or damage to the inverter.
W A R N I N G ! H e a t e d s u r f a c e
warm, reaching 65°C (150°F) under extended high power operation. During operation, keep
the inverter from materials that may be affected by high temperatures.
C A U T I O N
• R
EFER TO THE BATTERY MANUFACTURER
.
INSTALLATION AND OPERATION
• —do not connect to the inverter any AC products whose neutral conductor
N
EUTRAL FLOATING
is connected to ground.
• Do not expose to temperatures over 40°C (104°F).
• T
HE OUTPUT OF THE INVERTER IS NON
equipment:
• Small battery-operated products such as rechargeable flashlights, some rechargeable
shavers, and nightlights that are plugged into an AC receptacle to recharge
• Certain battery chargers for battery packs used with power tools
Certified to CSA Standard C22.2 No. 107
Conforms to UL Std. UL-458
4 4 5 - 0 2 0 5 - 0 1 - 0 1 R e v i s i o n A
O c t o b e r 2 0 0 5
M P I
OBILE OWER NVERTER READ AND UNDERSTAND THIS
–T '
HIS OWNER S GUIDE CONTAINS IMPORTANT
The Mobile Power Inverter generates the same AC
The inverter housing may become uncomfortably
'
S SAFETY INSTRUCTIONS FOR PROPER BATTERY
- . Do not use the inverter with the following
SINUSOIDAL

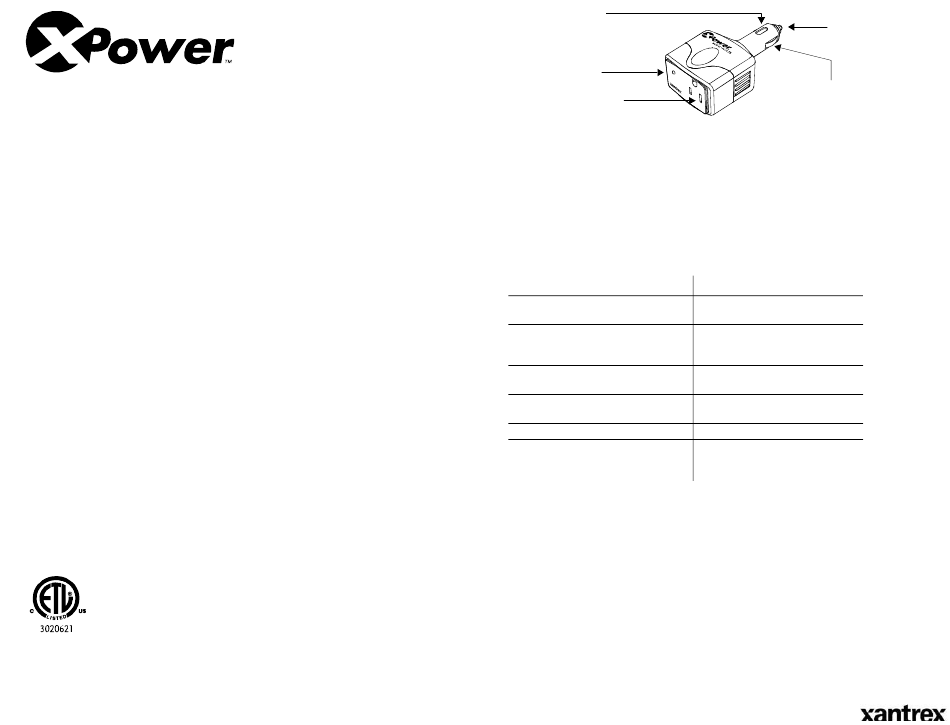

Slide control
Green LED
Three-prong AC
receptacle
O p e r a t i o n
1. Plug the inverter into your vehicle's lighter socket. If the socket is too large, adjust the negative
connectors using the slide control to ensure a snug fit. The (green) LED will light up.
2. Plug an AC product into the three-prong AC receptacle and turn it on. Ensure your product draws
60 watts or less of continuous AC power. To avoid discharging the battery, always remove the
inverter from the lighter socket when not in use.
T r o u b l e s h o o t i n g
Problem: AC product does not operate; green LED is not illuminated
P r o b a b l e c a u s e
AC product connected is rated at more than
60 watts; overload shutdown occurs
High starting surge has caused overload
shutdown even though AC product
connected is rated at less than 60 watts
Lighter socket or 12 volt outlet may require
ignition to be switched on
Poor contact with lighter socket or 12 volt
outlet
Battery is discharged
Fuse blown by heavy load
Problem: Buzzing sound in audio systems
Inexpensive stereo systems have an inadequate internal power supply filtering which causes a
buzzing sound. A system with a high quality filter is the only solution.
WARRANTY
The XPower Mobile Plug 75 has a one year limited warranty that covers
defects in workmanship or materials. The warranty does not apply where
the product has been misused, neglected, improperly installed, physically
damaged or altered, either internally or externally, or damaged from
improper use or use in an unsuitable environment.
To qualify for the warranty, dated proof of purchase must be provided and
the product must not be disassembled or modified. You must obtain a
Return Material Authorization (RMA) number from Xantrex prior to
returning a product. Should you require warranty service, please return
your product to the place of purchase along with a copy of your dated proof
of purchase, or contact Xantrex directly.
Positive Connector
Negative connector
S u g g e s t e d r e m e d y
Use product with a power rating of less
than 60 watts
Product exceeds inverter's surge
capability. Use a product with starting
surge power of less than 150 watts.
Turn ignition key to accessory position
Press inverter firmly into the lighter
socket. Make sure socket is clean.
Recharge battery
Replace the 8 A/250 V slow blow fuse
by unscrewing the fitting in the positive
connector.
www.xantrex.com/support
