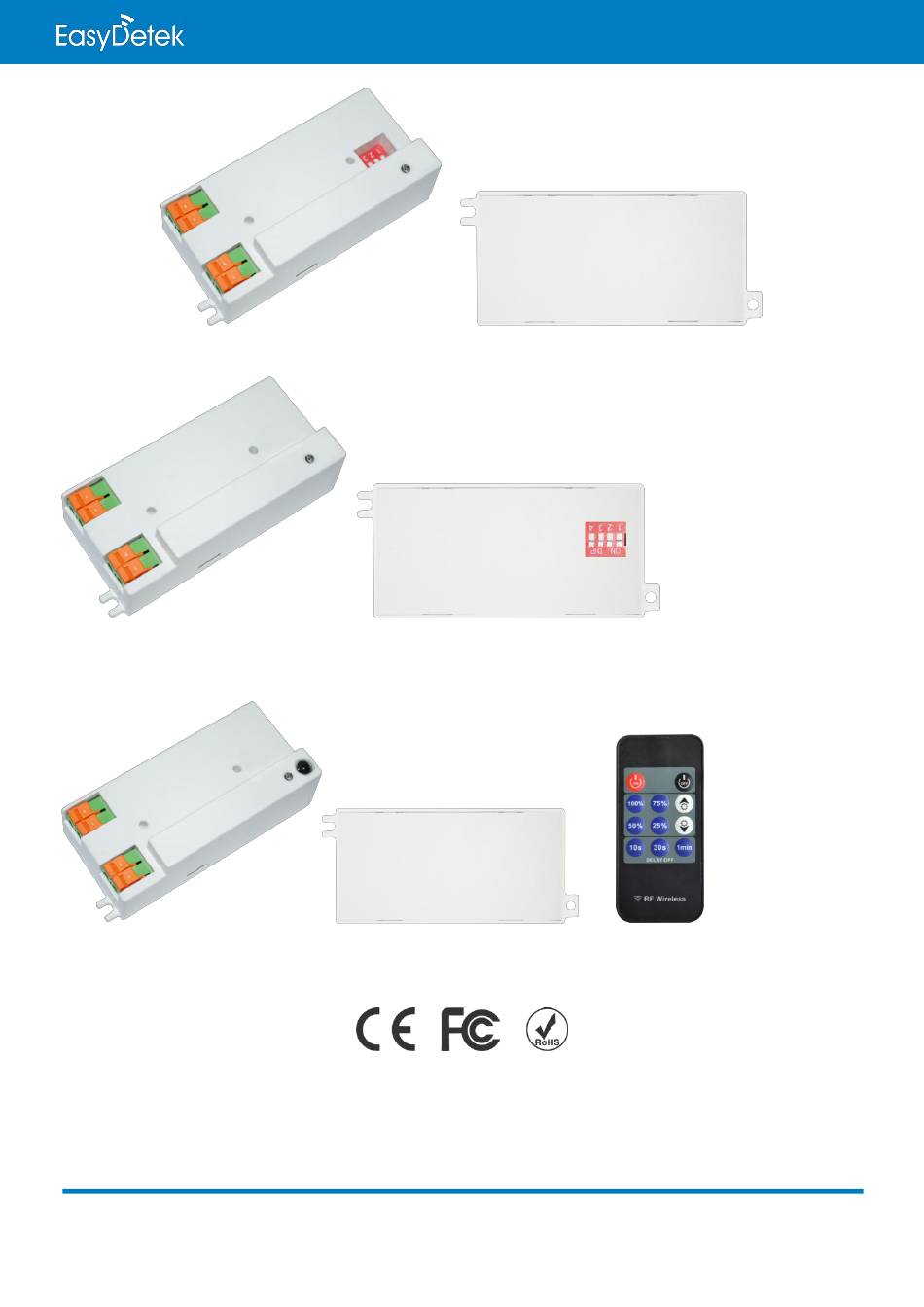

- Page 1 Shenzhen EasyDetek Technology Co.,Ltd EDC212S EDC212S-A EDC212S-B EDC212S-C - 1 - Address: Room 402, Building B, Hangcheng Industrial Zone, Chentian, Xixiang Street, Baoan District, Shenzhen Phone: 0755-27788421 Website: http://www.easydetek.com...
-
Page 2: Electrical Properties
Shenzhen EasyDetek Technology Co.,Ltd EDC212S product description ■ The shell is made of flame-retardant materials, with a fire rating of V-0; ■ Patented antenna design, super anti-interference; digital radar chip, good consistency; ■ Not affected by temperature, humidity, air flow, dust, noise, brightness, etc.;... -
Page 3: Product Information
Shenzhen EasyDetek Technology Co.,Ltd EDC212S Typical application products Ceiling light Three anti-light Moisture-proof lamp *The above are typical application products, which can be expanded to more products Product information Model Function description EDC212S-A 4-digit dialing code for forward installation (same side as antenna) -
Page 4: Pin Description
Shenzhen EasyDetek Technology Co.,Ltd EDC212S Fourth place: photosensitive threshold setting 25Lux Disable When the ambient illuminance value is lower than the set valve, an object moves in the sensing area. The stalls are: 25Lux / all day Pin description EDC212S-A pin... - Page 5 Shenzhen EasyDetek Technology Co.,Ltd EDC212S EDC212S-C Pin Description L-out Fire wire out N-out Zero line out L-in Fire wire in N-in Zero line in - 5 - Address: Room 402, Building B, Hangcheng Industrial Zone, Chentian, Xixiang Street, Baoan District, Shenzhen Phone: 0755-27788421 Website: http://www.easydetek.com...
- Page 6 Shenzhen EasyDetek Technology Co.,Ltd EDC212S Infrared remote control settings 100%: 4-6m 75%: 3-4.5m 50%: 2.5-4m 25%: 1.5-2m 10s: select time 10s 30s: select time 30s 1min: select time 1min Turn on the photosensitive function Turn off the photosensitive function 30Lux...
- Page 7 Shenzhen EasyDetek Technology Co.,Ltd EDC212S EDC212S-A Unit: (mm) EDC212S-B Unit: (mm) - 7 - Address: Room 402, Building B, Hangcheng Industrial Zone, Chentian, Xixiang Street, Baoan District, Shenzhen Phone: 0755-27788421 Website: http://www.easydetek.com...
-
Page 8: Function Description
Shenzhen EasyDetek Technology Co.,Ltd EDC212S EDC212S-C Unit: (mm) Function Description Photosensitive function is on When the ambient light is bright enough, the light will not When the ambient light is lower than the preset automatically light up even if a moving object is detected... -
Page 9: Packaging Information
Shenzhen EasyDetek Technology Co.,Ltd EDC212S Photosensitive function is off No moving objects can be detected, and the lamp goes When the sensor detects a moving object, the light automatically lights up at 100% brightness and enters the set delay time... - Page 10 Shenzhen EasyDetek Technology Co.,Ltd EDC212S Detection diagram (distance can be adjusted according to actual application) Detection sensitivity gear: Ceiling installation diagram Precautions 1. When installing the product, the antenna board is required to maintain a certain height from the metal plane. It is recommended that the antenna board be kept at a distance of 5-12mm from the metal plane.
- Page 11 Shenzhen EasyDetek Technology Co.,Ltd EDC212S interfere with the normal radiation of the antenna, causing false alarms or changing the sensing range; 8. If the microwave sensor and wireless communication module (NB, Bluetooth, WIFI, 2.4G module) coexist in application, the distance between the antenna of the Internet of Things module and the antenna of the microwave module should be increased in space.
- Page 12 Shenzhen EasyDetek Technology Co.,Ltd EDC212S Configuration version description 【hardware】: 【software】: History revision record version time description Remarks V1.0 2021-04-08 first edition - 12 - Address: Room 402, Building B, Hangcheng Industrial Zone, Chentian, Xixiang Street, Baoan District, Shenzhen Phone: 0755-27788421...
- Page 13 Shenzhen EasyDetek Technology Co.,Ltd EDC212S Federal Communications Commission (FCC) Compliance Statement for USA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
