ASSEMBLY INSTRUCTIONS FOR A SINGLE TABLE FOR CHESS OR LUDO.
1. Start the assembly with planning the table position, then make a trench with dimensions
of 800mm x 800mm x 230mm (length x width, depth).

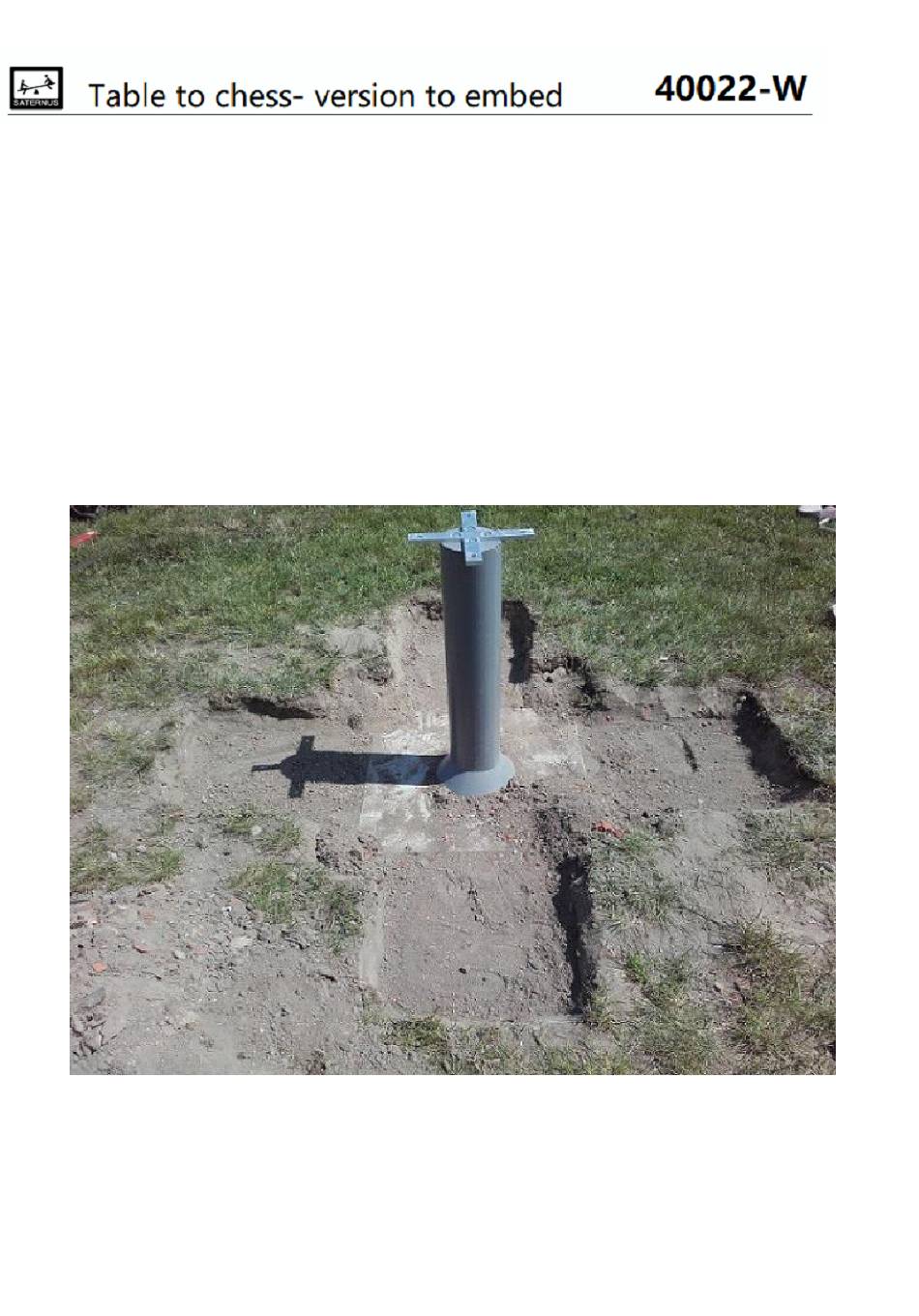

2. Then we level the excavation and insert a concrete pedestal. Screw the cross to the
pedestal and check the level.
Advertisement
Summary of Contents for SATERNUS 40022-W
- Page 1 ASSEMBLY INSTRUCTIONS FOR A SINGLE TABLE FOR CHESS OR LUDO. 1. Start the assembly with planning the table position, then make a trench with dimensions of 800mm x 800mm x 230mm (length x width, depth). 2. Then we level the excavation and insert a concrete pedestal. Screw the cross to the pedestal and check the level.
- Page 2 3. Backfill the trench, compacting with wooden pegs. It is very important to whip with the layouts after adding about 10cm. 4. Next, from the center of the pedestal wall, measure the distance of 700mm to the center of the pin. We dig the size of the prefabricated element for the seat and place the blocks as shown in the photo so that the top of the prefabricated element is flush with the ground.
- Page 3 6. Then we cover it all up and put on the top. If necessary, we put washers under the cross to get the level of the table top...
