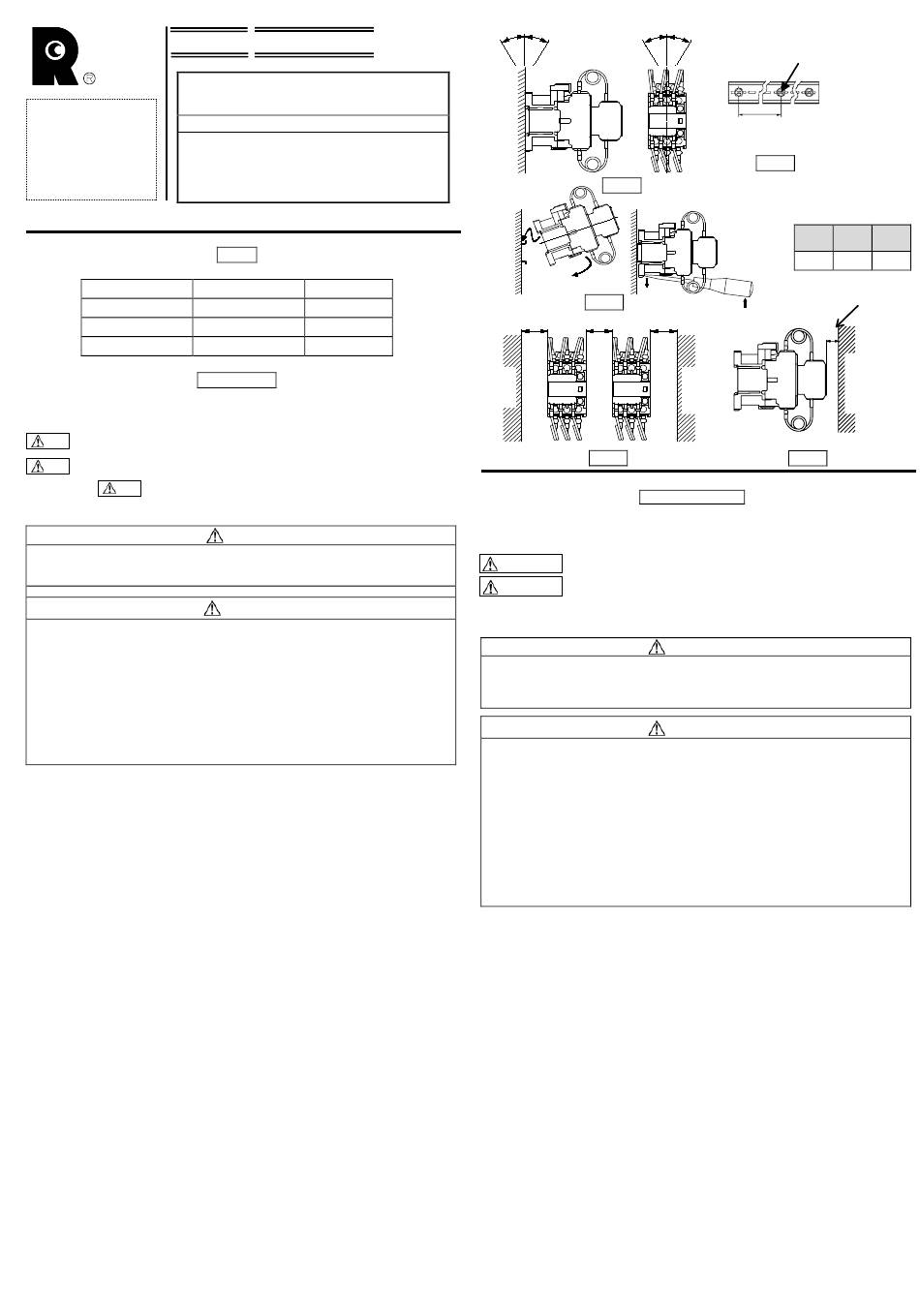

Riyue CK3-25K Instruction Manual

使用说明书
电容回路切换用交流接触器
Contactor for Capacitor Switching
请注意此使用说明书必须送
Type
至最终用户和维修责任者手
中保管。
CK3-25K
This manual should be given to
the person who actually uses the
CK3-50K
products and is responsible for
CK3-65K
their maintenance.
型号
CK3-25K
CK3-50K
CK3-65K
安全注意事项
在安装、运行、保养和维修前必须熟读使用说明书，以保证正确使用。
使用说明书中对安全注意事项区分为"警告" 、 "注意"两个等级。
警告
：不解除的话, 有可能造成死亡或重伤的危险状态。
注意
：不解除的话, 有可能造成中等程度的残疾, 轻伤以及发生物质损伤事故。
并且，即使在 注意 中记载的事项根据情况也有可能导致发生重大事故，所以记载
内容都很重要，请必须遵守
。
 请不要触摸和靠近通电中的产品，因有触电、灼伤的危险。
 维修、检验请在切断电源后进行，因有触电的危险。
 因为有引发灼伤、火灾的可能，所以请确保说明书上规定的安装空间。
 因为有引发火灾的可能， 所以请在接线时按额定电压、 通电电流选用符合规范尺寸
的电线，紧固螺钉按照使用说明书规定的力矩紧固。
 请不要在切断电源后立即触摸产品，因为余热可能会导致灼伤。
 请不要在把顶面安装单元和电阻线从接触器本体取下时使用。
因为有引发火灾的可能。
 请用内部回路图(Fig.8)来确认接线后电阻线的接线相顺序的正确性，因为有引发
短路事故的可能。
 产品废弃时需按产业废弃物处理。
1. 解开包装
(1) 请确认产品型号、控制线圈电压及适用容量与要求的规格是否一致。
(2) 请检查是否有由于运输等原因而引起的零部件松动或破损现象。
2. 保管
请避免高温多湿、有腐蚀性气体及日光直射的场所，以原包装的状态进行保管。
3. 安装
(1) 请安装于干燥、洁净、牢固的场所。
(2) 请垂直安装。允许倾斜角度在 30°以内。 （Fig.1）
(3) 导轨安装型可装于 35mm 安装轨上(符合 IEC60715)。 安装轨平面布置见 Fig.2。 装、
卸方法见 Fig.3。
(4) 有 4 个安装孔的场合，选取对角线上的两个孔进行安装。
(5) 务必请拿起本体进行安装。 请不要拉住与交流接触器连接的电阻线进行安装， 因为
有引发断线，破损的可能。
4. 安装空间（Fig.4, Fig.5）
(1) 安装间隙需在 Table 1 尺寸以上。
(2) 紧密安装时(连续通电和高频通断的产品视同紧密安装)， 根据使用条件有可能因温
度上升而造成线圈寿命降低。 在此种条件下使用时， 推荐使用时产品间的间距大于
5mm。
(3) C 尺寸是在 IEC 标准及 GB 标准的接通、分断容量试验条件下的值。
INSTRUCTION MANUAL
INA-F05184833c-CE
能效值
吸持功率(ＶＡ) 能效等级
9.0 3
13.4 2
14.3 2
警告
注意
° °
30 30 30
Fig.1
Fig.3
B A
接地金属
Ground
plate
Fig.4
Safety Precautions
To ensure proper use of the product, be sure to read this manual and the other attached
documents carefully before starting installation, operation, maintenance and inspection.
Within this instruction manual, safety precautions are ranked, in order of importance, as
either"Warning" or "Caution".
Indicates a potentially hazardous situation, which, if not avoided, could
WARNING
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
CAUTION
result in minor or moderate injury and/or damage to the equipment.
Under certain conditions, improper operation may result in serious injury and/or damage
even if it is labeled only as "Caution". Every item indicated by either "Warning" or "Caution"
should be considered significant. Be sure to give particular care to those items.
Do not touch the product or approach it when power connected. Electric shock
●
or burns may result.
Turn off the power before starting maintenance or inspection. Failure to do so
●
may result in electric shock.
Install the product in space more than being provided by this manual. Failure to
●
do so may result in fire or burns.
For wiring, select wire size suitable for the applied voltage and current. Burns
●
may result. Tighten wires with the tightening torque specified in the instruction
manual. Failure to do so may result in fire.
Do not touch the product immediately after the power is turned off. As it may
●
still be hot, burns may result.
Remove neither head-on unit nor the resistance wire from the main body of a
●
magnetic contactor. Failure to do so may result in fire.
For wiring, make sure that the phase sequence of the resistance wire is correct
●
according to the internal circuit diagram. (Fig.8) Failure to do so may result in
short-circuit.
Treat the product as industrial waste when discarding.
●
1. Unpacking
(1) Check that the type, coil voltage and contact arrangement match the requested
specifications.
(2) Make sure that no parts have been lost or damaged.
2. Storage
Store the unit in the packing box. Do not store the packing box in a location subject to
high temperature, high humidity, corrosive gas, or direct sunlight.
3. Mounting
(1) Mount in a dry, clean and stable location.
(2) Mounting on a vertical surface. The product must not incline more than 30゜. (Fig.1)
(3) The rail mounting type can be attached on a standard 35mm IEC60715 mounting rail.
See Fig.2 for mounting of the rail on the panel, see Fig.3 for attachment and removal of
products.
(4) If products are provided with four mounting holes, use any two mounting holes on a
diagonal line.
(5) Be sure to life the body of the magnetic contactor and mount it. Do not mount the
magnetic contactor with the connected resistance wire lifted. Doing so may result in
breaking of wires or damage to the product
4. Mounting space（Fig.4, Fig.5）
(1) Mount the products at a distance of at least that shown in the Table 1.
(2) When units must be installed very closely, the temperature may rise in some conditions
(i.e. the power is continuously supplied for a long time or units that frequently do
switching are installed very closely), and it may shorten the life of the coil. Thus, when
installing units very closely, it is recommended to install the units 5 mm or more apart.
(3) Dimension C is based on breaking test in close circuit of IEC and GB standard.
° °
30
安装螺钉 M5
M 5 screw
安装间距 : 400mm 以下
Mounting pitch : 400mm or less
Fig.2
Table 1
A
[mm]
0
B
C
接地金属
Ground
plate
Fig.5
WARNING
CAUTION
B C
[mm] [mm]
10 2
飞弧距离
Arc space
接地金属
或绝缘物
Ground plate or
Insulator
