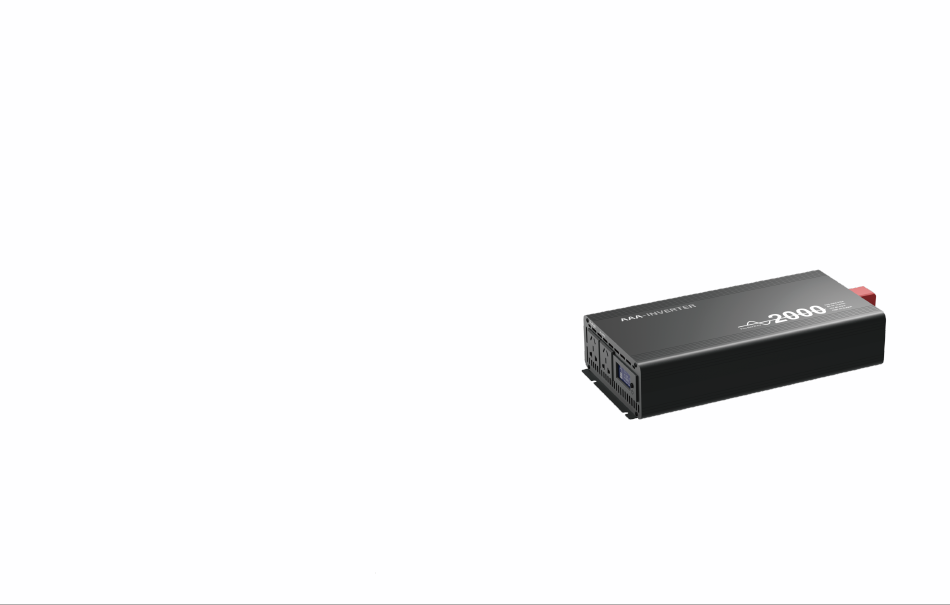

- Page 1 PURE SINE WAVE INVERTER 300W-5000W Multi-function LCD display User Manual...
- Page 2 CONTENTS 1 Preface 2 Matters needing attention 3 Product features 4 Product application 5 Panel description 03-05 6 LCD Display 7 Protection function 7 Product parameters 07-08 8 Installation requirements 9 Wiring requirements 10 Common problems and solutions Please read the instruction manual carefully before use. This manual refers to the graphic reference, whichever is the real thing...
- Page 3 PREFACE FEATURES Dear user： he inverter power supply adopts SPWM technology controlled by MCU First of all, thank you for choosing our pure sine wave inverter.All micro-processing, pure sine wave output, and the waveform is pure. products of our company have undergone strict production control, The unique dynamic current loop control technology ensures reliable quality control and accurate testing and proof, so that all the operation of the inverter.
-
Page 4: Panel Description
PANEL DESCRIPTION PANEL DESCRIPTION POWER:300W POWER:600W-2000W ON/OFF OUTPUT LCD display INVERTER FAULT OUTPUT ON/OFF PAGE PAGE... -
Page 5: Multi-Function Lcd Display
PANEL DESCRIPTION LCD DISPLAY POWER:3000W-5000W Multi-function LCD display Battery Ratio Waveform ON/OFF LCD display Battery Dc Voltage Ac Voltage 100% 100% °C 2028 Overheating Output Frequency Protection 50Hz 60Hz OUTPUT Overload Power Protection Protective function (1) Low-voltage alarm: The buzzer sounds 2 audible with 1 Hz gap. (2) Low voltage protection: The buzzer continuously sounds 3time alarm, with1 Hz gaps (3) Low-voltage recovery: the low-voltage rise automatically restores the output, and the buzzer sounds 3times alarm is cancelled. -
Page 6: Specification
SPECIFICATION： SPECIFICATION： Model CUA-300 CUA-600 CUA-1000 CUA-1500 Model CUA-2000 CUA-3000 CUA-4000 CUA-5000 Output Power Output Power 300W 600W 1000W 1500W 2000W 3000W 4000W 5000W Display method LED Display LCD Display LCD Display LCD Display Display method LCD Display LCD Display... -
Page 7: Use Environment
USE ENVIRONMENT COMMON FAULTS AND SOLUTIONS Install the inverter according to local power requirements. The installation location must be dry, clean and well ventilated. Subject to outside interference The inverter may be affected by some strong electromagnetic waves Working temperature : ‐30°C to 60°C in the use, such as nearby motors, power inverters, strong magnetic fields, etc. - Page 8 All the data are for reference only,please refer to actual data of country/Area Plug style Meal case,good to assemble the follwing output sockets: Australia German Universal France America Italy Brazil PAGE...
