Summary of Contents for AI-Sonic S2-C6.2

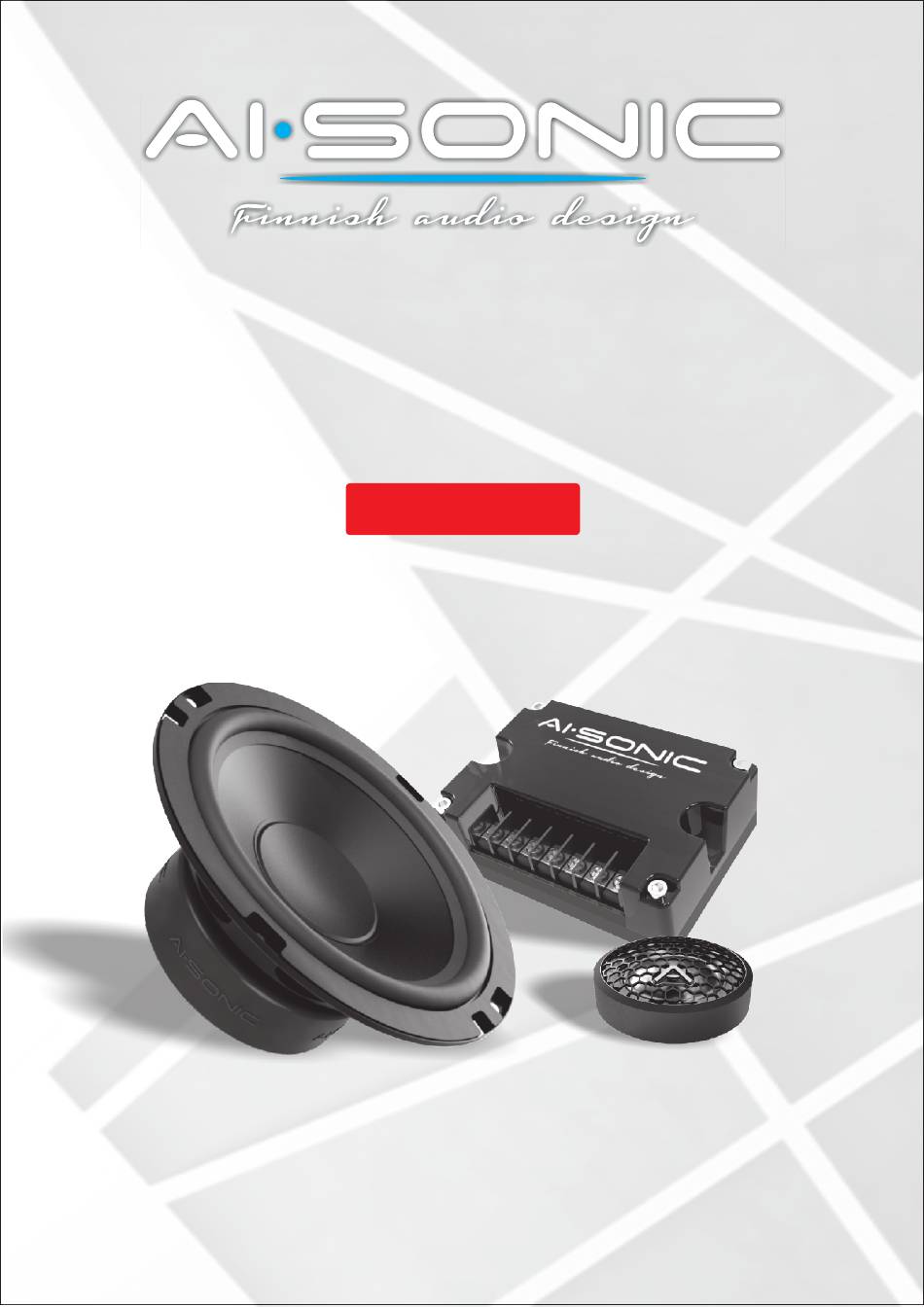

- Page 1 OWNERS MANUAL S2-C6.2...
- Page 2 Introduction Thank you for choosing AI-SONIC product! Finnish AI-SONIC brand is developed by long term car-audio enthusiastics. With our knowhow and passion, we have created product line that meets the needs for both competition and everyday usage. Our team have spent countless hours to make your listening moments as an pleasant experience, and our R&D goal is to produce best possible quality and performance for every price category...
- Page 3 Technical features S2-C6.2 * 6.5" 2-Way Component Speaker System * Black sandblasted Stainless Steel Basket * Black Aluminium Cone Rubber edge * 1.0 inch ASV Voice Coil * 12.6 Oz Magnet Structure * 25mm Silk Dome Neodymium tweeter * 2-way passive crossover Technical specification...
- Page 4 Wiring your system Tweeter level diagram Normal tweeter level S2-C6.2 (0dB) (-3dB) Decrease tweeter level 20Hz 1000Hz 20kHz Frequency (Hz) 2-WAY CROSSOVER INPUT WOOFER TWEETER + - + - + + - -3dB...
- Page 5 Dimensions S2-C6.2 62mm 157mm 165mm 45mm 11mm 56mm 49mm diameter Outer Mounting woofer woofer 165mm 141mm tweeter tweeter 56mm 49mm mounting depth woofer tweeter 62mm 15mm 33mm 106mm...
- Page 6 Tweeter setup These values are recommendations by our own experience. When tweeter is mounted towards listener on axis tweeter level adjustment should be -3dB. When mounted towards center of vehicle off axis tweeter level adjustment should be 0dB. On dashmount off...
- Page 7 Use of sound components can impair your ability to hear necessary traffic sounds and may constitute a hazard while driving your automobile. AI-SONIC accepts no liability for hearing loss, bodily injury or property damage as a result of use or misuse this product.
