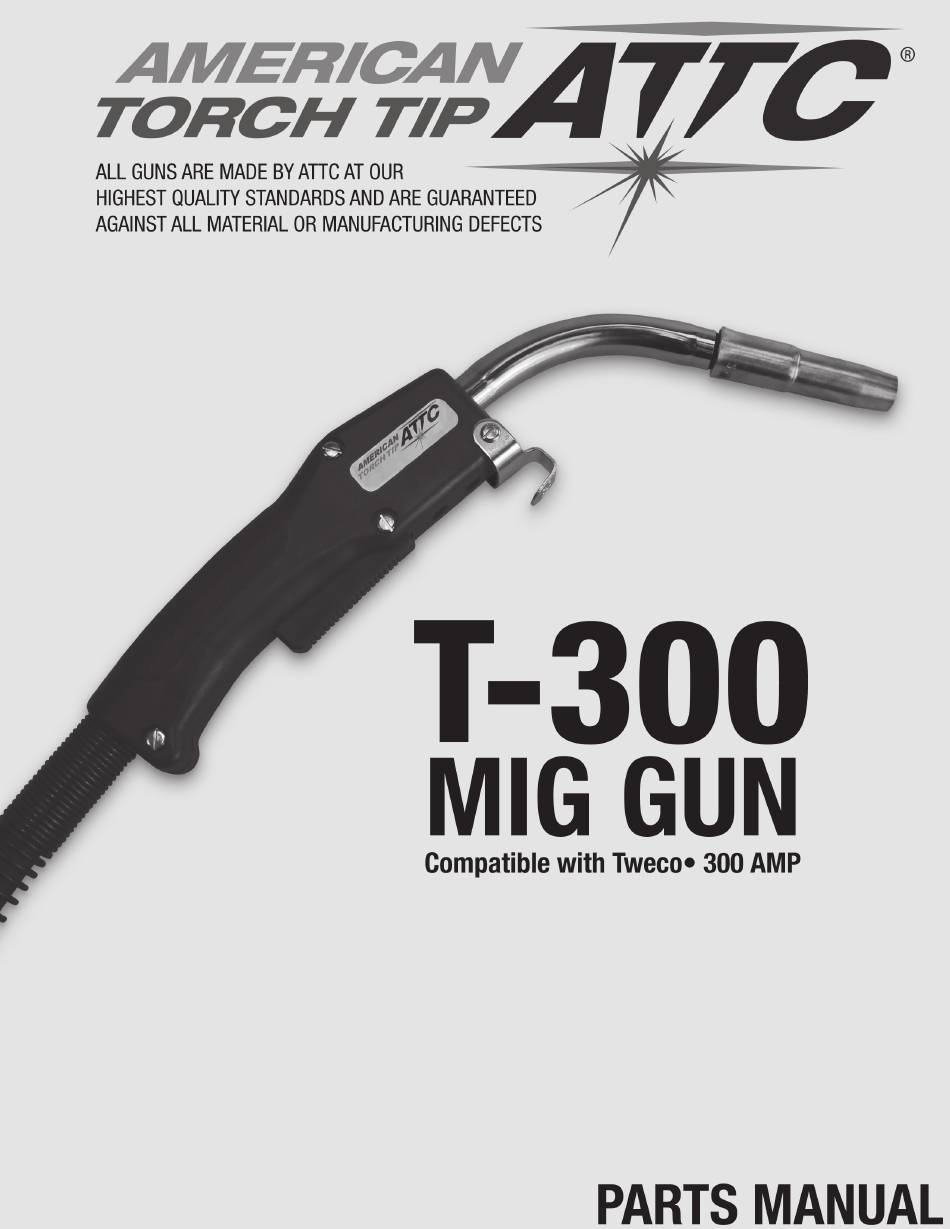

Summary of Contents for American Torch Tip T-300
- Page 1 RATING: 300A C02 225A MIXED GAS @ 100% DUTY CYCLE www.americantorchtip.com .023” 0.6mm TO 5/64” 2.0mm WIRE...
- Page 2 MIG Gun Part Numbering System 300 AMP AT310 - 35 Plugs Wire Size = Tweco 23 - .023 ALN = Lincoln 30 - .030 Length AX = Euro 35 - .035 AM = Miller 40 - .040 10 = 10 ft 45 - .045 Gun Amperage 12 = 12 ft...
- Page 3 Part No. Description Part No. Description 24CT-37-S Nozzle, Coarse Thread, 3/8” I.D. 14-23 Contact Tip .023” 0.6mm 24CT-50-S Nozzle, Coarse Thread, 1/2” I.D. 14-30 Contact Tip .030” 0.8mm 24CT-62-S Nozzle, Coarse Thread, 5/8” I.D. 14-35 Contact Tip .035” 0.9mm 24CT-75-S Nozzle, Coarse Thread, 3/4”...
- Page 4 • Switch housing screws loose • Improper tip shielding • Broken or worn switch lead • Contaminated wire or work piece Family of MIG Guns CONTACT US AMERICAN TORCH TIP CO. 1.800.342.8477 INT’L PH . 941.753.7557 FAX: 941.753.6917 EMAIL: sales@attcusa.com WEBSITE: www.americantorchtip.com...
