Summary of Contents for Decima OKO

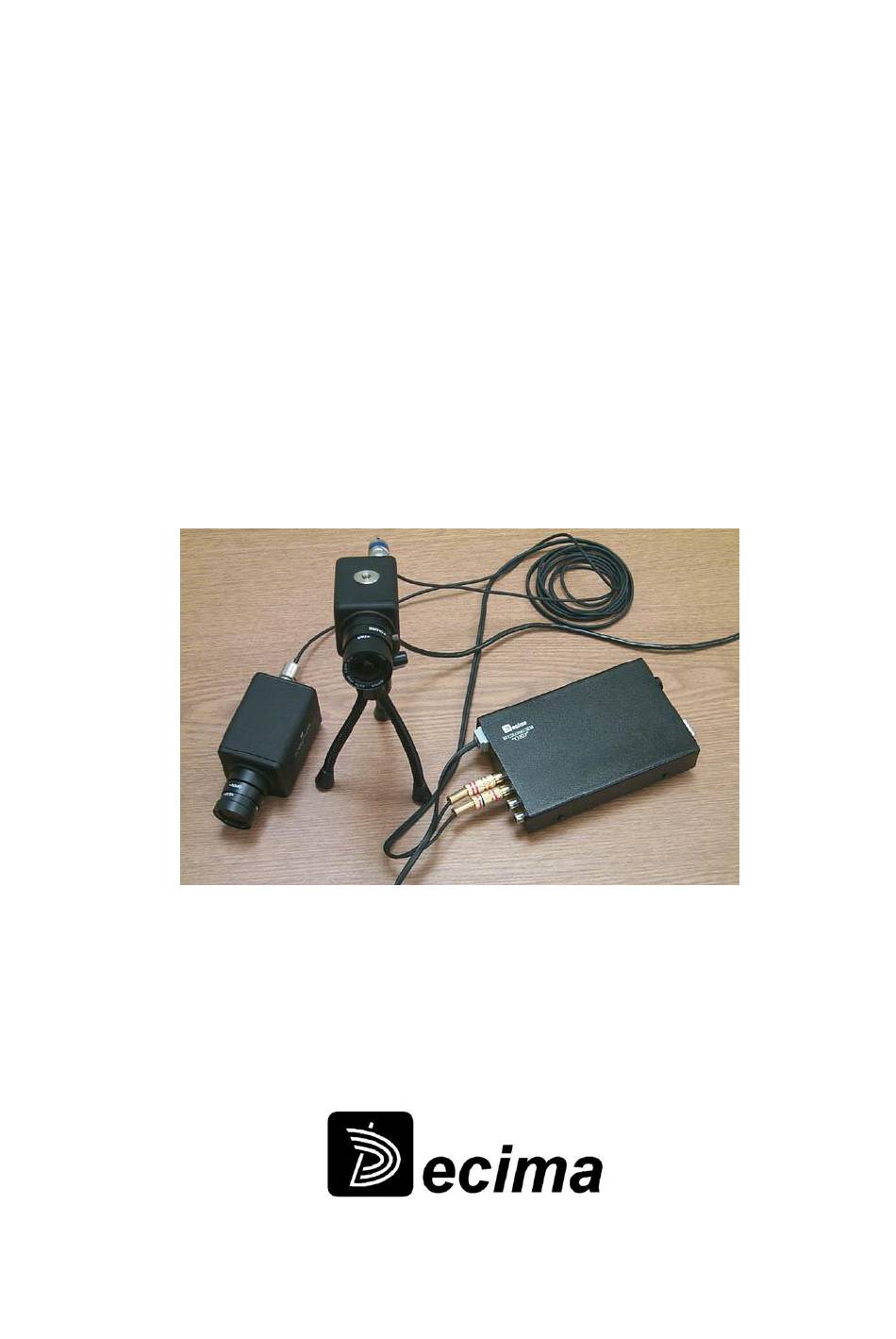

- Page 1 Video modem «OKO» «OKO-M» User’s Guide Release 1.14 124460, Moscow, Zelenograd, South Industrial Zone, proezd 4922, bldg. 1. phone: (095) 530-3486, 532-8319, fax: (095) 531-2036, http://www.decima.ru...
-
Page 2: Table Of Contents
USER’S GUIDE VIDEO MODEM «OKO» Table of contents: 1. Introduction ................................. 2 1.1 Gentral: ................................. 2 1.2 Basic operating modes ..........................2 1.3 Features ................................. 2 1.4 Main areas of application ..........................3 1.5 Basic technical and functional characteristics ....................3 1.6 Supply set .............................. -
Page 3: Introduction
8 selected fragments, record wholly or partially a photo and video information on PC hard disk. Video modem «OKO-M» has a built-in 56 K fax-modem 56 К, whereas video modem «OKO» has only a COM port for direct connection to PC or through an external modem. -
Page 4: Main Areas Of Application
2. Bracket for modem wall mounting. 1 pc. 3. Power supply module BPI-5-1. 1 pc. 4. Cable RS-232 for COM port. 1 pc. 5.Phone cable (only for «OKO-M» model). 1 pc. 6. User’s guide. 1 pc. 7. Software (diskette). 1 pc. -
Page 5: Installation And Connection
USER’S GUIDE VIDEO MODEM «OKO» 2. Installation and connection. 2.1 Installation: о 1. Video modem may be operated in premises with ambient temperature from +5 to +45 C, and relative humidity up to 80%. When transporting in winter conditions before switching on the modem it is necessary to keep it in the factory packing at room temperature for at least 2 hours in order to get it warmed up. -
Page 6: Phone Line Connection (Through Modem)
Set screen resolution in 600 x 800 pixels (recommended) or higher and 16-bit color quality. Insert the supplied diskette into FDD of your PC. Create a new folder, for example, ―OKO‖ and copy monitoring program “meye114.exe” to this folder. Please, take into consideration that video recordings will be saved in this folder, therefore, it must be located on the disk with sufficient amount of free space for saving new files with video recordings. -
Page 7: Setup Connection
If it is impossible to establish connection with the video modem (for example, through the fault of the external modem used), you may make use of mandatory connection through the COM port of your To do this, connect ―OKO‖ video modem using null modem cable to PC СОМ port, then select ―Setup connection‖ command from ―Connection‖ menu. -
Page 8: Adjustment Of The Settings For Modem Connection (Over The Phone Line)
USER’S GUIDE VIDEO MODEM «OKO» Keep in mind that the higher the values of these settings, the less video clips and photo pictures video modem will be able to save in its memory. 3.4.2 Adjustment of the settings for modem connection (over the phone line): Set the number of rings prior the video modem to answer the incoming call when autodial mode is ON (Fig. -
Page 9: Selection Of The Snapshot Fragment To View
USER’S GUIDE VIDEO MODEM «OKO» In the frame “Adjustments” carry out optimal adjustment for the quality if the image received. All the settings take effect immediately upon pressing ―Apply‖ button without closing this dialog box. Use this feature for instantaneous control of the changed made. -
Page 10: At Permanent Monitoring
USER’S GUIDE VIDEO MODEM «OKO» 3.6.1 At permanent monitoring: In this mode immobile photo picture is displayed on the screen of your PC, which changed over on ―Activation‖ event for this mode is fired. Activation event takes place when exceeding the triggering threshold to motion (image change percentage in the snapshot), AND/OR through activating an external sensor, connected to the video modem (see. -
Page 11: Saving The Current Configuration
Fig.9 3.9 Saving the current configuration: To ensure possibility of using all the parameters set with other “OKO” video modems specify the name for the configuration and press ―Save‖ button. To close the window press ―OK‖ (with altered parameters) or ―Close‖. -
Page 12: Photographing
USER’S GUIDE VIDEO MODEM «OKO» quickly change the scale of the image, and by pressing button you may start recording video image (see p. 3.12.1 next). 3.10.1 Photographing: By pressing button you will take photo of the current image (as for settings for photographing, refer to p. -
Page 13: Recording And Viewing Video Information
USER’S GUIDE VIDEO MODEM «OKO» Fig. 13 Contrive and enter the name of the new configuration. Set the splitting of the full screen in 2 x 2 or in 4 x 4 depending on the number of the video channels desired to be viewed. -
Page 14: Viewing Video Information
USER’S GUIDE VIDEO MODEM «OKO» 3.12.3 Viewing video information: From ―file‖ menu of the main window (Fig. 2) choose View recordings‖ command. New window named ―Opening video recording‖ appears on the screen, Fig. 14. Select the name of connection and the number of the video channel recordings from which you want to view. -
Page 15: Callback
USER’S GUIDE VIDEO MODEM «OKO» Fig. 16 The photos will be saved in JPEG format in the subfolder with the name of the current connection, located in the folder from which the program was run. The name of the file with photo contains information on date and time of shooting: channel number—year-month-date—hour-min-sec. -
Page 16: External Input (Grey Terminals)
USER’S GUIDE VIDEO MODEM «OKO» Terminal for connection of the external devices Power connector RS232 connector Fig. 19 3.15.1 External input (grey terminals): Terminal 1: permanently connected with the case of the device and with the negative power lead. -
Page 17: Correction Of Time
USER’S GUIDE VIDEO MODEM «OKO» 3.17 Correction of time The video modem has built-in timer/real time clock. Time reading disrupts in case of power supply failure. To view and correct the video modem time choose ―Correction of time‖ command from ―Coder‖... -
Page 18: Troubleshooting
5. Registration: To receive information on new releases of software for the ―OKO‖ video modem and news concerning products from ―Decima‖ by email send a letter with request to put you on our Mailing List to the email address vit@decima.ru. -
Page 19: Warranty
USER’S GUIDE VIDEO MODEM «OKO» 6. Warranty: The manufacturer guarantees operability of the product providing the buyer observes terms and conditions of storage, transportation and operation, established in design documentation, and uses the product in accordance with this user’s guide. -
Page 20: Warranty Coupon
USER’S GUIDE VIDEO MODEM «OKO» WARRANTY COUPON Video modem «OKO» model _____________________, manufacturing date «___» ________________ 200__. sell date «___» ________________ 200__ . ID. No. ___________, Seal The product is tuned and checked, password for connection _______, ____________, seller’s signature The product is checked in my presence, no claims for my part _______________ .
