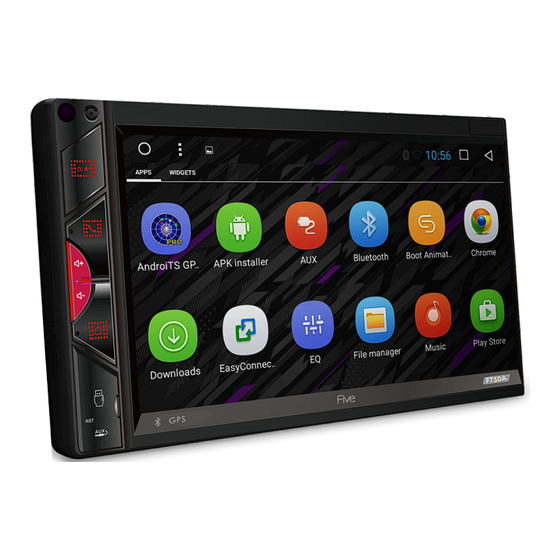

- Page 1 R O M 6.9" Phone A N D R O I D 9 . 0 G P S...
-
Page 3: Table Of Contents
Precautions Please read before using F720A front panel description F730A front panel description Main menu Radio Bluetooth (phone) Bluetooth music Settings Steering wheel control settings Video playing menu Audio playing menu File manager Easy Connection Mode Navigation Sound settings Web browser... -
Page 4: Precautions
P R E C O U T I O N S A T T E N T I O N ! If you encounter any difficulties in operating the device, contact an authorized service center. The device has a built-in liquid crystal monitor, so be extremely careful when transporting and installing it. -
Page 5: Please Read Before Using
P L E A S E R E A D B E F O R E U S I N G In order to improve traffic safety, do not distract your attention by performing complex system control operations. Any operations requiring increased attention of the driver should be performed only after the vehicle has come to a complete stop in a safe place. -
Page 6: F720A Front Panel Description
F 7 2 0 A F R O N T P A N E L D E S C R I P T I O N F720A 1. Microphone (used for Bluetooth) 2. Encoder - volume control 3. Bluetooth communication button, answer incoming calls 4. -
Page 7: F730A Front Panel Description
F 7 3 0 A F R O N T P A N E L D E S C R I P T I O N F730A 1. Microphone (used for Bluetooth) 2. Button on / off the receiver / mute sound MUTE 3. -
Page 8: Main Menu
M A I N M E N U When you turn on the device, the main page is loaded by default. For selection the function or application you are interested in, click the corresponding icon. Main functions: 1. Navigation 2. Bluetooth 3. - Page 9 To create a link on the main screen, touch the icon, and hold, drag to an empty space on the home screen. In app mode to change pages touch the display and slide your finger across the display left or right to select desired mode. Top panel (status bar) MAIN page Back...
-
Page 10: Radio
Device keyboard Input on the virtual keyboard is done in the same way as on the physical one. To change the language, press or hold: R A D I O This receiver is equipped with a high quality radio that supports reception in band FM/AM with automatic band scanning, frequency indication the received radio station, etc. - Page 11 Stereo mode (ST) We recommend using stereo mode if reception is good. When moving away from the city, the reception starts to deteriorate, and noise appears. In some cases, switching to mono mode (by touching the icon in the settings) can reduce interference and improve reception. Local Mode (LOC) When this mode is on, only stations with a good signal level will be stored.
-
Page 12: Bluetooth (Phone)
B L U E T O O T H ( P H O N E ) To go to the Phone application on the main menu, touch the “Phone” icon. Or press the button (2) on the front panel. After completing the pairing, the BT icon on the screen will change color from gray to white. -
Page 13: Bluetooth Music
B L U E T O O T H M U S I C Touch the icon in the application menu to go to the audio player. Receiver supports the Bluetooth A2DP protocol. Use icons to control: previous track, play / pause, next track. The head unit will play tracks saved on a connected device that supports the Bluetooth protocol A2DP. -
Page 14: Settings
S E T T I N G S To enter the mode, touch the "Settings" icon. The settings available to the user allow you to adapt the device to individual preferences both in terms of sound quality and communication, and in a wider range. More you can get detailed information about the settings by reading the description to the publicly available Android system. -
Page 15: Steering Wheel Control Settings
S T E E R I N G W H E E L C O N T R O L S E T T I N G Customizing the steering wheel buttons interface To adjust, touch the "Steering Wheel" icon on the APP screen. Please follow the steps below to set the features of the control buttons on your steering wheel. -
Page 16: Video Playing Menu
V I D E O P L A Y I N G M E N U To view the video files, click on the icon of the “Video” application. Playback possible video files both from the device memory and from external drives (USB). The device supports playback of H.263 P3, MPEG-4, H.264 / AVC codecs, etc. -
Page 17: Audio Playing Menu
A U D I O P L A Y I N G M E N U To listen to music, click on the "Music" icon on the main menu. Track playback possible both from the device memory (iNand) and from external drives (USB). The device supports playback of most popular formats MP3, M4A, WAV, AMR, WMA, OGG, AAC, FLAC, MID, etc. -
Page 18: Easy Connection Mode
Installing third-party applications To install the application, download the APK file of this application and copy it on USB stick. Then launch the application on the head unit for installation. ATTENTION! The user bears full responsibility for incorrect operation head unit after installing third-party applications. -
Page 19: Navigation
Turn on "Easy Connected", touch “How to connect?” and follow the instructions displayed on the screen head unit. When working with a device on OS Android, a "two way" algorithm is implemented. It becomes possible to control the smartphone using the head unit. When working with an iOS device, a "one way"... -
Page 20: Sound Settings
S O U N D S E T T I N G S To enter the sound settings, use the EQ icon from the app menu. The settings interface offers two screens with EQ settings. DSP setup screen provides access to digital 18/12 band equalizerwith seven preset modes: Smooth, Jazz, Classic, Rock, Pop, Standard, Custom(user-saved preset). -
Page 21: Web Browser
In addition, in the main settings of the device, by clicking on the "Sound" icon, the user can use the option to set the media volume level. You can also set the desired sound of listening Notification and Alarm sound. W E B B R O W S E R By default, the device has the Chrome browser installed. -
Page 22: Google Play Market
G O O G L E P L A Y M A R K E T To enter the application, use the "Play Store" icon in the application menu. Pay attention: when you download the app, your device must have a reliable Internet connection via WiFi or 3G Installing free apps Click on the app you want to install. -
Page 24: Remote Handset
Press repeatedly to select the desired mode for operation. Press to enter EQ. Press to upward or downward. dial out a call. Enter video directly. Press to input on bluetooh mode. Press to input on bluetooh mode. -
Page 25: Wiring Diagram
W I R I N G D I A G R A M Bluetooth Antenna and WIFI Antenna(gray) BRAKE(blue/white): brake detect CAMERA(yellow): rear camera input FCCD(pink/black): front camera power NO Function SIM card slot LINE OUT SUB WOOFER(green): subwoofer output RCA OUT L(white): front left speaker output RCA OUT R(red): front right speaker output RCA RL OUT(white) :rear left speaker output... -
Page 26: Specifications
S P E C I F I C A T I O N S OS: Android 9.0 Cortex A7 Quad Core 1.6GHz RAM DDR3 2GB Internal memory: 32G Capacitive LCD 6,9" Display resolution 1024X600 pix. 24-bit color rendering FM frequency range 87.5 - 108 MHz Usable sensitivity (20 dB) 15 dB Signal-to-noise ratio, not less than 48 dB Frequency Response (+/- 3dB) 30Hz-15KHz... -
Page 27: Troubleshooting Guide
T R O U B L E S H O O T I N G G U I D E Issues Cause Action (Reference) The car key is not inserted Insert the car key and turn on the ACC or ACC is not turned on Unable to power on The power cord is not connected Connect the power cord correctly... - Page 28 T R O U B L E S H O O T I N G G U I D E Issues Cause Action (Reference) The navigation system sets a route to your destination by applying certain built-in rules to the map data. Besides, distance, the navigation system will take into Navigation routes consideration of the road grade, traffic rules, flyover, highway, main road and are far...
-
Page 29: Simple Trouble Shooting
S I M P L E T R O U B L E S H O O T I N G No power - Check and make sure the connecting wires are connected correctly - Check whether the fuse is blown. Replace with the proper value fuse if necessary. No sound - Check and make sure the speaker wires are connected correctly. - Page 32 ENERAL DISTRIBUTOR "LLC OmegaUSA" www.five-usa.com +1 585-209-5352 Customer service dealer@five-usa.com PRODUCED BY“AUTOTEK INDUSTRIAL LIMITED” 1318-19,13/F, HOLLYWOOD PLAZA, 610 NATHAN ROAD, MONGKOK, KOWLOON, HONG-KONG, CHINA MADE IN P.R.C.
