Summary of Contents for DL SILENT 2400

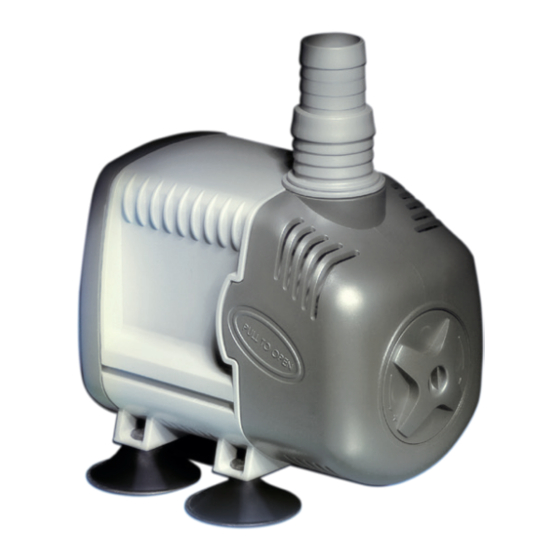

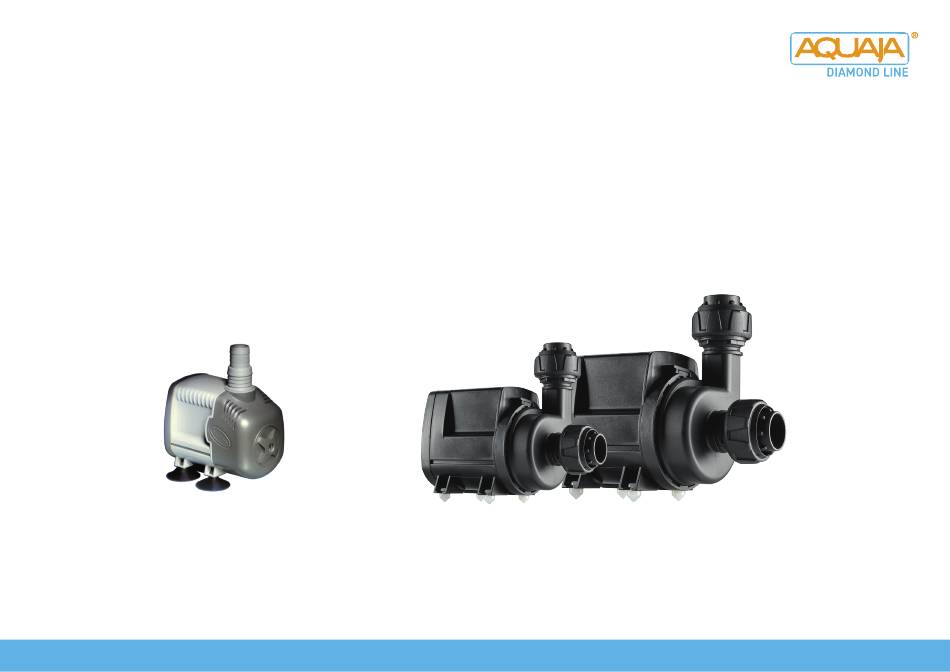

- Page 1 DL SILENT 2400 +5500 +7000 INSTRUCTION MANUAL · EN...
-
Page 2: Warranty
SEAL AND SIGNATURE OF RESALE DEALER DATE OF PURCHASE ____ / ____ / ____ WARRANTY month year DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN... -
Page 3: Safety Instructions
Dear valued Customer, thank you for choosing DL SILENT pumps which are highly efficient products developed and manufactured in Italy to meet the highest quality and performance requirements. DL SILENT pumps are ideal to be used in marine and fresh water aquariums, decorative fountains, protein skimmers, and water-cooling systems. They can be used fully submersed or for inline (external) applications. - Page 4 2) Place the pump in an area easily accessible for the maintenance operations. 3) If the pump is used submersed and not in line, it must be always fully submersed. (Pic. A-B) DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
- Page 5 Do not use the pump leaving the outlet totally closed. A minimum water flow is necessary to keep the inner motor cool without running dry (Pic. F). IN LINE DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
-
Page 6: Maintenance
In this case it is recommended to substitute them. Rinse each part with water, using a soft brush to remove the deposit. Then assemble everything in the inverse order. DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN... - Page 7 40 W 55 W C O-rings Cable lenght 3.0 m D Anti-vibration rubber feet E Turning pre-chamber F Pre-filter grid G Hose fittings for rigid & flexible pipes DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
- Page 8 Remove the volute of the pump by turning and simultaneously pulling forward (in the case of fouling this may take more pressure). H Pull out the complete rotor set (Pic. K). O-RING 1 O-RING 2 DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
- Page 9 ATTENTION: do not underestimate the power of the magnet. If you slightly loose the grip and the axis hits the rear bearing, the risk to damage the bearing is very high. A damage axis and bearing causes high reparation costs. (Pic. M) RIGHT SIDE DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
- Page 10 The guarantee is also void in absence of the cash register receipt or similar document. The shipping cost to and from the factory, or the repair station, have to be paid by the buyer. DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN...
-
Page 11: Special Features
SPECIAL FEATURES DL SILENT · 2400 · +5500 · +7000 INSTRUCTION MANUAL · EN... - Page 12 DL SILENT 2400 +5500 +7000 INSTRUCTION MANUAL · EN...
