USER MANUAL

LAWNMOWER

BEFORE OPERATING THIS APPLIANCE

PLEASE READ THESE INSTRUCTIONS CAREFULLY

Disclaimer: Due to constant upgradation, features and specifications are subject to change without notice

Table of Contents

Need help?

Do you have a question about the Mirage 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALRITE Mirage 3000

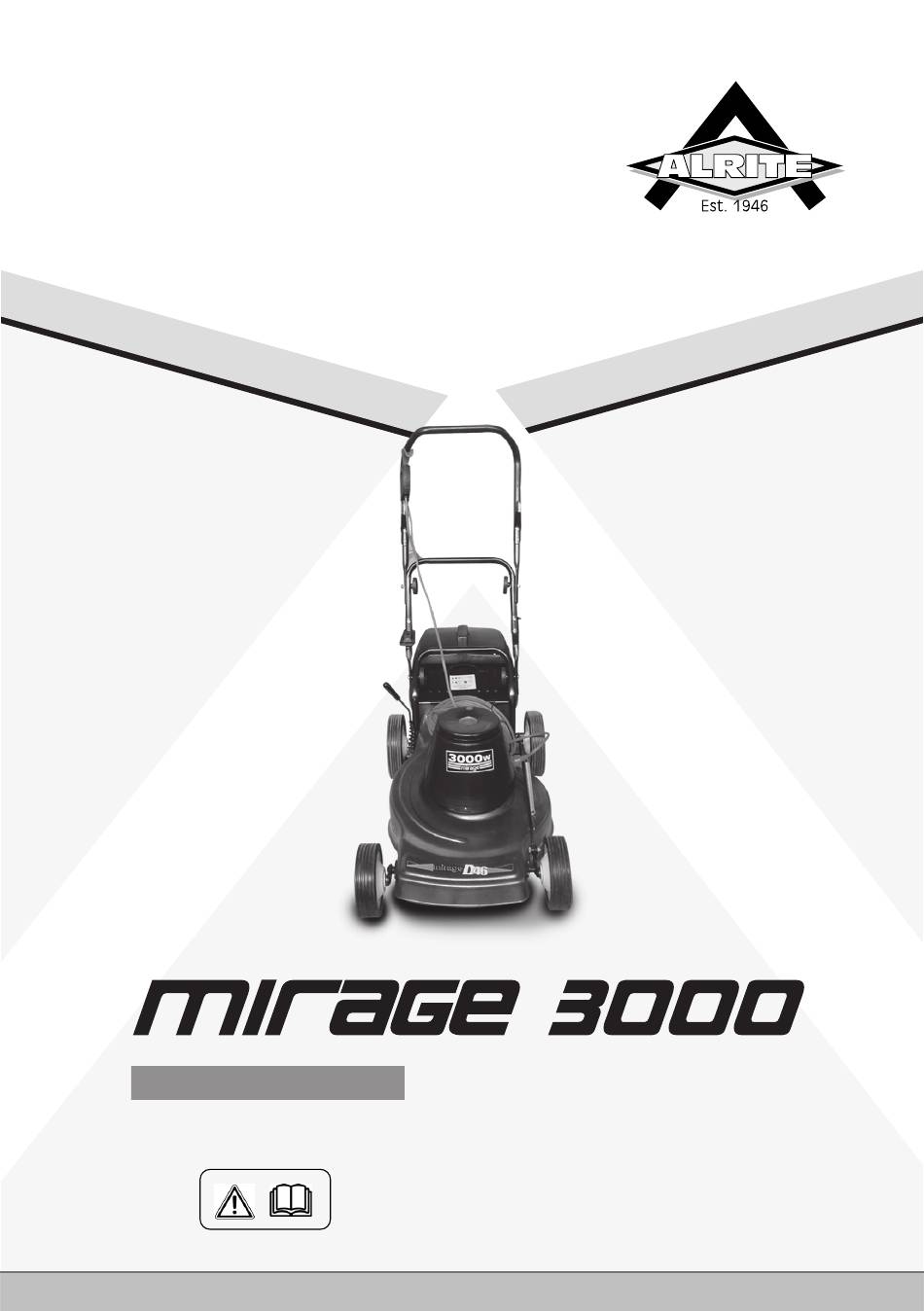

Page 1 USER MANUAL LAWNMOWER BEFORE OPERATING THIS APPLIANCE PLEASE READ THESE INSTRUCTIONS CAREFULLY Disclaimer: Due to constant upgradation, features and specifications are subject to change without notice...
Page 2: Instruction Label
1. Chassis 2. Motor 3. Blade 4. Stone Deflector 5. Grass Catcher 6. Handle 7. Throttle control INSTRUCTION LABEL DO NOT OPERATE WITHOUT EITHER STONE GUARD OR GRASS CATCHER IN PLACE Important : Read the instruction handbook before using the machine Warning: Remove the spark plug and read instructions before carrying out any repair or maintenance...
Page 3: Routine Maintenance
ROUTINE MAINTENANCE After work has been carried out on blade, reassemble as shown in the drawing, tightening the central screw (1) to 4 - 4.5 kgm Check the oil level and top up as per the instructions in the engine handbook. Oil the wheel axles.
Page 4: Grass Cutting
GRASS CUTTING The lawn’s appearance will be improved if it is always cut to the same height and is cut in alternate directions. Once cutting is finished, wait for the blade to stop before carrying out any type of work on the machine.
Page 5: Safety Regulations
SAFETY REGULATIONS TO BE FOLLOWED CAREFULLY TRAINING Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn how to stop the engine quickly. Only use the lawnmower for the purpose for which It was made, that Is, the cutting and collection of grass.
Page 6: Operation
OPERATION Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect. Mow only in daylight or good artificial light. Avoid operating the equipment in wet grass or when raining. Always be sure of your footing on slopes. Walk, never run and do not allow yourself to be pulled along by the lawnmower.
Page 7: Maintenance And Storage
Every time the grass catcher is removed or replaced. 20) Reduce the throttle setting during engine shut down and turn the fuel off at the conclusion of mowing, following the instructions contained in the engine handbook. 21) When mowing always keep a safe distance from the rotating blade. This distance is the length of the handle.
Page 8: Handle Assembly
FITIING THE GRASS CATCHER To fit the grassbox simply raise the rear safety flap using the handle provided. Insert the lower lip of the grassbox Into the aperture. Tilt the grassbox forward and allow the lip of the safety flap to latch onto the lip at the top of the grassbox. To remove’the grassbox simply raise the safety flap and lift the grassbox out.
Page 9 ALRITE ENGINEERING MIRAGE SERVICE DEALER SPARES LIST ALRITE MIRAGE 3000 LAWN MOWER DIAGRAM & SPARE LIST PARTSLIST D46 ELECTRIC ITEM NO. PART NO. DESCRIPTION Part Part LID MOTOR COVER DESCRIPTION DESCRIPTION COVER MOTOR E5ATB FAN - ATB FAN - FEMCO...
Page 10: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure a three-month clean the machine. Before working, make sure inspect the filter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine need to be repaired in the guarantee period, please return the machine to the shop.
Page 11 CUSTOMER COPY Warranty Card Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name Alrite Mirage 3000 Lawn Mower Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
Page 12 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
Page 13 ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number Alrite Mirage 3000 Lawn Mower PDI Date Service No. Operations: • Check and Test the Fuel Mixture. • Check and Clean the Air Filter Purchase bill no.
Page 14 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
Page 15 • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
Page 16 The Little Champion for Gardens. The Little Champion for Gardens. Heavy Duty Electrical Lawnmowers. Heavy Duty Electrical Lawnmowers. RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care: 1800-425-3036 Email: marketing@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
