Mustang Tattoo Expert Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Expert Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mustang Tattoo Expert Series

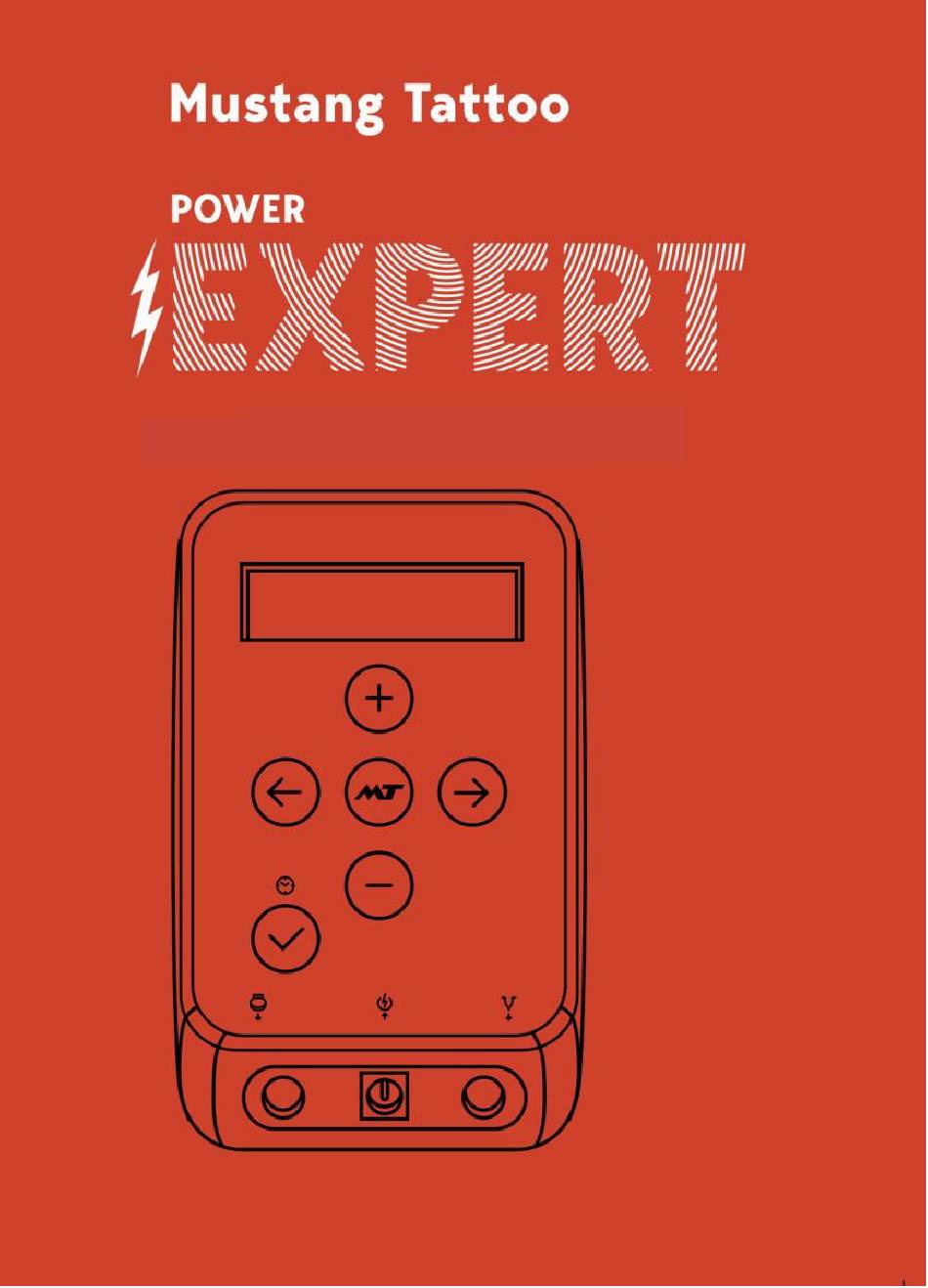

  • Page 1 USER'S MANUAL...

  • Page 3: Table Of Contents

    Introduction Appointment 2 — 3 Equipment 2 — 3 Mount 2 — 3 Characteristics Operations Display Beginning of work Settings 8 — 11 Menu skin selection 12 — 13 Possible malfunctions 14 — 15 Warranty Contacts...

  • Page 4: Mount

    Congratulations on your purchase of the power equipment. We appreciate your choice! The intelligent power supply Expert is designed to improve the efficiency of the work on the tattoo. Its advantages are reliability, ease of setup, stability and maximum func- tionality, despite its compact size.
  • Page 5 Keyboard Tattoo machine connection...
  • Page 6 - Ability to control the machine without a pedal. - Short circuit protection. - Sleeping mode. - Module for working with a wireless foot control MT Mustang Tattoo (up to 128 connection options) - Sound / key tone and display brightness settings.
  • Page 7 Increase or decrease voltage, move between menu items. Setting the hours and minutes, switching modes, choosing the menu shell, the number of machines, currency, brightness, key tone, language. Pressing and holding will put the device into sleep mode. Pressing simultaneously - go to the settings menu. Save settings and exit to the main screen.
  • Page 8 The power supply is equipped with a monochrome display with a blue indi- cation. The screen always displays the operating voltage and the previously selected memory cell. The rest of the parameters depend on the screen shell.
  • Page 9 The power supply turns on automatically when plugged in. To access the settings menu, simultaneously press and hold the "left" and "right" keys To select a specific menu item To save the settings and exit...

  • Page 10: Display

    Select the operating mode for the induction / Mode: rotary machine with the "left" and "right" keys Press "left" or "right" to enable or disable auto Auto: detection Adjustable with the "left" or "right" buttons Display brightness: Select the item and set the clock using the Time - clock: "LEFT"...
  • Page 11 Show STL: To disable / enable the mode, press the "left" and "right" keys Switch between speeds - buttons "left" / Output speed: "right". There are 4 speeds of information output: slow, medium, fast and maximum Press the left or right key to adjust Key sound:...
  • Page 12 8 tone levels. Press "left" or "right" to Key tone: select ” Price: The function allows you to calculate the hourly cost of the session. Decrease / increase rate - buttons "left" or "right" Units: Press "left" or "right" to select currency Software version Version: The total running time of the...

  • Page 13: Settings

    SETTINGS Language: Press "left" or "right" to select the navigation language Exit: Press to exit to the main screen Pedal Sticky: In Home screen mode, press and hold the key to turn sticky on or off. When the mode is on, an "m" icon is dis- played on the screen.
  • Page 14 In Home screen mode, press and hold "Right" to select one of the four screen skins. Working voltage, time and memory cell are on the left side of the screen, on the right - frequency, load, operat- ing mode of the machine, current value The working voltage is displayed in large size, in small print - the price, the duration of the session, the operat- ing time of the machine, the clock, the memory cell.
  • Page 15 The clock is large in the upper part, under it is the volt- age, the duration of the session, the operating time of the machine, the memory cell. The screen displays only operating voltage, memory cell.
  • Page 16 Carefully check all connections: connectors, wires, socket. Solution: Screen flickers while output power ripple. Problem 2: Solution: Contact MT Mustang Tattoo Authorized Service Center. The power adapter is most likely defective. Problem 3: Power is on but no signal is being sent to the tattoo machine.
  • Page 17 The power supply unit does not respond to Problem 4: pressing the pedal. Press the center button. See if there is Solution: a change on the display? Does the display change when you press the pedal? It is possi- ble that the wire or tattoo machine is faulty. Try using a different wire or tattoo machine.

  • Page 18: Warranty

    The warranty is 1 year, and 5 years for the corpus of power suplly unit. ATTENTION! The official guarantee comes into force after registration on the website www.mustang-tat- too.com/guarantee. You must register within 30 days from the date of purchase. Warranty exclusions —...

  • Page 19: Contacts

    This warranty covers factory failures, but does not cover wear and tear on equipment and its parts as a result of proper or improper use. Within three months after purchase, the product can be ex- changed for a similar model. Return is allowed within two weeks.

This manual is also suitable for:

Expert sensorPbe s
