Artesan Hapi8 Assembly Manual

Double door quadrant

Download this manual

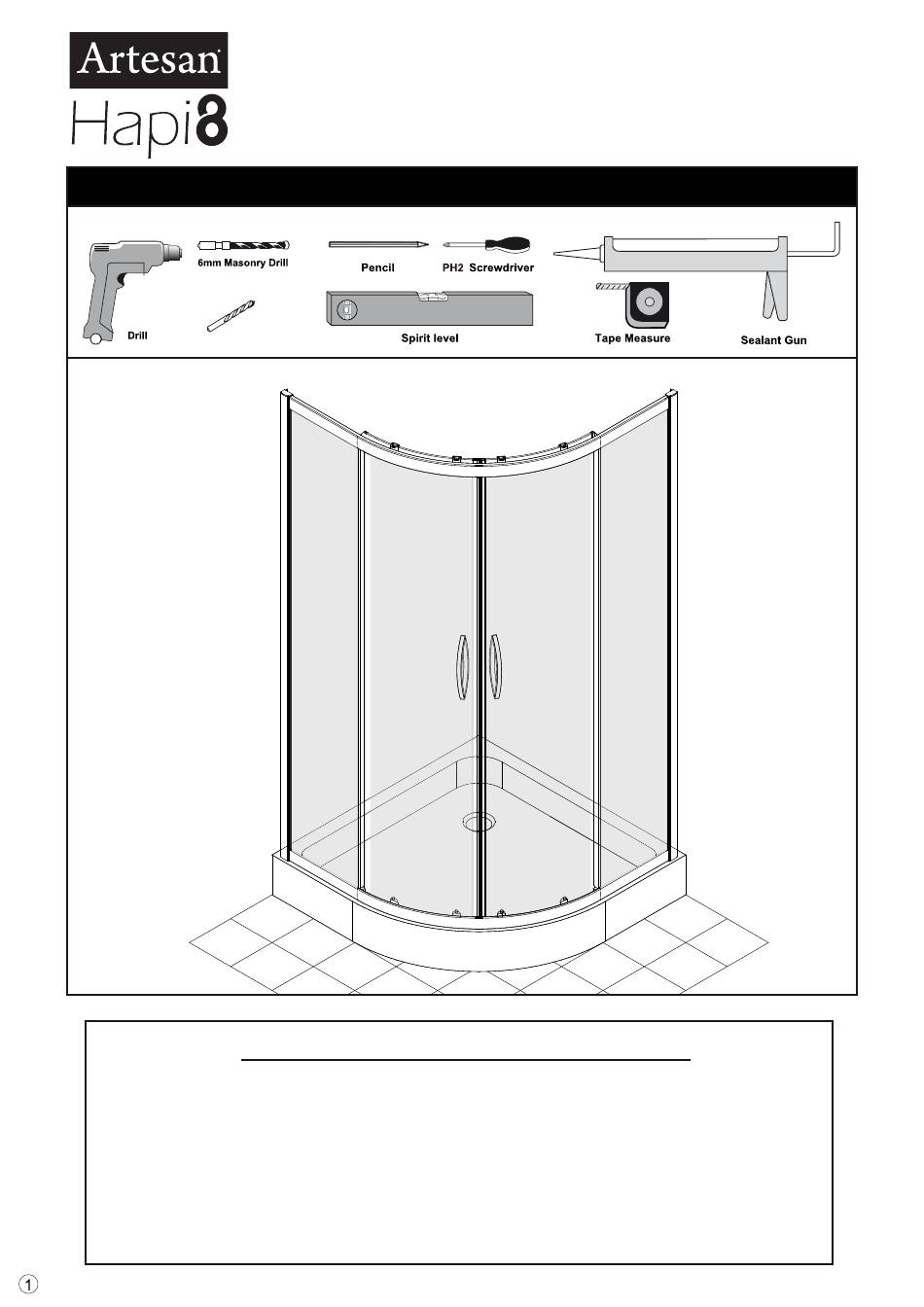

ASSEMBLY GUIDE

DOUBLE DOOR QUADRANT

Tools Required (not supplied)

2.75mm Drill bit

Important Safety/Assembly Instructions

This product should be installed by a suitably qualified and proficient person. The fitting instructions should

be followed carefully to ensure a proper and safe installation. Failure to follow these instructions could

result in future injury.

These instructions and list of parts assume that installation is done against solid/tiled walls.

Please check this product for damage prior to starting the installation. No claims can be made after the

product has been fitted.

PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based

on perfectly plumb walls and trays.

Need help?

Do you have a question about the Hapi8 and is the answer not in the manual?

Page 1 ASSEMBLY GUIDE DOUBLE DOOR QUADRANT Tools Required (not supplied) 2.75mm Drill bit Important Safety/Assembly Instructions This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future injury.
Page 2 Item Descrip on Image Wall Channel Top and Bo om Proﬁle Magne c strip Ver cal seal - 1880mm Ver cal seal - 1810mm Gasket Wall Plug Screw ST3.5×30 Screw ST4×12 Handle Top Roller Bo om Roller Cover Strip Cover Clip Screw Cap Standard Wall Proﬁle Cap - LH Standard Wall Proﬁle Cap - RH...
Page 3 Place the wall profiles onto the enclosure. Position the enclosure onto the tray. Ideally the enclosure should be positioned 10mm from the edge of the tray as shown. Centralize the enclosure onto the tray top rim and position vertically plumb using a spirit level. Mark the position for fixing the wall profile using a pencil or a water soluble pen as shown.
Page 4 Tips - In cold weather the seal may be more difficult to fit. In this case it is advisable to warm the seal in some warm soapy water to make it more pliable. Applying Silicone Sealant 24 HRS Sealing Inside Seal from the top of the wall profile to the bottom on INSIDE between the wall profile and the wall.
Page 5 Artesan ¨ Artesan ¨ PureGLAZE PureGLAZE...
