Solar panel &
mounting bracket
Mayfly Data Logger
EnviroDIY Monitoring Station
LiPo Battery

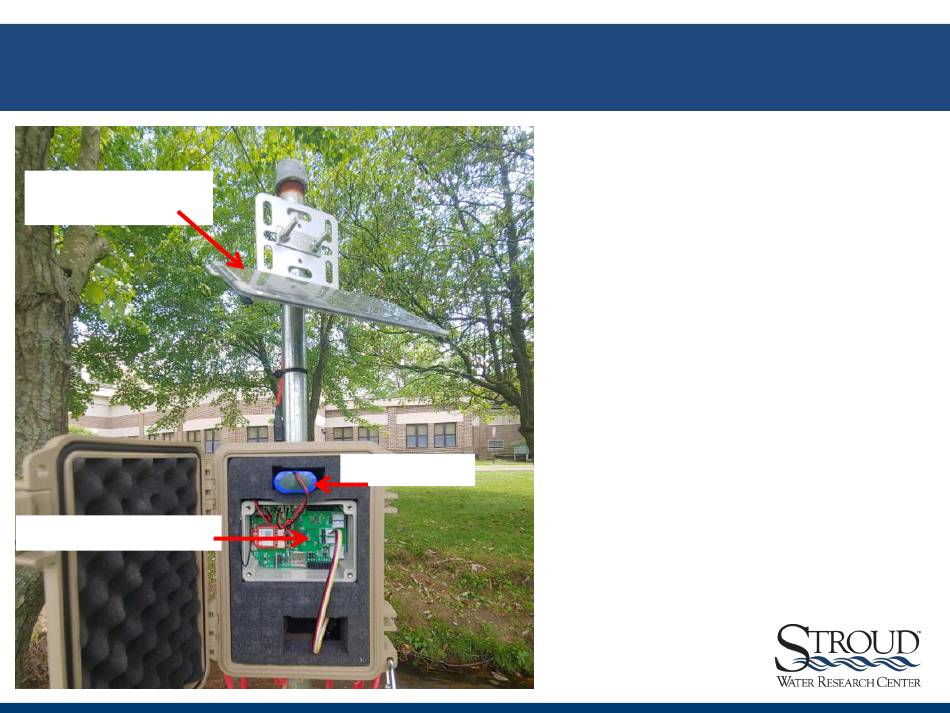

Basic overview of the
EnviroDIY monitoring station
functionality:
• The solar panel charges the
Lithium Ion Polymer (LiPo)
battery.
• The LiPo battery powers the
mayfly data logger.
• The Mayfly data logger records
data collected from the
sensors.
• If there is cellular telemetry, the
cell board sends data to online
portal
( MonitorMyWatershed.org).
Advertisement
Summary of Contents for Stroud EnviroDIY
- Page 1 EnviroDIY Monitoring Station Basic overview of the EnviroDIY monitoring station Solar panel & mounting bracket functionality: • The solar panel charges the Lithium Ion Polymer (LiPo) battery. • The LiPo battery powers the mayfly data logger. • The Mayfly data logger records data collected from the sensors.
-
Page 2: Battery Overview
6600mAh - $29.50 Note** • do not buy random battery packs on Amazon or other vendors without checking with Stroud first • the majority of lipo batteries made for radio controlled cars/aircraft have backwards polarity wires on the connectors, which will blow up the... - Page 3 Battery overview cont. • The LiPo battery is located at the very top of the logger box, above the mayfly data logger. • These batteries come with a JST cable attached which allows it to be plugged directly into the mayfly data logger.
- Page 4 Battery overview cont. Where the battery plugs into the Mayfly Data Logger : • There are two identical JST connectors on the mayfly data logger labeled LIPO BATT. The battery can plug in to either one of these to power the mayfly.
- Page 5 Solar Panel Options From left to right: a 6 W, 3.5 W, and 2 W solar panel with solar panel bracket at top.
- Page 6 Solar panel extension cable Plug into mayfly data logger JST connector labeled SOLAR Plug into the solar panel...
- Page 7 Solar panel cont. • The solar panel cable plugs into the mayfly through a JST connector labeled SOLAR on the mayfly. • When both the solar panel and the battery are plugged into their appropriate spots, the battery will be charged via solar energy.
-
Page 8: Battery Charging Indicator
Battery charging indicator • When both the battery and the solar panel are connected to the mayfly, a tiny yellow-orange LED light will shine showing that the battery is being charged • The LED light will not shine for two reasons •... - Page 9 How to interpret battery voltage Basic rule of thumb to follow: 4.0V or above: fully charged battery ○ 3.7V-3.9V: sufficiently charged battery ○ 3.7V is the nominal voltage (Nominal voltage is the default, ○ resting voltage of a battery pack). The middle ground between fully charged and the low voltage cutoff 3.5V-3.7V: start to keep an eye on the battery pattern ○...
- Page 10 Examples of proper battery charging patterns Example of a station that is in full sun (Ridley Creek PURC2S) : Fully charges at 4.18V - 4.20V during the day and drops down to around 4.10V at night.
- Page 11 Examples of proper battery charging patterns cont. The battery does not always need to be fully charged for the station to function properly. Example of a station that is very forested (Mine Hole Brook PKMH2S) : During the winter, the battery voltage stays around the Nominal Voltage (3.7V). The sun is at a lower angle and daylight hours are shorter, so the battery does not fully charge, but still charges enough to keep the station running.
- Page 12 Examples of proper battery charging patterns cont. Mine Hole Brook PKMH2S- same station as mentioned before, after the winter solstice the battery begins to recover and the battery returns to being fully charged daily.
- Page 13 Failing Battery Patterns Punches Run in Nolde State Forest : You can see the end of April the charging pattern is normal, staying between 4.0V and 4.2V. Then once the vegetation starts to come in, in May, the battery has trouble keeping up.
- Page 14 Failing Battery Patterns Pennypack Creek PUPP3S – Battery is still charging, but an overall downward trend below 3.7V.
- Page 15 Failing Battery Patterns – downward trend with no charging shown at Sandy Run PUSR1S all. This indicated there is no solar panel connected. Either the solar panel wire / connector got damaged or possibly an indicator of vandalism...
- Page 16 Failing Battery Patterns PUCR1S Crum Creek – The charging pattern is normal at the beginning, ● then suddenly drops from 4.0V to 3.4V over a few days. This is a pattern unusual activity, you would follow up with a field visit.
- Page 17 WHAT TO DO IF YOUR BATTERY IS NOT CHARGING EFFICIENTLY 1. Go out to your site and make sure the solar panel is clear of any vegetation.
- Page 18 WHAT TO DO IF YOUR BATTERY IS NOT CHARGING EFFICIENTLY 2. See if there is a better angle to point the solar panel depending on the time of year or if there is a gap in the foliage (the U-bolt can be loosened using a 7/16” wrench)
- Page 19 WHAT TO DO IF YOUR BATTERY IS NOT CHARGING EFFICIENTLY 3. Buy a spare battery and a battery charger to cycle through batteries if your station battery regularly has trouble keeping a charge.
- Page 20 Spare battery and battery charger details Note** Only buy the battery charger Stroud suggests – Most sold ● on amazon have backwards polarity wires and will damage your battery. Links to purchase charger and and details are provided in the ●...
- Page 21 Spare battery and battery charger details...
- Page 22 Spare battery and battery charger details...
- Page 23 Spare battery and battery charger details...
- Page 24 Swapping the batteries at your station **Very Important: remember to turn the mayfly data logger OFF before removing and replacing the battery** Steps: 1. Turn Mayfly off 2. Unplug original battery from LIPO BATT connector on mayfly 3. Plug in new fully charged battery 4.
- Page 25 ○ Troubleshooting quick guide – Section 8.3.3 Troubleshooting ● Troubleshooting Quick Guide ○ This powerpoint presentation – will be posted ● https://wikiwatershed.org/drwi/ Email Stroud Folks after you attempt to troubleshoot on your own- ● shicks@stroudcenter.org ○ dbressler@stroudcenter.org ○ rjohnson@stroudcenter.org ○...
- Page 26 Questions ?
- Page 30 How to minimize moisture in the logger box 1. Minimize the amount of times you open the logger box ( try to only open it when you need to collect the data card or if there is an issue with the data) 2.
