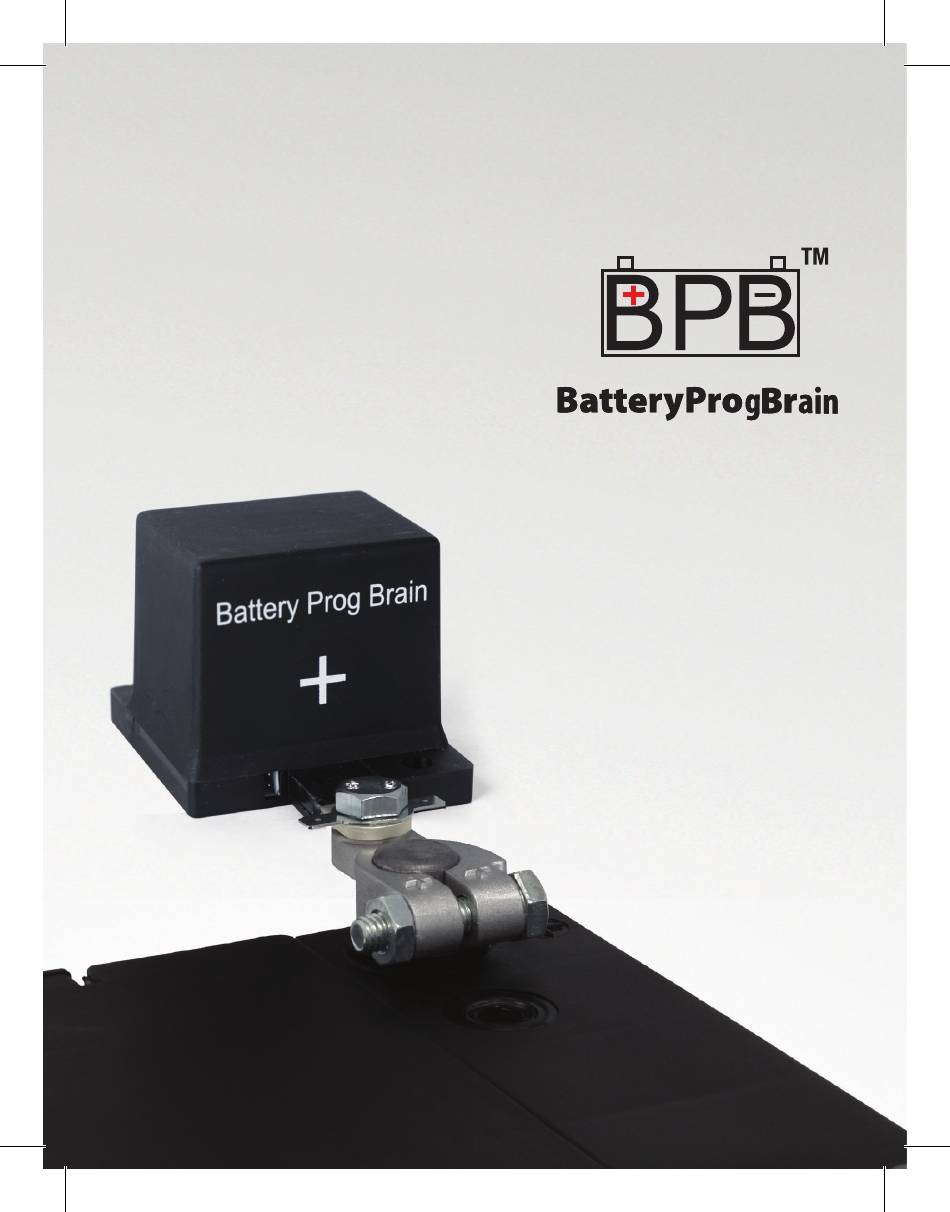

What is the "Battery Prog Brain" (BPB)
Battery Prog
Brain is an innovative accessory that easily installs to any battery.
Using unique micro-electronic technology it continually monitors the
battery power. When Battery Prog Brain detects power falling below the
threshold level required to start your engine, it automatically isolates the
battery from the electrical system. This will ensure the battery always have
enough power to start your engine and will prolong the battery life. There
are a few ways to reset the power according to the type of BPB you have
purchase.
*T3 & T4 have the ability to disconnect the battery from the electrical
system intentionally and to act as an anti-theft device.
*T4RV (Utility) is designed to extend battery life by protecting
utility/house/coach batteries rather than the vehicle starting battery and
can disconnect the battery from the electrical system intentionally to
preserve battery power when not in use.
Updates to installation instructions will be posted on
www.batteryprogbrain.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BatteryProgBrain and is the answer not in the manual?

Questions and answers

Summary of Contents for STRS Energy BatteryProgBrain

  • Page 1 *T4RV (Utility) is designed to extend battery life by protecting utility/house/coach batteries rather than the vehicle starting battery and can disconnect the battery from the electrical system intentionally to preserve battery power when not in use. Updates to installation instructions will be posted on www.batteryprogbrain.com...
  • Page 3 Aluminum Female Positive Post with Butterfly Connector with Bolt and Lock Washer 1. Positive (+) side of Battery Prog Brain (the printed side) with Butterfly Connector 2. Black Ground Wire, attached to unit 3. White Antenna Wire, attached to unit (for Type T2 &...

  • Page 4: Installation Instructions

    Installation Instructions NOTE: Battery location and position differ in Remote Control to connect/disconnect the vehicles. With the supplied accessories you can power remotely mount the Battery Prog Brain on the vehicle using (T2 & T3 Models Only) the Top Mount, Side Mount or Chassis Mount Remote Control Frequency: TX433.92 Mhz positions.
  • Page 5 Prog Brain (with the side printed +) to the positive post on the battery using the provided side mount screw. Then screw in the red positive battery cable to the other side of the Battery Prog Brain.
  • Page 6 STEP 4: STEP 5: Optional: Red Accessory Bypass Wire Install Red Engine On Wire. (Not required if ERD tested OK) Installation Installation of the red accessory bypass Installation of the Engine On wire will wire will provide you with continuous 12V prevent the Battery Prog Brain from discon- power to an accessory or accessories necting the battery while the engine is...
  • Page 7 MULTI BATTERY INSTALLATION If your vehicle has a multi-battery configuration, Battery Prog Brain can be mounted to any battery configuration. However, any primary live positive battery post must have its own Battery Prog Brain. Consult a certified technician if you require assistance.
  • Page 8 C) TO TEST THE REMOTE CONTROL UNIT / WIRED REMOTE BUTTON UNIT(BATTERY PROG BRAIN III & IV): Press the button of the RC or the push button to establish connection Start the engine after The remote control unit supplied with Battery installation is complete.

  • Page 9: Troubleshooting

    Trouble Shooting AFTER INSTALLATION, THE BATTERY YOU CANNOT DETERMINE A BATTERY PROG BRAIN DOESN’T SEEM TO PROG BRAIN INSTALLATION CONFIGURATION BE WORKING. FOR YOUR VEHICLE OR LOCATE BATTERY CONNECTIONS. WHAT TO DO WHAT TO DO 1. Be sure your battery is holding the proper charge.

  • Page 10: Limited Warranty

    Limited Warranty Your Battery Prog Brain™ is covered by a conditional, limited warranty to the original purchaser. This unit is guaranteed to the original retail purchaser against defects in quality or workmanship for a period of two years from the date of original purchase. If this unit fails because of a manufacturing defect within 30 days of purchase, return the unit, with your receipt, to the retailer.
  • Page 11 BPB Programmer Users A good state of charge (alternator) should be at 13V. Manual Barrery condition Voltage at engine start Very good 9V and higher Good 8.5V to 9V Fair 8V to 8.5V Poor 7.5V to 8V 7V to 7.5V 2.
  • Page 12 Marketing & Sales: 8-04 Arnot Place Fair Lawn NJ 07410 USA Tel:201-968-7042 Fax:201-548-5252 Technical Support: 201-968-7042 R&D and Manufacturing: 83 Nahal Soreq Moshav Tal Shahar 76805 Israel Tel:972-52-2654492 Fax:972-72-2510026 For more information and other products go to www.batteryprogbrain.com Version: 2012 06A...
