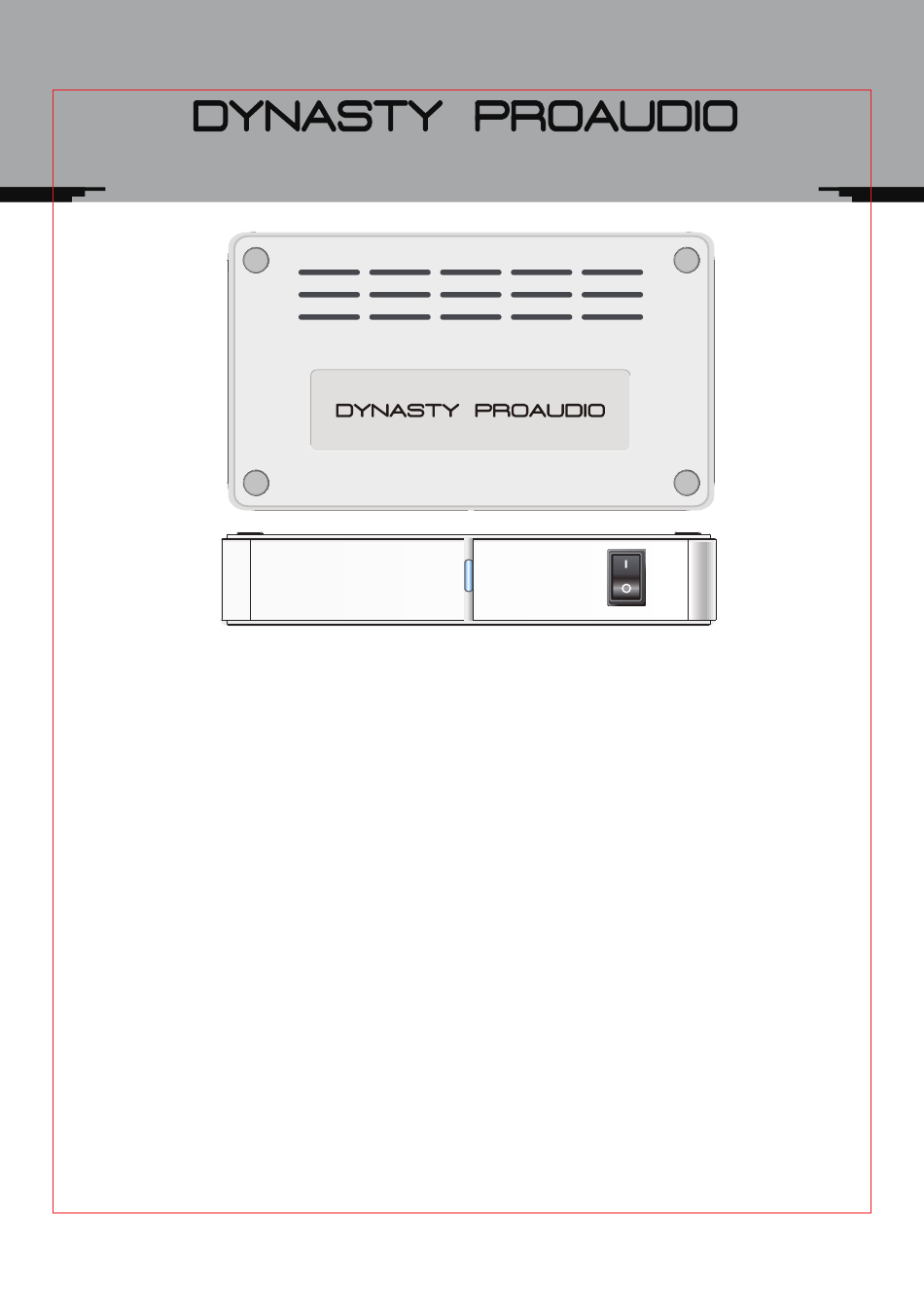

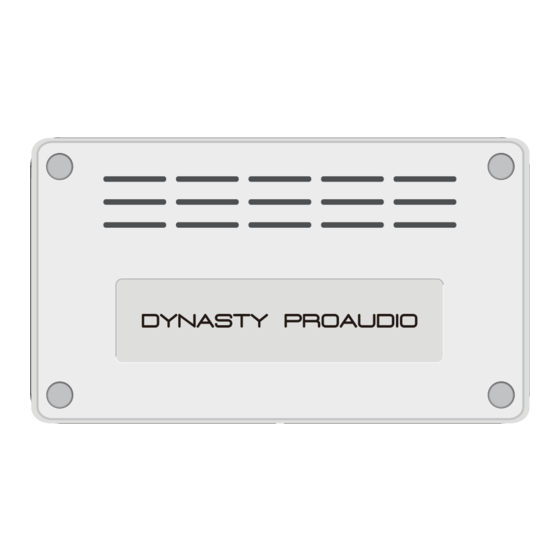

5.2G/5.8G WIRELESS SURROUND SOUND REAR SPEAKER KIT / 2 x 50W AMPLIFIER BUILT-IN
Tired of running cables around doors or hiding under carpet to connect your rear surround speakers and
subwoofer to the receiver? Or having limited options on rear surround speakers and subwoofer placement
due to cable length and component location? The WSA-5RP providing premium-quality audio for stereo
audio applications operating in the 5.2G/5.8GHz bands with 2 x 50W low-hear class D amplifier built-in.
Simply connect the transmitter module to you're A/V processor and the receiver to your passive bookshelf /
rear surround sound speakers and powered/active subwoofer
Features:
* Lossless Audio - 5.2 & 5.8GHz selectable digital wireless with an advanced channel selection for near lossless
audio, provides excellent transmission stability
* Wide Range - Up to 100 ft (30M) operational distance between transmitter and receiver (line of sight)
* High Performance - 24-bit 48KHz full CD quality high resolution/uncompressed audio
* Works with any AV receiver or power amplifier - Speaker Line Level Input & Stereo RCA Input
* High efficiency 2 x 50W RMS class D amplifier built-in to connects directly to any passive bookshelf or the rear
surround sound loudspeakers
*An additional subwoofer mono input and output for connecting between AV Receiver and Power/Active
Subwoofer Speaker or Subwoofer Amplifier
Package Contents:
1. Transmitter
2. Receiver (built-in amplifier)
3. 9V AC Adapter (for transmitter)
4. 24V AC Adapter (for receiver)
WSA-5RP
5. 6-foot Speaker Wires (2)
6. Owner's Manual
7. Stand (2)
ON
OFF
POWER
Advertisement
Summary of Contents for Dynasty ProAudio WSA-5RP
- Page 1 Or having limited options on rear surround speakers and subwoofer placement due to cable length and component location? The WSA-5RP providing premium-quality audio for stereo audio applications operating in the 5.2G/5.8GHz bands with 2 x 50W low-hear class D amplifier built-in.
- Page 2 WSA-5RP Wireless Transmitter (Front View) POWER Power/Status Indicator LED Power Switch WSA-5RP Wireless Transmitter (Back View) 1. Left Speaker Level Audio Input Terminals 4. Subwoofer Signal Audio Input 2. Right Speaker Level Audio Input Terminals 5. DC-IN Jack (9V) 3. Line-In Level Audio Input 6.
- Page 3 Install the WSA-5RP Wireless Transmitter (The WSA-5RP wireless transmitter can be connected via SPEAKER-LEVEL-IN or LINE-IN Audio with your AV Receiver / Amplifier, when the RCA cables are connected, audio input from the speaker terminal will be mixed, make sure your home theater AV receiver / amplifier is power o...
- Page 4 Install the WSA-5RP Wireless Transmitter (Option 2) Application 2. Connect the transmitter via LINE IN: 1. Connect your WSA-5RP wireless transmitter to the amplifier’s RCA output ports with RCA cables 2. Connect the supplied AC adaptor (9V, 200MA) to DC IN 9V jack, then plug it into a standard household outlet (Caution: To avoid risk of fire, and to prevent damage, only...
- Page 5 Install the WSA-5RP Wireless Receiver 1. Connect the right speaker to the right speaker terminals of the WSA-5RP wireless receiver, and the left speaker to the left speaker terminals. 2. If the speaker wires are attached to the speakers already, connect the positive (+)
- Page 6 We suggest that you place the WSA-5RP wireless transmitter on top (or beside) of your audio source (AV receiver / amplifier), If no line of sight is possible, place the WSA-5RP wireless transmitter and receiver such that there is the minimum possible number of walls and obstacles between the transmitter and receiver.
- Page 7 * If you are using the 5.1/7.1 AV receiver with WSA-5RP wireless speaker kit, please make sure to set "MULTI ST” mode on your AV receiver to turn on the rear surround speaker...
- Page 8 Pairing the WSA-5RP transmitter and wireless amplifier receiver The WSA-5RP wireless Transmitter and Receiver are automatically paired and synced at the factory, both LEDs should be solid Blue in 5.8G mode as default when powered on. We use the latest 5.8G wireless technology connection with 62 channels auto selection from RF channel 5727~5848, which are not easily disturbed by 2.4G (the frequency...
-
Page 9: Troubleshoot
TroubleShoot... - Page 10 Placing the wireless transimtter and wireless receiver The wireless transimtter and receiver must be placed within 100 feet for proper operation. To avoid risk of electric shock and fire, and to prevent damage, locate the wireless transmitter and receiver units with no obstructions in front. They can be placed: 1.
- Page 11 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 12: Technical Specifications
Technical Specifications !"#$% &'()*+$**$%), Digital, uncompressed, bidirectional, adaptive FHSS -(#$% .'/0"/)12, 5.8G Mode - RF channel 5727~5848 5.2G Mode - RF channel 5157~ 5243 3(+45$)6 -(7/, 24bit, 48KHz &'()*+$77/' 84/'(7$)6 -()6/, Max 100 ft - line of sight (best result) Max.
