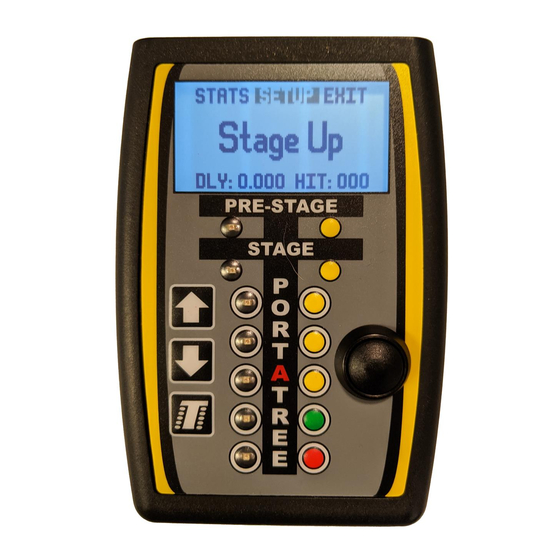

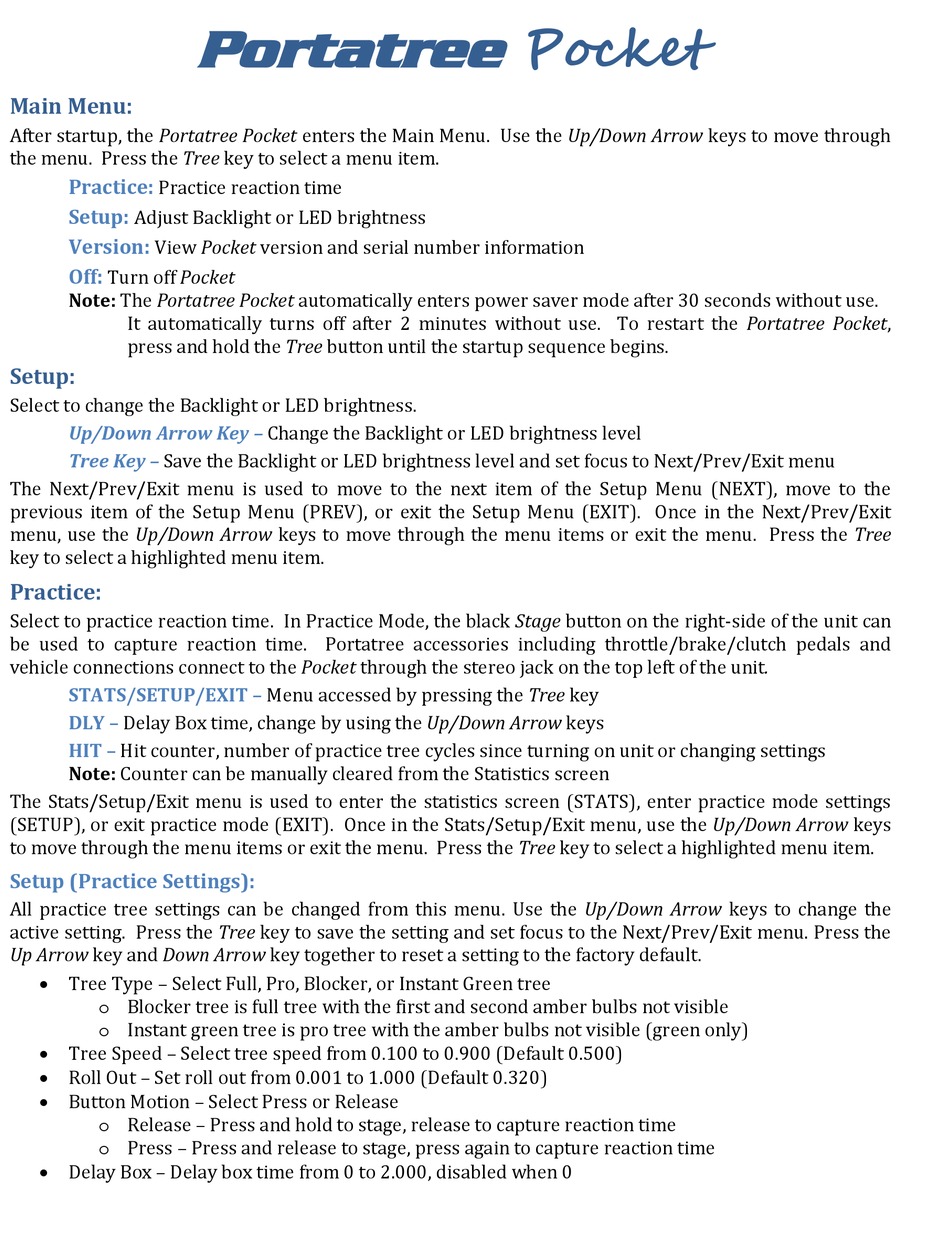

Portatree Pocket Quick Start Manual

Main Menu:

After startup, the Portatree Pocket enters the Main Menu. Use the Up/Down Arrow keys to move through
the menu. Press the Tree key to select a menu item.

Practice:

Practice reaction time

Setup:

Adjust Backlight or LED brightness
Version:
View Pocket version and serial number information
Off:
Turn off Pocket
Note: The Portatree Pocket automatically enters power saver mode after 30 seconds without use.
It automatically turns off after 2 minutes without use. To restart the Portatree Pocket,
press and hold the Tree button until the startup sequence begins.
Setup:
Select to change the Backlight or LED brightness.
Up/Down Arrow Key –
Tree Key – Save the Backlight or LED brightness level and set focus to Next/Prev/Exit menu
The Next/Prev/Exit menu is used to move to the next item of the Setup Menu (NEXT), move to the
previous item of the Setup Menu (PREV), or exit the Setup Menu (EXIT). Once in the Next/Prev/Exit
menu, use the Up/Down Arrow keys to move through the menu items or exit the menu. Press the Tree
key to select a highlighted menu item.
Practice:
Select to practice reaction time. In Practice Mode, the black Stage button on the right-side of the unit can
be used to capture reaction time. Portatree accessories including throttle/brake/clutch pedals and
vehicle connections connect to the Pocket through the stereo jack on the top left of the unit.
STATS/SETUP/EXIT –
DLY – Delay Box time, change by using the Up/Down Arrow keys
HIT – Hit counter, number of practice tree cycles since turning on unit or changing settings
Note: Counter can be manually cleared from the Statistics screen
The Stats/Setup/Exit menu is used to enter the statistics screen (STATS), enter practice mode settings
(SETUP), or exit practice mode (EXIT). Once in the Stats/Setup/Exit menu, use the Up/Down Arrow keys
to move through the menu items or exit the menu. Press the Tree key to select a highlighted menu item.

Setup (Practice Settings):

All practice tree settings can be changed from this menu. Use the Up/Down Arrow keys to change the
active setting. Press the Tree key to save the setting and set focus to the Next/Prev/Exit menu. Press the
Up Arrow key and Down Arrow key together to reset a setting to the factory default.
 Tree Type – Select Full, Pro, Blocker, or Instant Green tree
o Blocker tree is full tree with the first and second amber bulbs not visible
o Instant green tree is pro tree with the amber bulbs not visible (green only)
 Tree Speed – Select tree speed from 0.100 to 0.900 (Default 0.500)
 Roll Out – Set roll out from 0.001 to 1.000 (Default 0.320)
 Button Motion – Select Press or Release
o Release – Press and hold to stage, release to capture reaction time
o Press – Press and release to stage, press again to capture reaction time
 Delay Box – Delay box time from 0 to 2.000, disabled when 0
Portatree
Change the Backlight or LED brightness level
Menu accessed by pressing the Tree key
Pocket
