Ez-Boom 2010 Quick Reference Card

Automated application control system
Hide thumbs Also See for 2010:
Table of Contents

Advertisement

Quick Links

Download this manual
EZ-Boom
Control System Quick Reference Card

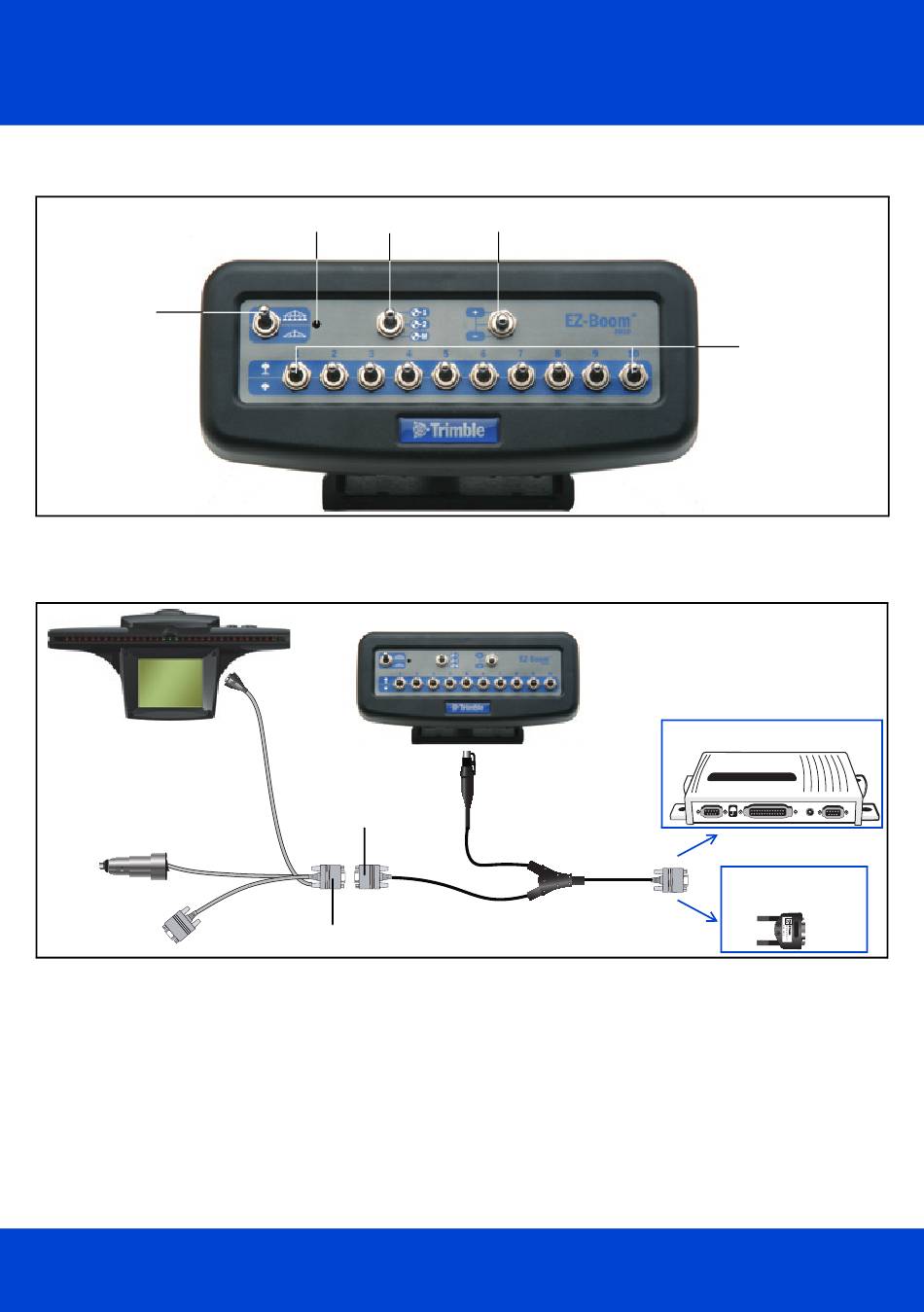

This figure shows the front panel of the EZ-Boom™ 2010 automated application control system.
Master switch
This figure shows how to connect the EZ-Boom controller to the other system components.
EZ-Guide Plus
lightbar
Power
EZ-Steer cable
(P/N 52763)
1. On the EZ-Steer® system power cable (P/N 52763), disconnect the female DE9 connector
("EZ-STEER CONTROLLER") from the EZ-Steer controller (if fitted).
2. On the EZ-Boom "Y" cable (P/N 58377):
a. Connect the male DE9 connector marked "TO POWER" to the female DE9 connector marked
"EZ-STEER CONTROLLER" on the EZ-Steer power cable (P/N 52763).
b. Connect the female DE9 connector marked "TO SCM" to:
•
the EZ-Steer controller (if an EZ-Steer system is installed)
•
the CAN terminating connector (if an EZ-Steer system is not installed)
3. Connect the Deutsch connector ("TO EZ-BOOM") to the socket on the back of the EZ-Boom controller.
™
2010 Automated Application

INTRODUCTION

Rate switch
Status indicator

CONNECTING

"TO POWER"
"EZ-STEER CONTROLLER"
www.EZ-Boom.com
Rate Adjustment (Inc/Dec) switch
EZ-Boom controller
"TO EZ-BOOM"
EZ-Boom "Y" cable
(P/N 58377)
Boom section
switches
EZ-Steer controller
"TO SCM"
CAN terminator
(P/N 58378)
OR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ez-Boom 2010

Summary of Contents for Ez-Boom 2010

  • Page 1 • the EZ-Steer controller (if an EZ-Steer system is installed) • the CAN terminating connector (if an EZ-Steer system is not installed) 3. Connect the Deutsch connector (“TO EZ-BOOM”) to the socket on the back of the EZ-Boom controller. www.EZ-Boom.com...
  • Page 2 ™ EZ-Boom 2010 Automated Application Control System Quick Reference Card CONFIGURATION PROCESS 1. Install and connect the hardware. See CONNECTING. 6. Set up the flow control valve. 2. Set up the boom. 7. Set up the tank. 3. Set up the antenna/implement offset.
  • Page 3 6. Select Exit and then press STEP 3. SET THE ANTENNA/IMPL OFFSET 1. From the configuration menu, select EZ-Boom/Ant/Impl Offset. The antenna/impl offset screen appears. 2. Press to adjust the distance the antenna is from the spray boom. You can set the antenna to ahead of, or behind, the implement.
  • Page 4 2010 Automated Application Control System Quick Reference Card STEP 5. APPLICATION SETUP 1. From the configuration menu, select EZ-Boom / Application. The Application Setup screen appears. 2. Set the Rate Control option to On or Off and then press Note –...
  • Page 5 The Pressure value shows the pressure that the sensor is reporting and will update, based on the Slope and Set Point entered. 4. Select Calibrate to send the new Slope and Set Point values to the EZ-Boom controller. After calibrating, check that the Pressure value is correct.
  • Page 6 FAULT HISTORY To view previous system faults, from the configuration menu select EZ-Boom / Fault History. The EZ-Boom Faults screen shows the four most recent EZ-Boom system faults. The most recent appears at the top. Note – Faults shown on this screen are not necessarily still active.
