Diesella 18560120 User's & Technical Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

18560120

User/Technical Manual

Contents subject to change without notice

Version 1.0

07/2017

Table of Contents

Need help?

Do you have a question about the 18560120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Diesella 18560120

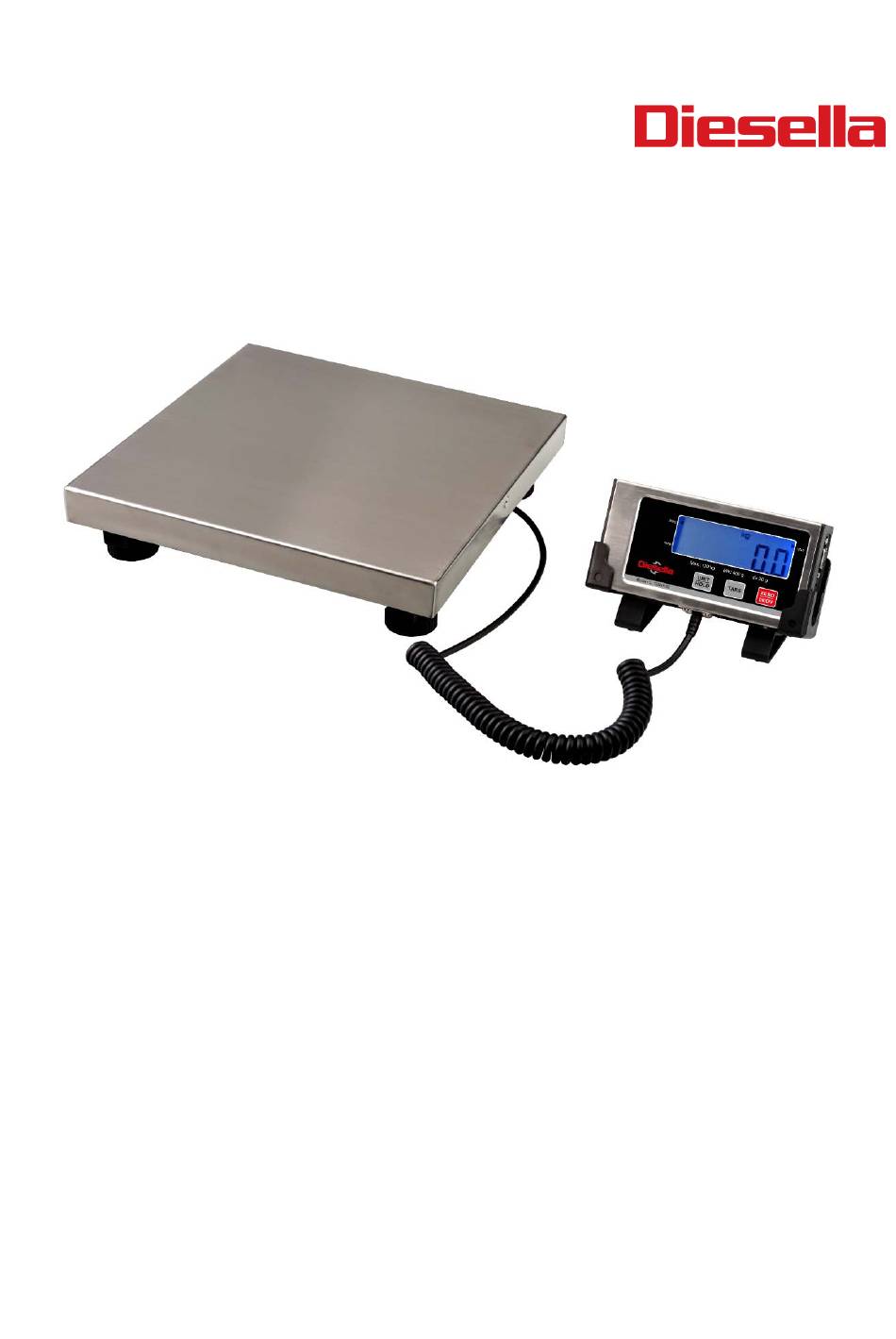

Page 1 18560120 User/Technical Manual Contents subject to change without notice Version 1.0 07/2017...
Page 2: Table Of Contents
CONTENTS INTRODUCTION and INSTALLATION .................... 1 General and Safety Information ..........................1 Specifications ................................. 1 Contents ................................2 Load Cell Wiring ..............................2 Installation ................................2 OVERVIEW OF CONTROLS AND FUNCTIONS .................. 3 Indicator Display Character Definitions ........................3 Indicator Display ..............................4 Function Keys .................................
Page 3: Introduction And Installation
 Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings.  Avoid using in heavy vibration or heavy airflow conditions. Specifications Model 18560120 Max Capacity 120 kg / 250 lb Readability 0.02 kg / 0.05 lb...
Page 4: Contents
Contents  Indicator  Scale Platform  DC9V 600mA Power Adapter  Outer Hexagonal Wrench  Owner’s Manual Load Cell Wiring PIN1----Red, Excitation + PIN2----Black, Excitation – PIN3----Green, Signal - PIN4----White, Signal + Installation 1. Remove the scale from the packaging and place it on a work table with the feet facing up. Remove the shipping protection screw.
Page 5: Overview Of Controls And Functions
2. OVERVIEW OF CONTROLS AND FUNCTIONS Indicator Display Character Definitions...
Page 6: Indicator Display
Indicator Display  ZERO- Scale is zeroed and gross weight is 0, tare is 0.  TARE - Display reading is net weight; tare is not 0.  lb, kg, oz - Unit of measure.  Hold - Scale is in dynamic weighing mode. - Hold flashes - actual fluctuating weight is displayed.
Page 7: Operations
3. OPERATIONS Normal Weighing Mode 1. Power on the scale by pressing the ZERO/ON/OFF key. 2. When the display stabilizes, but it doesn’t show zero, press ZERO/ON/OFF to set a new zero point. 3. Place objects on the scale platform and read the weight on the indicator. Note: Objects should be placed at the center of the platform.
Page 8: Calibration
4. Calibration Note: (1) Before calibrating the scale, you should prepare standard weights (more than 10% of FS weight) for calibration. (2) In the following steps, pressing ZERO/ON/OFF will exit calibration. 1. Move all weight from the scale. Under normal weighing mode, press and hold TARE and ZERO/ON/OFF keys for more than 4s to enter calibration mode.
Page 9: View Adc Code Or Power Voltage
5. View ADC Code or Power Voltage code In normal weighing mode, press and hold UNIT/HOLD , TARE and ZERO/ON/OFF keys until “ ” is shown, which means the indicator is working under display inner code mode. In this mode, you can examine the inner working voltage, the stability of weighing system, the variety value of A/D data as per the loaded weight.
Page 10: Configuration Parameters Setup
2. During setup mode, press the UNIT/HOLD key to change the flashed digits. Press the TARE key to confirm the flashed digits. Press the ZERO/ON/OFF key to exit this mode. 3. Summary of Configuration Parameters Setting: Para- 18560120 Default Setting meter Factory Setting Auto-off time: no auto-off;...
Page 11 Para- 18560120 Default Setting meter Factory Setting Decimal point in calibration: 0= x1, 1= x0.1, 2= x0.01; 3= x0.001; 4= P8.x x0.0001; 5= x10 P9.x Calibration unit: 0=kg, 1=lb Weighing units enable: 0=only kg; 4=kg or lb:oz; P10.x 1=only lb;...
Page 12 Para- PS-105-120 18560120 PS-105-120 PS-105-12 Default Default Setting Setting Setting meter Factory Setting setting setting setting Check weight stability range: 0=+0.5d; 1=±1d; 2=+1.5d; 3=+2d; P17.x 4=+3d; 5=+4d; 6=+5d; 7=+6d; 8=+7d; 9=+8d Overload limit range: 0=FS+0d; 1=FS+9d; 2=101%FS; 3=102%FS; 4=105%FS; 5=110%FS;...
Page 13 Table1: use Kg as calibration unit: Display division value in different weight unit that can be used Calibration division value lb:oz 0.0001kg 0.0001kg 0.0002lb Not available 0.001kg 0.001kg 0.002lb Not available 0.01kg 0.01kg 0.02lb 0.5oz 0.1kg 0.1kg 0.2lb 5 oz Not available 10kg 10kg...
Page 14: Details About Rs232
P10.x: Select the weighing unit that may be chosen by pressing UNIT/HOLD. P12.x: Zero range for ON/OFF/ZERO button operation If zero key can be activated, it can clear the TARE weight. If zero point is above the setting range, the indicator will show “0ˉ...
Page 15 If the zero point is error, it will return nine ‘_’ characters. 7.2.4) The character will be ‘-’ for negative weight or a space character for positive weight. Minus sign follows after the first digit. 7.2.5) Useless leading zero before digits is suppressed. 7.3 Key to symbols used <LF>...
Page 16: Symbol Definitions
7.4.6 Command: L<CR> (4ch 0dh) Response: <LF> H1H2H3 <CR><ETX> If Hold function can be activated, it will enable/disable hold (lock) function, like the UNIT/HOLD key is pressed, and returns scale status. 7.4.7 Command: X<CR> (58h 0dh) Response: power off the scale, just like press down the ON/OFF/ZERO key to turn off the scale. 7.4.8 Command: all others Response: <LF>? <CR><ETX>...
Page 17: Trouble Shooting
The division will be displayed The No. x parameter is set to y. Lo.bAt The voltage of batteries or input power is below 4.7V 9. Trouble shooting: SYMPTOM PROBABLE CAUSE REMEDY 1. Re-plug the AC adapter or rotate the plug to 1.
