Summary of Contents for Agus V-Board 5560600200

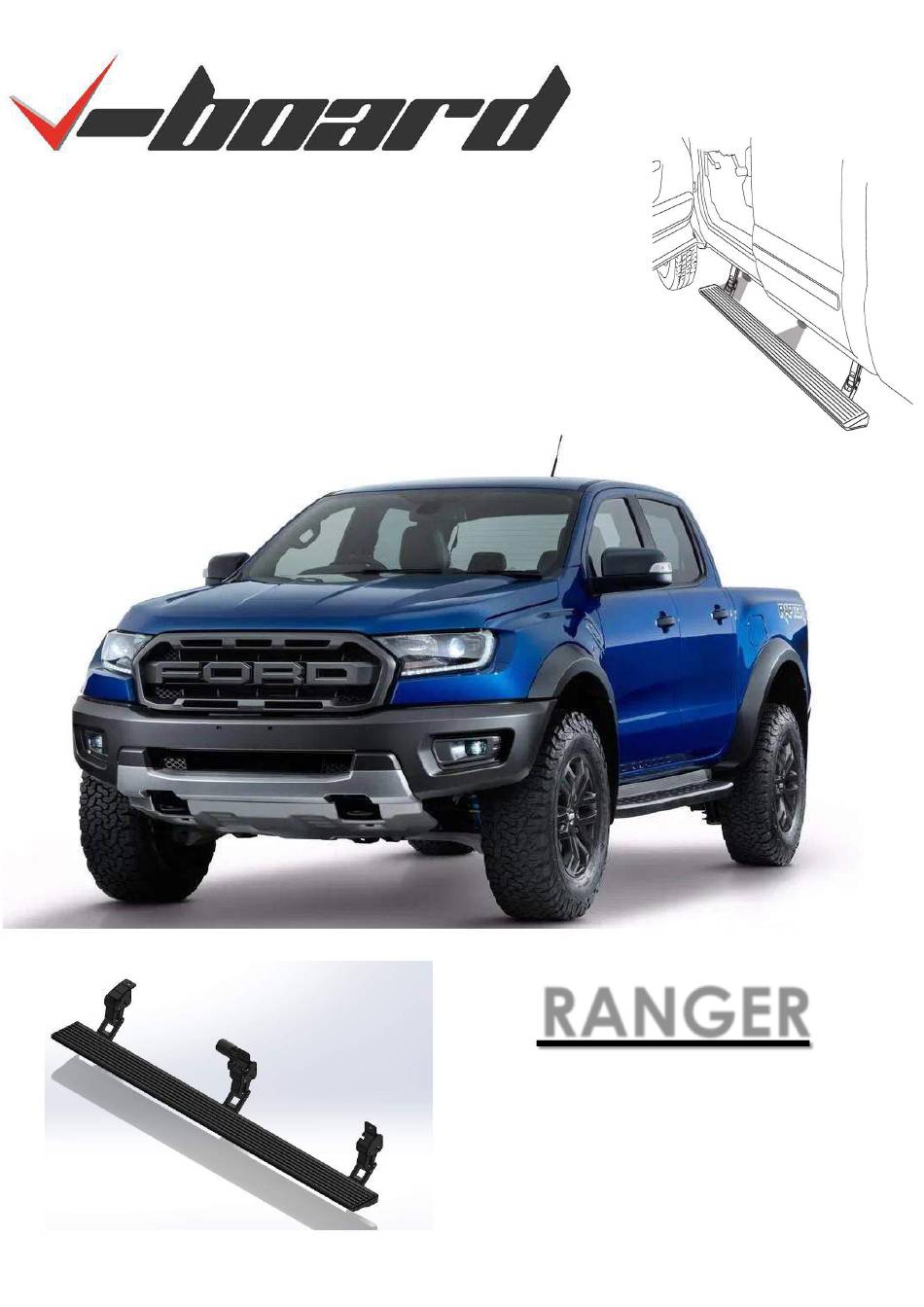

- Page 1 RANGER...
-
Page 2: Difficulty Level
INSTALLATION TIME 3 – 4 HOURS Professional installation recommended DIFFICULTY LEVEL EQUIPMENT LIST ▪ Protective glasses ▪ Ratchet wrench and arms ▪ Cable stripper ▪ Allen wrench set ▪ Electrical insulating strap ▪ Pliers ▪ 8 mm spanner ▪ 13 mm spanner ▪... - Page 3 Parts Front Carrier Foot Motorized Center Carrier Rear Carrier Foot Foot Control Unit Board...
- Page 4 - Connection Parts M6 x 20 hex socket head bolt x 4 Board profile connection part x 2 M10 x 25 Flanged (Wrench flat 13mm) Bolt x 6 Pieces Note: If the vehicle has a fixed board, its original connecting bolt is used.
- Page 5 Electrical Diagram and Components TWIN ENGINED v - board Back view Rear Engine Socket Front Engine Socket Additional Engine Socket Main Engine Socket *** It is not used in Ford Ranger models. Rear Lightening Front Lightening Socket Socket...
-
Page 6: Wiring Assembly
- Wiring Assembly Fuse 20A (Fuse 20A) (Fuse 25A) (+12V Feeder) (Red-White) (Brown) Speed information connection.( Optional ) – J2 ( + 12 V ) Step open signal connection ( Optional )- J3 Center Door Switch Rear Door Switch Connection J6 –... - Page 7 - Wiring Assembly LED – 1 connection Front Lightening Socket LED – 2 connection Rear Lightening Socket Front Engine Socket Front Engine Socket ***It is not used in Ford Ranger models. Rear Engine Socket Rear Engine Socket...
- Page 8 - Wiring Assembly LEFT Before starting installation, the fuse on the wiring is removed. !!!! (Fuse – 25A) (+12V Feeder) (Red-White) **** !!! S1 fuse on the wiring Connect the plus ( + ) end of the wiring to the plus ( + ) end of the battery.
- Page 9 - Wiring Assembly LEFT The battery connection of the end of the wiring is made as shown in the picture. From the original hole of the vehicle located under the driver's mat, the engine and LED ends of the left v_Board wiring are extended to the bottom of the vehicle as shown in the picture.
- Page 10 - Wiring Installation RİGHT Before starting installation, the fuse located on the wiring is removed. !!!! (Fuse-25A) (12V Feeder) (Red-White) **** !!! S1 fuse on the wiring. Connect the plus ( + ) end of the wiring to the plus ( + ) end of the battery.
- Page 11 - Wiring Assembly LEFT The battery connection of the (+) end of the wiring is made as shown in the picture. From the original hole of the vehicle located under the driver's mat, the engine ends left v_Board installation are extended to the bottom of the vehicle as shown in the picture.
-
Page 12: Mechanical Assembly
- Mechanical Assembly In the installation of carriers on the board, the board profile connection parts are movable in the board channel. By sliding the carrier foot to the installation section, the board is assembled together with the carrier foot. - Page 13 - Mechanical Assembly The vehicle's original chassis hole is used for the front carrier foot connection. Note: M10 AA=13mm bolts are used on the vehicle in assembly processes.
- Page 14 - Mechanical Assembly The vehicle's original chassis hole is used for the middle carrier foot connection. Note: M10 AA=13mm bolts are used on the vehicle.
- Page 15 - Mechanical Assembly The vehicle's original chassis hole is used for the center carrier foot connection. Note: M10 AA=13mm Bolts are used on the vehicle in assembly processes.
- Page 16 - Mechanical Assembly The vehicle's original chassis hole is used for rear carrier foot connection. Note: M10 AA=13mm bolts are used on the vehicle in assembly processes.
- Page 17 - Mechanical Assembly As shown in the figure, the board is placed on the carrier foots and installed with M6 x 20 hex socket head bolt from the bottom side.
- Page 18 - LED Assembly For LED installation, a Ø10 mm hole is drilled with a drill near the connection point of the carrier. For the passage of the LED cable, the hole drilled by a Ø10 mm drill is cut as shown in the figure with the help of an air saw.
- Page 19 - Final Control When starting installation, replace the fuse that have removed from installation. After replacing the fuse, check the operation of the v-board. **** !!! Replace fuse S1 **** !!! Make sure that the fuses S1 and S2 are installed in the correct place in the installation.
- Page 20 - Wiring Assembly_Addition Electrical connections for On & Off position information of right front door. The plastic cover under the right front torpedo, where the vehicle's original signal sockets were located, is removed. white cable in the v_Broard wiring is connected to the white cable in the original...
- Page 21 - Wiring Assembly_Addition Electrical connections for On & Off position information of right rear door. The plastic cover , on the center pole on the right side, where the vehicle's original signal sockets are located, is removed. orange cable in the v_Broard wiring connects to the yellow cable in the original...
- Page 22 - Wiring Assembly_Addition Electrical connections for On & Off position information of left front door. On the left front driver's side, the plastic cover, which is located on the left side of the pedals, where the original signal sockets of the vehicle are located, is removed.
- Page 23 - Wiring Assembly_Addition Electrical connections for On & Off position information of left rear door. On the center pole on the left side , the plastic cover with the vehicle's original signal sockets is removed. orange cable in the v_Broard wiring connects to the green cable in the original...
- Page 24 - Issues to be considered, Maintenance V- board Opening When the doors are opened, the V - board will automatically open down and out. V- board Closing When the doors are closed, the V-board will automatically return to the closed position. V-Board Automatic Stop The V –...
