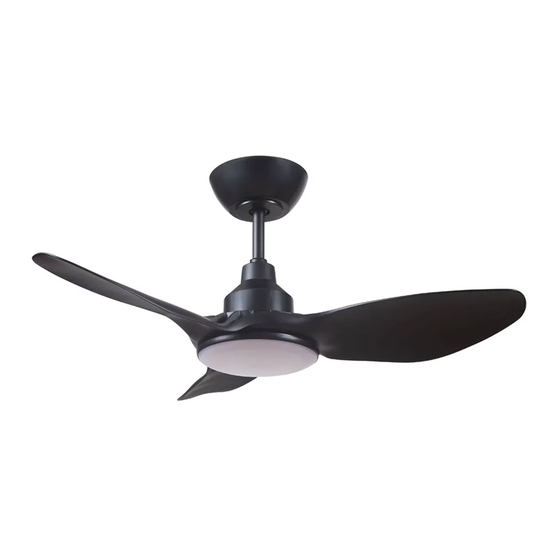

SKY903WH, SKY903WH-L, SKY903BL, SKY903BL-L
SKY1203WH, SKY1203WH-L, SKY1203BL, SKY1203BL-L
SKY1303WH, SKY1303WH-L, SKY1303BL, SKY1303BL-L, SKY1303TK, SKY1303TK-L
SKY1503WH, SKY1503WH-L, SKY1503BL, SKY1503BL-L, SKY1503TK, SKY1503TK-L
SKY1204WH, SKY1204WH-L, SKY1204BL, SKY1204BL-L
SKY1404WH, SKY1404WH-L, SKY1004BL, SKY1404BL-L
Thank you for purchasing this quality Ventair DC ceiling fan. To ensure correct function and safety,
please read all instructions before using the product and keep all instructions for future reference.
CAUTION
Read Instructions Carefully
For Safe Installation and Fan
Operation
INSTRUCTION MANUAL
With LED (-L)
Ceiling Fan Installation Manual Rev 1.4
MODELS:
Intelligent energy saving DC technology
DIY
INSTALLED BY
A LICENSED
ELECTRICIAN
With LED (-L) model
MUST BE
Advertisement
Table of Contents
Related Manuals for Skyfan SKY903WH
Summary of Contents for Skyfan SKY903WH
- Page 1 With LED (-L) model Images are for reference only and may vary slightly from actual product. Ceiling Fan Installation Manual Rev 1.4 MODELS: SKY903WH, SKY903WH-L, SKY903BL, SKY903BL-L SKY1203WH, SKY1203WH-L, SKY1203BL, SKY1203BL-L SKY1303WH, SKY1303WH-L, SKY1303BL, SKY1303BL-L, SKY1303TK, SKY1303TK-L SKY1503WH, SKY1503WH-L, SKY1503BL, SKY1503BL-L, SKY1503TK, SKY1503TK-L...
- Page 2 SAFETY PRECAUTIONS SAFETY PRECAUTIONS SAFETY PRECAUTIONS WARNING: WARNING: SAFETY PRECAUTIONS FOR SAFE USE OF THIS FAN, AN ALL-POLE DISCONNECTION MUST BE FOR SAFE USE OF THIS FAN, AN ALL-POLE DISCONNECTION MUST BE INCORPORATED INTO THE FIXED WIRING INACCORDANCE WITH THE WIRING RULES. INCORPORATED INTO THE FIXED WIRING INACCORDANCE WITH THE WIRING RULES.
-
Page 3: Before Installation
BEFORE INSTALLATION Unpack the fan carefully and identify all parts. Please refer to Fig 1a and Fig 1b. Skyfan and Skyfan 4 WITH LIGHT Skyfan and Skyfan 4 WITHOUT LIGHT WITHOUT LIGHT Fig 1a. Fig 1b. Mounting bracket x 1... - Page 4 Slot 1. Insert the blades (Skyfan x 3, Skyfan 4 x 4) into the blade holding slots on the motor housing, slide 1. Insert the blades (x3) into the blade holding slots on the motor housing, slide downward and click into downward and click into position‘.
-
Page 5: Hanging The Fan
(show Fig 5 here • Complete the electrical connection at the mounting bracket terminal block. • Fix the EARTH cable from motor to the mounting bracket. NOTE: Skyfan DC is a Class I electrical product. (Refer to Fig 6.). Fig. 6... - Page 6 • Connect fan to the receiver (can be done before or after sliding receiver into place). A. For fan models without light, plug cable marked ‘motor’ into remote control box. See Fig 7.2 B. For fan models with light, plug cable marked ‘motor’ and ‘LED’ into remote control box. See Fig 7.1 •...
-
Page 7: Electrical Wiring Diagram
a. For fan models “without light”, plug ‘AC IN b. For fan models “with light”, plug ‘AC INP 7.2) Slide the canopy upwards into position over • FINISHING THE INSTALLATION lock into position. Ensure all 4 Tabs on the After completing the electrical connection at the mounting bracket terminal block, connect the ceiling •... -
Page 8: Remote Control Operation
REMOTE CONTROL OPERATION Fan Models Without Light 1. Turn wall switch to ‘ON’ Fan is now in standby mode. A ‘beep’ will be heard. Fan ‘ON’ and ‘OFF’ If your fan has a light, the light will illuminate in default setting Forward - downdraft for cooling (summer mode) Reverse - updraft for heat circulation (winter mode) of 100% brightness in (NW) - Page 9 The Skyfan DC remote control comes pre-paired at the factory and is ready to use. Pairing will only be required in situations mentioned below. 1. Using 1 remote handset to control 2 or more Skyfan DC Ceiling fans • Choose the fan you wish to pair with your handset.
-
Page 10: Important Facts
Higher wattage, heavier AC type ceiling fan motors. The Skyfan DC Range are one of the quietest fans available and are ideal for all areas of the home especially bedrooms where noise is a crucial consideration. -
Page 11: Technical Information
TECHNICAL INFORMATION Rated Ceiling Fan Fan Weight Rated Voltage Power Rated Power (Lamp) Model (Kg) (Motor) SKY903WH 220-240 VAC 3.82 SKY903WH-L 220-240 VAC 20W, LED, 3000K, 4000K, 5000K 4.16 SKY903BL 220-240 VAC 3.82 SKY903BL-L 220-240 VAC 20W, LED, 3000K, 4000K, 5000K 4.16... - Page 12 TECHNICAL INFORMATION Rated Ceiling Fan Fan Weight Rated Voltage Power Rated Power (Lamp) Model (Kg) (Motor) SKY1204WH 220-240 VAC 4.11 SKY1204WH-L 220-240 VAC 20W, LED, 3000K, 4000K, 5000K 4.45 SKY1204BL 220-240 VAC 4.11 SKY1204BL-L 220-240 VAC 20W, LED, 3000K, 4000K, 5000K 4.45 SKY1404WH 220-240 VAC...
-
Page 13: Warranty Information
WARRANTY INFORMATION • If you consider there are faults relating to the installation, contact your installer to rectify. • If you consider there is a manufacturer defect to the fan motor, contact the warranty service line on 1300 665 926, or submit a warranty claim at www.ventair.
