Summary of Contents for ECONO HOME XD-Y

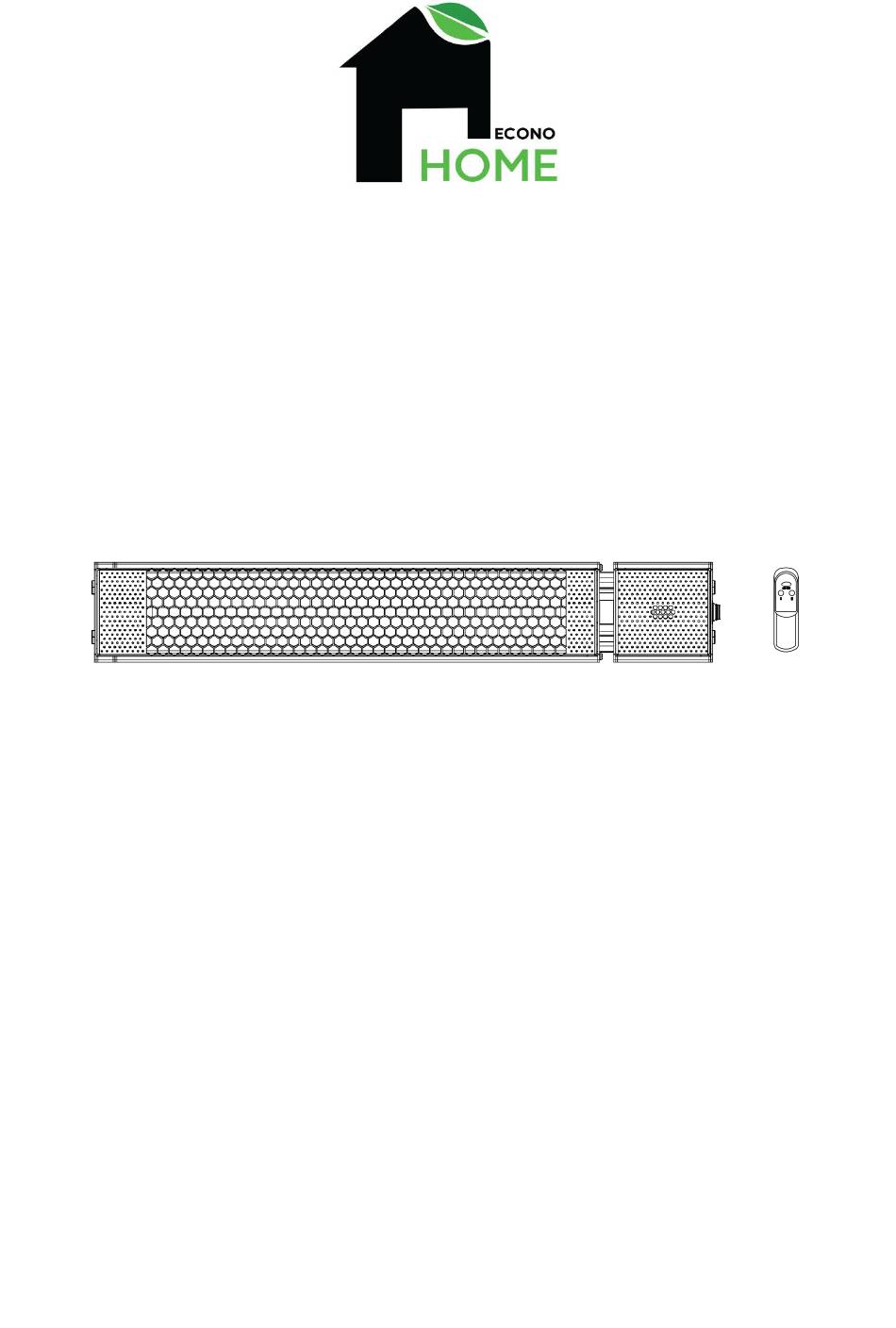

- Page 1 INSTRUCTION MANUAL Model no.: XD-Y 120V 1500W ASSEMBLY & OPERATION INSTRUCTION Please read carefully and Save this instruction for future reference...
- Page 2 Introduction The infrared heater contains a gold halogen lamp formed reflector heating system that provides even heat distribution. The infrared heater saves 30%-40% of electricity in comparison to traditional heaters. The infrared heater is commonly used for indoor or outdoor spot heating. Perfect for garages, outdoor patios, indoor pools or workshops. Warning READ CAREFULLY- The infrared heater is designed for safer operation.
- Page 3 Introduction The XD-Y halogen heater produces instant and comfortable heat like the sun. These robust and weatherproof heaters are designed for domestic and commercial heating applications within outdoor areas; it is mostly used for outdoor use only. Model XD-Y Voltage(V)
- Page 4 ASSEMBLY INSTRUCTIONS...
- Page 5 Tools Needed: * Pencil *Hammer *Level *Screw Driver *Power Drill and drill bits A wall-mounting bracket is provided with the heater which has been specifically designed to allow this product to be fitted to a wall or ceiling before drilling the holders for the wall/ceiling is solid and that there are no hidden water pipes or electric wires.
- Page 6 The heater must be installed at least 1.8 m above the floor...
-
Page 7: Remote Control Instruction
INSTALLATION WITH TRIPOD STAND-(optional) Noted: L shape bracket packed in heater carton box Accessories: Screw:N5*10mm 4pcs L shape bracket 2pcs REMOTE CONTROL INSTRUCTION OPERATING Product Key Function: 1. Turn ON/OFF the power 2. Press key function: press the button, and then press the heat levels (L1-L2-standby - off) Remote Control Function Button Function (Heater On) -
Page 8: Function And Operation
Heater Turns heater on or off Turns heater on to Power setting Level 1 (50%*power) Turns heater on to Power setting Level 2 (100%*power) Note: All ECONOHOME PATIO heaters and their remote controls have the same frequency, so it is possible to control several heaters with just one remote. - Page 9 Light display, but no heat: Bulb is damaged. Arrange for replacement bulb with local Dealer.
