ALLION UCPET Manual

Allion USB Charging/Protocol/Electrical Tester (UCPET)

Introduction:

Thank you for choosing UCPET product from Allion Labs, Inc.

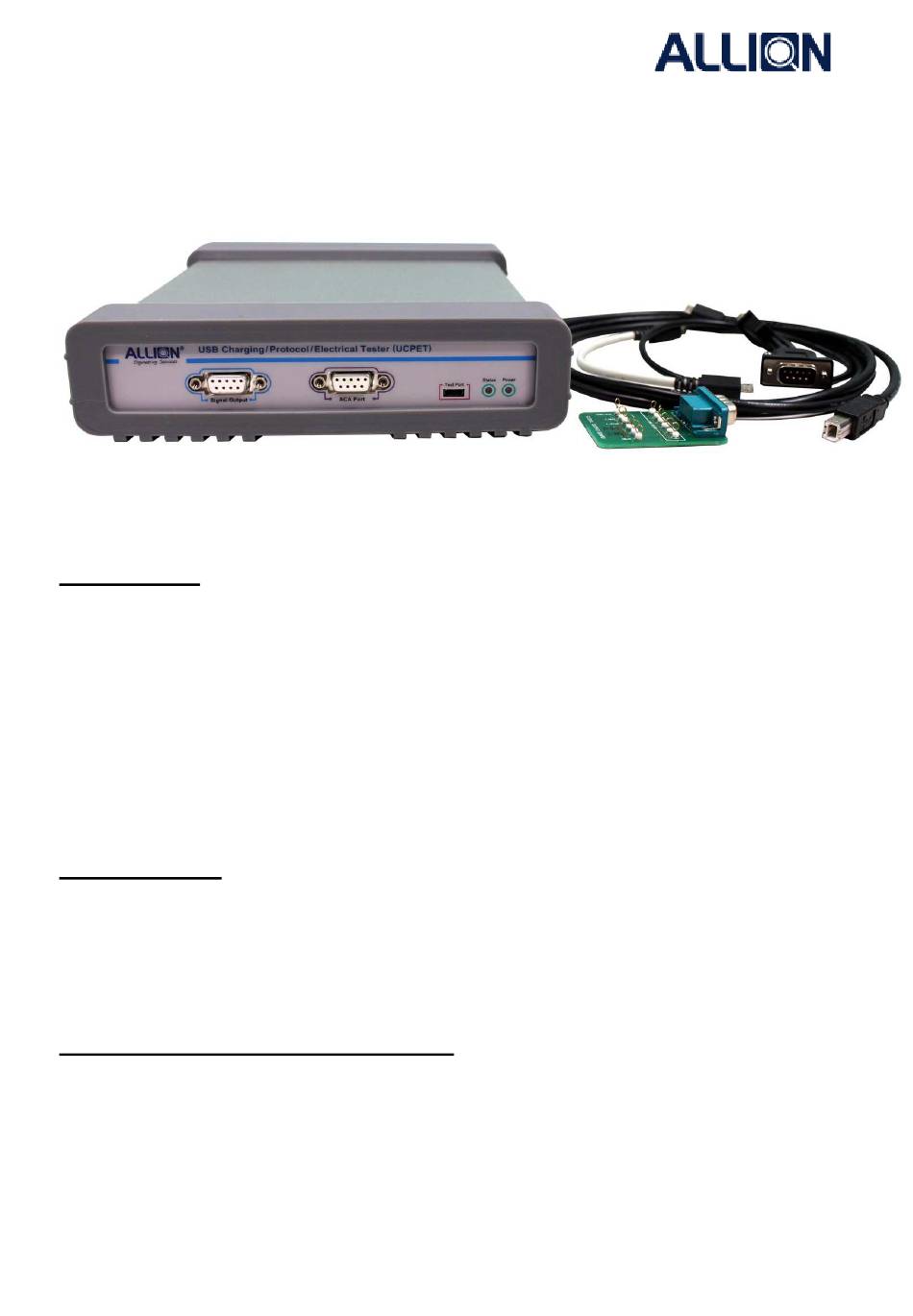

USB Charging/Protocol/Electrical Tester (UCPET) is the automatic test equipment designed
for USB Battery Charging Spec V1.2. It also has been approved by USB-IF as standard test
solution for USB Battery Charging V1.2. UCPET can automatically implement the test
categories of USB BC1.2 to verify if your product meets the specification requirements. With
features of easy-to-use manual setting and software for oscilloscope usage, UCPET is able
to assist you pass through USB BC1.2-related product development, debugging and
validation.

Main Function:

Approved by USB-IF as standard test solution for USB Battery Charging V1.2
Support Bypass Capacitance checking
Support BC v1.2 Implementation checking
Support BC v1.2 compliance test for DCP, CDP and PD categories

Easy for developing and debugging:

[Manual Operation]

User can use Manual Operation function to conduct UCPET directly. Under this mode,
UCPET can imitate DCP, CDP, SDP and etc. User can also turn on Soft Scope function at
the same time, observing Vbus, D+, D- and current signal waveform.
