Summary of Contents for ALLMARINE AMCW-250

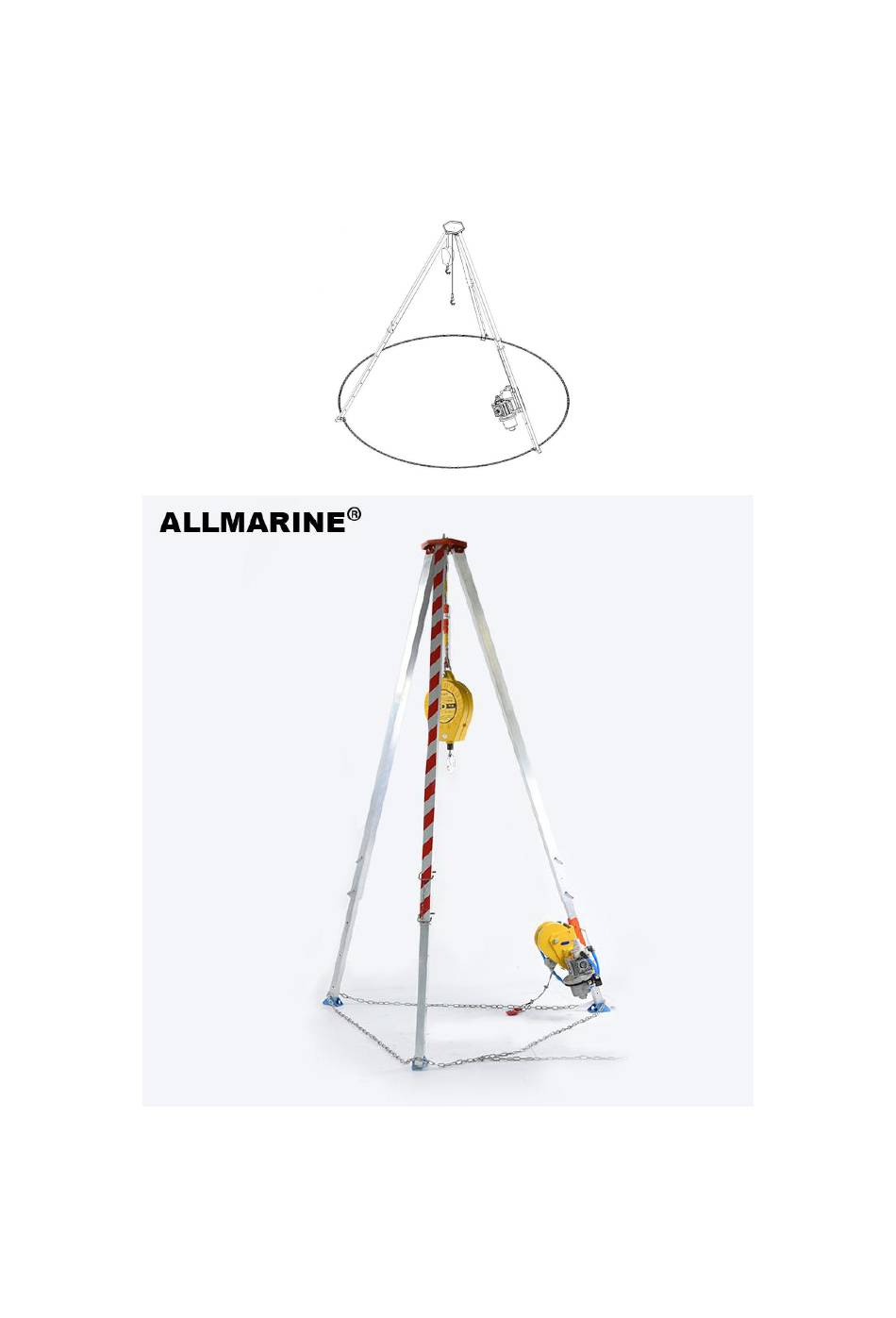

- Page 1 Operation Manual PNEUMATIC CASUALTY WINCH Shanghai Allmarine Industry Co.,Ltd. Block 4,Xinjian Yi Road, Jiading District, Shanghai Tel: 0086-21-59105395 Shanghai Allmarine Industry Co.,Ltd.
- Page 2 2. Be sure the Wire(Part 5) always in good condition. INTRODUCTION A) Automatic Brakes: The brakes systems will automatically stop when air source break off or overweight. B) Suitable for ship repair, oil drilling, warehouse, mines, worksho ps and other explosion-proof areas to use Shanghai Allmarine Industry Co.,Ltd.
- Page 3 TECHNICAL DATA 型号 Model Unit AMCW-250 提升重量 Lifting Capacity 检测重量 Test Capacity 钢丝绳直径 Wire Rope Dia. 钢丝绳长度 Wire Rope Length 气管内径 Air Hose Diam 耗气量 Air Consumption M3/min 工作气压 Working Pressure 重量 Weight 包装尺寸 CTN SIZE Shanghai Allmarine Industry Co.,Ltd.
- Page 4 1. The air motor should inspect by 3 moth. When maintenance, the lubrication should be injected from motor air inlet, then turning on the air source, making the motor running, repeat it three times and paying attention to the grease come out from oil outlet. Shanghai Allmarine Industry Co.,Ltd.
- Page 5 It must be washed and checked within stipulated period even in normal operation. 3 ． Wire rope should be inspected frequently, if found the abrasion exceeds the technical specification limits, it should be removed and replaced immediately Shanghai Allmarine Industry Co.,Ltd.
