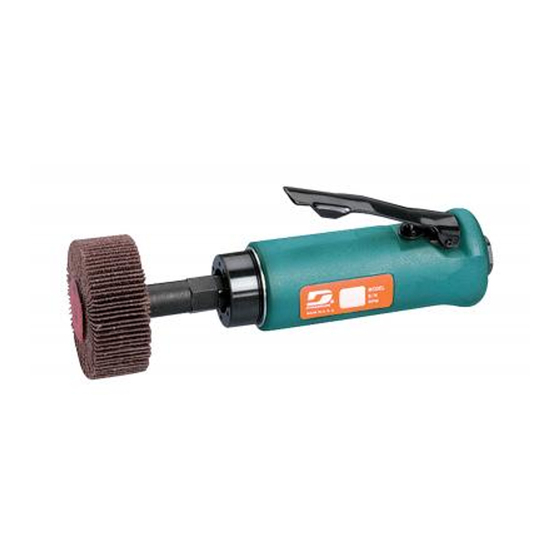

Model:
51130 – 18,000 RPM
WARNING
!

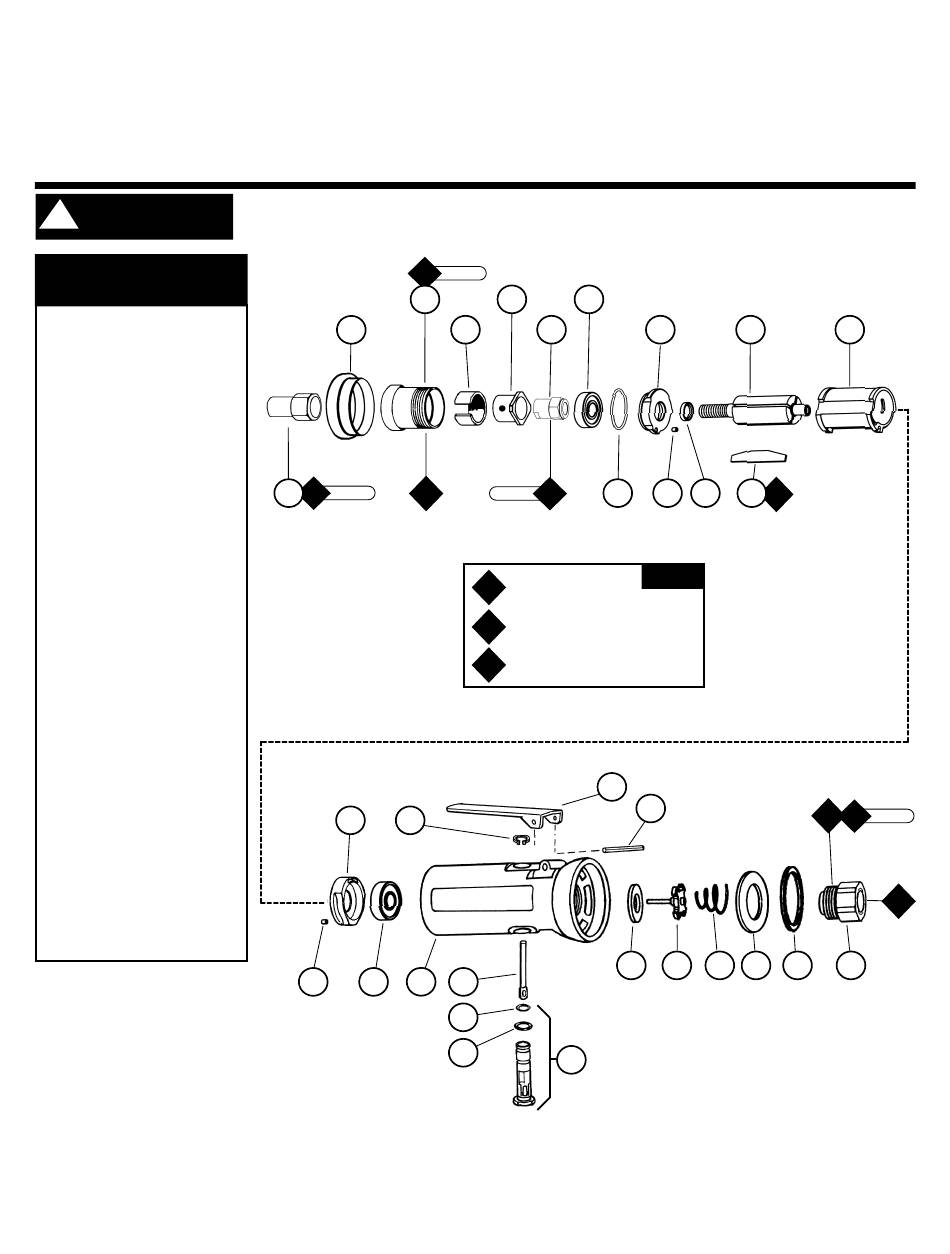

Index Key
No. Part # Description
1 51029 Flap Wheel Adapter
2 53175 Insulator Collar
3 04102 Lock Ring
4 04078 Felt Silencer
5 01125 Air Control Ring
6 04081 Rotor Nut
7 01007 Bearing
8 01121 Shim Pack (3/pkg.)
9 01008 Bearing Plate
10 50767 Pin (2)
11 01010 Rotor Spacer
12 01120 Rotor
13 01011 Blade Set (4/pkg.)
14 01013 Cylinder
15 01244 Bearing Plate
16 01015 Bearing
17 57342 Throttle Lever
01089 Safety Throttle Lever
18 01017 Pin
19 95558 Retaining Ring
20 01243 Housing
21 01477 Valve Stem
22 95730 O-Ring
23 01024 O-Ring
24 01247 Speed Regulator Assy.
25 01464 Seal
26 01472 Tip Valve
27 01468 Conical Spring
28 53190 Block Plate
29 96065 O-Ring
30 01494 Inlet Adapter
See inside for Important Operating, Maintenance and Safety Instructions.
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
T
3
2
A
1
T
34 N•m
15
19
10
16
20
.5Hp/Straight-Line/Front Exhaust
Dynastraight
34 N•m
5
7
4
6
T
17 N•m
8
O
Oil: O
= Air Lube
1
A
Adhesive: A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
17
21
22
23
24
Parts Page Reorder No. PD02•39
Effective July, 2002
Supersedes PD97•44
®
Flapper
Air Machine and Motor Parts
9
12
O
8
10
11
13
1
KEY
18
27
28
25
26
29
14
A
T
23 N•m
8
O
1
30
Advertisement
Table of Contents
Summary of Contents for Dynastraight 51130
- Page 1 Flapper Model: Air Machine and Motor Parts 51130 – 18,000 RPM Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air WARNING tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information.
- Page 2 Height Number HP (W) Level CFM/SCFM (LPM) Thread PSIG (Bars) Pound (kg) Inch (mm) Inch (mm) 51130 .5 (373) 18,000 81 dB(A) 3/24 (680) 1/4" NPT 90 (6.2) 1.8 (0.8) 7 (178) 1-3/4 (44) Additional Specifications: Hose I.D. Size 3/8" (10 mm)
- Page 3 Disassembly/Assembly Instructions - Dynastraight ® Flapper Important: Manufacturer’s warranty is void if tool is disassembled before warranty expires. Please refer to parts breakdown for part identification. Motor Disassembly: 1. Disconnect the tool from the air supply. 2. Hold the 01243 Housing in a vise with aluminum or bronze jaws. Secure it at the flats near the inlet area of the housing.
- Page 4 Disassembly/Assembly Instructions - Dynastraight ® Flapper (continued) 12. Wrap the 04078 Felt Silencer around the air control ring and install these into the 04102 Lock Ring. 13. Install the 53175 Insulator Collar onto the 04102 Lock Ring. 14. Apply a small amount of the #567 Loctite (or equivalent) and install the 04102 Lock Ring onto the 01243 Housing. (Torque to 34 N•m/300 in.- lbs.) Motor Assembly Complete.
