- Page 1 HOLOPLOT X1 Modul 80-S User Manual / Version 1.0 en...
- Page 2 12099 Berlin, Germany construed as a legal commitment. +49 (0) 30 4074 5812 HOLOPLOT reserves the right to change the content of info@holoplot.com this manual without prior notice. holoplot.com We recommend that you regularly check the HOLOPLOT website for the latest version.
-
Page 3: Table Of Contents
X1 Modul 80-S Providing Signal to the Subwoofer via Sublink Audio Module Overview The Loudspeaker Cabinet Operating the X1 Modul 80-S The Electronics Package Minimum System Setup Required The Display Panel Quick-Start Guide: Connecting the MD80-S to Power and Network... -
Page 4: How To Use This Manual
Read these instructions in their entirety before handling As you read these instructions, you will also encounter or using a HOLOPLOT Audio System. In particular, pay the following icons indicating complementary close attention to material related to safety issues. The... -
Page 5: Important Safety Instructions
115 - 240 V. Mains voltages exceeding the specified nominal Les tensions du secteur dépassant la plage nominale range can cause damage to the Audio Module. spécifiéepeuvent endommager le Module Audio. X1 MD80-S Manual 1.0 en Important Safety Instructions... - Page 6 18. Do not exceed the current rating of any branch circuit 18. Ne dépassez pas le courant nominal de tout breaker. Include a 25 % safety buffer. disjoncteur de dérivation. Incluez un tampon de sécurité de 25 %. X1 MD80-S Manual 1.0 en Important Safety Instructions...
- Page 7 être manipulé, installé et entretenu que par un personnel qualifié et formé. maintained by suitably trained personnel. 28. Refer all other servicing to HOLOPLOT authorized 28. Confiez toutes les autres opérations d’entretien service personnel. Servicing is required when the au personnel de service agréé...
- Page 8 (voir la fiche technique à la fin de ce manuel pour connaître le niveau de pression acoustique maximal que cet appareil peut produire). X1 MD80-S Manual 1.0 en Important Safety Instructions...
-
Page 9: The Holoplot Audio System
A HOLOPLOT Audio System consists of: • AUDIO MODULES — 3D Audio-Beamforming and Wave Field Synthesis loudspeakers • CONTROLLER — a rack-mountable device to manage HOLOPLOT Audio Modules • SOFTWARE SUITE — for design and simulation, control and monitoring, as well as... -
Page 10: Controller
CONTROLLER The HOLOPLOT Controller manages a HOLOPLOT The HOLOPLOT Controller is based on a Dell PowerEdge Audio System through a standard IP network, providing XR2 Industrial Rack Server and is a 19-inch 1U standard different functionalities: general system control, rack-mountable device. -
Page 11: Connected Services
CONNECTED SERVICES Given an active internet connection, a HOLOPLOT Audio System will have access to the HOLOPLOT Cloud and IoT-enabled HOLOPLOT services. The optional Connected Services allow the HOLOPLOT service team or HOLOPLOT affiliated service teams to access a HOLOPLOT installation for remote monitoring... -
Page 12: Holoplot Sound Field Control
HOLOPLOT Sound Field Control A HOLOPLOT Audio System can be deployed as single, or multiple arrays of HOLOPLOT Audio Modules. Each array of Audio Modules can simultaneously generate multiple sound fields based on two HOLOPLOT core technologies: 3D Audio-Beamforming and Wave Field Synthesis —... -
Page 13: Wave Field Synthesis Accurate Localization For Listeners
Such a virtual sound source usually has a point-shaped origin behind or in front of a HOLOPLOT Matrix Array, which in this case creates a spherically propagating sound field. -
Page 14: Matrix Array Size
MATRIX ARRAY SIZE A single HOLOPLOT Audio Module is capable of creating Sound fields created with HOLOPLOT Matrix Arrays are multiple optimized 3D Audio-Beamforming as well as controllable independently horizontally and vertically. Wave Field Synthesis sound fields. The larger an array... -
Page 15: X1 Modul 80-S

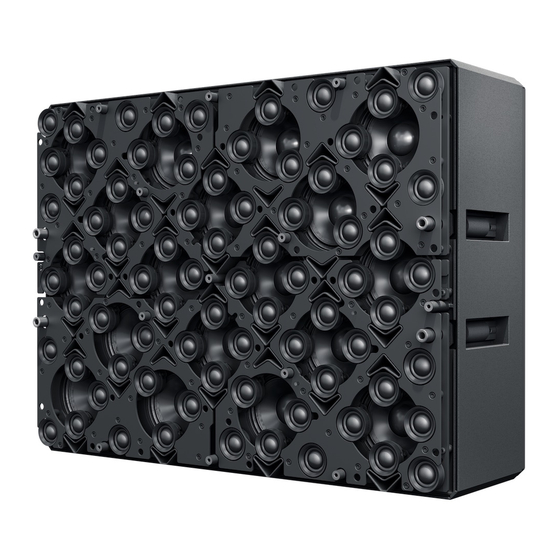

X1 Modul 80-S The Modul 80-S (MD80-S) is the larger of the two HOLOPLOT X1 Audio Modules. The three-way Audio Module integrates 80 loudspeaker drivers in its first two matrix layers, and an additional sensor-controlled subwoofer driver in its third layer - making the MD80-S an even more versatile product to be used whenever there is a need for extra punch in the lowest frequencies. -
Page 16: The Loudspeaker Cabinet
• 2x temperature sensors — each monitoring a high- frequency loudspeaker drivers’ magnet assembly • 2x orientation sensors — detecting Audio Module’s orientation X1 MD80-S Manual 1.0 en X1 Modul 80-S... -
Page 17: The Electronics Package
Audio and is off otherwise Module is powered on X1 MD80-S Manual 1.0 en X1 Modul 80-S... -
Page 18: The Connector Panels
Loudspeaker Cabinet of the MD80-S, and to standalone Subwoofer Modules offered by HOLOPLOT in the future. SubLink connectors carry HOLOPLOT proprietary audio networking protocols. -
Page 19: Installation Requirements And Recommendations
Audio Modules shall only be ‘stood’ on the bottom, top, or sides. They shall not be stood on the Electronics Package (rear of Audio Module) or front grille. Standing in any other way can damage the Audio Module. X1 MD80-S Manual 1.0 en Installation and Cooling Requirements... -
Page 20: Rigging The Audio Module
RIGGING THE AUDIO MODULE HOLOPLOT currently does not offer any general rigging options for X1 Audio Modules. The following information is intended to enable a third party to design a custom rigging system. All measurements given in mm 3D CAD files of the Audio Modules are available from HOLOPLOT on request. -
Page 21: Areas Not To Be Covered
22.0 19.5 AREAS NOT TO BE COVERED To ensure best performance of a HOLOPLOT Audio Module, a rigging system should not cover any of the loudspeaker drivers and subwoofer ports at the front of the Audio Module. -
Page 22: Distances Between Audio Modules
Optimal performance of Matrix Arrays requires a consistent spacing between loudspeaker drivers across multiple Audio Modules. Hence, when designing a rigging system for an array of X1 ≤ 50 mm Audio Modules, reduce the distance between individual Audio Modules to a minimum. The distance should not exceed 50 mm in any of the axes, horizontal and vertical. -
Page 23: Heat Generation And Dissipation
CLEARANCE REQUIRED AT THE BACK For connectors and cable dress, there must be at least 100 mm clearance on the back of an Audio Module. X1 MD80-S Manual 1.0 en Installation and Cooling Requirements... -
Page 24: Power Setup And Requirements
Audio Module remains within its 115 - 240 V operating range. In addition, the ground line must always be used for safety reasons and the line-to-ground voltage should never exceed 240 V. X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 25: Ac Power Connectors
Audio Module’s Electronics Package and the on the other end intended for use in subwoofer amplifier module in the Loudspeaker Cabinet. the region where the Audio Module will be operated. X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 26: Ac Power Out (Gray)
Do not connect at Power IN ≥ 208 V under load AC Output: 240V 9.5A 208V AC Input Range: 115–240 V 50–60 Hz AC Input: 115 V 1.1 A 240 V 0.9 A X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 27: Ac Power Cable Requirements
Audio Module or shorten nominal range of 115 - 240 V at 50 or 60 Hz. Make sure component life. that your AC main connections are capable of satisfying the power rating. X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 28: Power States And Current/Power Draw
The current draw of the Electronics Package and the current draw of the subwoofer amplifier module are not in phase. Therefore, current draw when powering both from a single power source is different than the sum of the values for powering each individually. X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 29: Protection Circuitry
The Audio Module’s intelligent AC power supply automatically selects the correct operating voltage (allowing the Audio Module to be used internationally without manually setting voltage switches) and eliminates high in-rush currents with a soft-start power-up. X1 MD80-S Manual 1.0 en Power Setup and Requirements... -
Page 30: Network Setup And Requirements
Network Network Primary Secondary (optional) HOLOPLOT Controller Primary Audio Modules HOLOPLOT Controller Secondary (optional) Audio Modules 3rd-party Dante Switch with Switch with Audio source DHCP DHCP Server Server X1 MD80-S Manual 1.0 en Network Setup and Requirements... -
Page 31: Networking Requirements
Audinate Dante networking technology. Network configuration • All HOLOPLOT devices of one system must be networked in the same VLAN. • In case of other devices on the same network, VLANs should be used in order to separate the traffic on layer 2 logically. -
Page 32: Providing Signal To The Subwoofer Via Sublink
CAT6 cable between the Electronics Package and the subwoofer amplifier module needs to be established before powering up the Audio Module. The maximum CAT6 cable length supported by SubLink is 15 meters. X1 MD80-S Manual 1.0 en Network Setup and Requirements... -
Page 33: Operating The X1 Modul 80-S
HOLOPLOT Controller running the main system Modul 80-S is: management service • PC or Mac running HOLOPLOT Plan • PC, Mac, or tablet running HOLOPLOT Control • Third-party audio source with Dante audio networking connectivity • Networking appliances: Ethernet switch and... -
Page 34: Quick-Start Guide: Connecting The Md80-Sto Power And Network
Power OUT must not be used. Therefore, a separate 50–60 Hz AC Input: 115 V 1.1 A power line to the AC Power IN on the connector 240 V 0.9 A panel of the Loudspeaker Cabinet is required. X1 MD80-S Manual 1.0 en Operating the X1 Modul 80-S... - Page 35 208V AC Input Range: 115–240 V 50–60 Hz AC Input: 115 V 1.1 A 240 V 0.9 A For more information on redundancy please refer to the Network Design section. X1 MD80-S Manual 1.0 en Operating the X1 Modul 80-S...
-
Page 36: Playing Back Audio On The Md80-S
For detailed instructions on using the SOURCE VIA DANTE Dante Controller, including Multicast Transmit Flow configuration, please Each X1 Audio Module is a Dante-enabled device fitted refer to the Dante Controller User with its own Dante module. Therefore, channel- or Guide by Audinate. -
Page 37: Monitoring And Controlling The Md80-S During Operation
You can access and use HOLOPLOT Control from a tablet device, using HOLOPLOT Control, a browser-based interface, is used the internet browser. to manage, update, and monitor a HOLOPLOT Audio System installation. X1 MD80-S Manual 1.0 en Operating the X1 Modul 80-S... -
Page 38: Accessing Holoplot Control
ACCESSING HOLOPLOT CONTROL BLINKING There are two options to access HOLOPLOT Control: HOLOPLOT Control allows the user to light up the four LEDs located at the front of the Loudspeaker Cabinet. This • Enter https://holoplot.local/ in the address bar of allows for easy locating of Audio Modules within the venue. -
Page 39: Service
MAINTENANCE AND CARE HOLOPLOT CONNECTED SERVICES There are no user-serviceable parts inside the Audio A HOLOPLOT X1 Audio Module is a remote-accessible, Module. In case of any damage, contact HOLOPLOT updateable IoT device. This means that you have access Customer Support. Refer servicing only to qualified to the following features: service personnel authorized by HOLOPLOT. -
Page 40: X1 Modul 80-S Data Sheet
HOLOPLOT 3D AUDIO-BEAMFORMING TECHNOLOGY Number of beams Steering angle and Up to 12 beams in parallel per X1 Matrix Array: • 8 fully user-configurable parametric beams and virtual sources • 4 beams providing optimized coverage over a predefined audience area Vertical Steering angle and opening angle user adjustable (0.1°... - Page 41 LF: 16x 500 Wpk HF: 64x 240 Wpk PROCESSING Type High-performance Field Programmable Gate Array (FPGA) computing the HOLOPLOT proprietary digital signal processing algorithms for 3D Audio-Beamforming and Wave Field Synthesis Dual-core ARM® Cortex™-A9 running HOLOPLOT OS, a Linux-based, distributed...
- Page 42 90% at +60 °C to 12,000 m MSL Operating +10 °C to +45 °C to 70% at +45° C to 2,000 m MSL (non-condensing) MECHANICAL DETAILS All measurements given in mm FRONT SIDE BACK X1 MD80-S Manual 1.0 en Data Sheet...
-
Page 43: Manufacturer's Declarations
D’industrie Canada: Cet appareil numérique de la classe likely to cause harmful interference in which case the A est conforme à la norme NMB-003 du Canada. user will be required to correct the interference at their own expense. X1 MD80-S Manual 1.0 en Manufacturer’s Declarations... - Page 44 Holoplot GmbH Ringbahnstr. 12 (10-14) / A2 12099 Berlin, Germany +49 (0) 30 4074 5812 info@holoplot.com holoplot.com X1 MD80-S Manual 1.0 en...
