AYVAZ AZ003 Quick Start Manual

UPRIGHT SPRINKLERS AND PENDENT SPRINKLERS
MODEL: AZ003 / AZ004 / AZ005 / AZ006
STANDARD SPRAY, STANDARD / QUICK RESPONSE, 5 / 3 mm
BULB TYPE, K5.6, 1/2" CONNECTING THREAD

GENERAL DESCRIPTION

T
he AZ003/AZ004 Standard/Quick
Response Upright and AZ005/AZ006
Standard/Quick Response Pendent
Sprinklers (Ref. Figure A) are automatic
sprinklers of the frangible bulb type. They are
"standard/quick response – standard orifice
spray sprinkler" intended for use in fire
sprinkler systems designed in accordance
with the standard installation rules
recognized by the applicable Listing or
Approval agency (e.g., UL Listing is based
on NFPA 13 requirements). The Upright,
Pendent Sprinklers all produce a
1-13/32" ( 35.5mm )
1/2" PIPE THREAD
UPRIGHT
1.SSU DEFLECTOR 2.SET SCREW 3.GLASS BULB 4.FRAME 5.BUTTON 6.SPRING SEAL 7.SSP DEFLECTOR 8.STANDARD ESCUTCHON

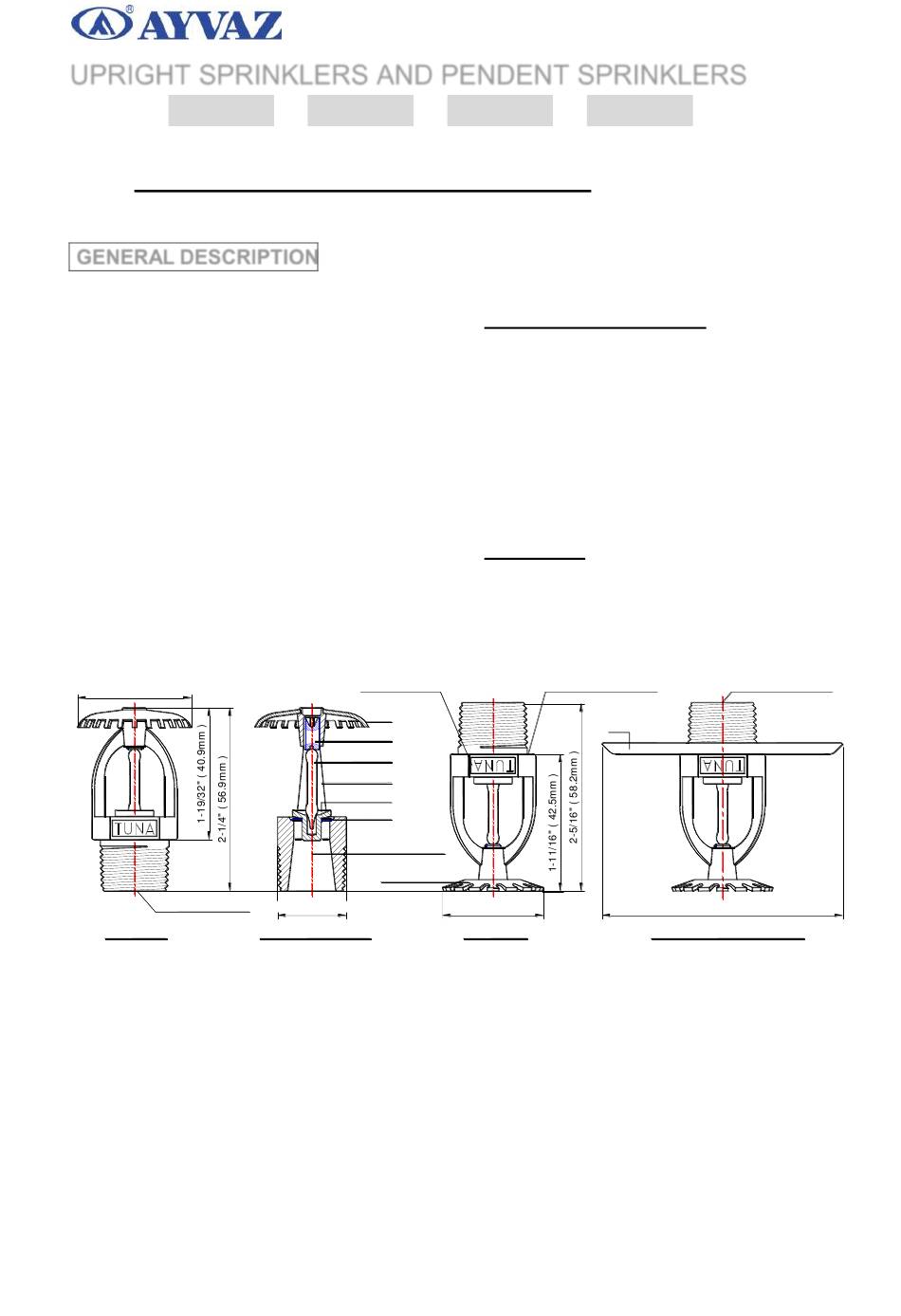

FIGURE A : MODEL AZ003/AZ004 UPRIGHT & MODEL AZ005/AZ006 PENDENT SPRINKLERS
Atatürk Organize Sanayi Bölgesi Mustafa İnan Cad. No: 36 Hadımköy / İstanbul
WRENCH FLAT
1
2
3
4
5
6
CENTERLINE OF
WATERWAY
7
27/32" ( 21.8mm )
CROSS SECTION
Hacı Ayvaz Endüstriyel Mamuller San. ve Tic. A.Ş.
Tel: +90 (212) 771 01 45 / Faks: +90 (212) 771 47 27
E-mail: info@ayvaz.com
www.ayvaz.com
hemispherical water distribution pattern
below the deflector.

SPRINKLER OPERATION

D
uring a fire conditions, the thermal-
sensitive liquid in the glass bulb expands,
causing the bulb to shatter, releasing the
button and spring seal assembly. Water
flowing through the sprinkler orifice strikes
the sprinkler deflector, forming a uniform
spray pattern to extinguish or control the fire.

COVERAGE

F
or coverage area and sprinkler placement,
refer to NFPA13 standards.
ESCUTCHEON RING
SEATING SURFACE
8
1-1/4" ( 31.5mm )
PENDENT
1/2" PIPE THREAD
2-15/16" (75mm )
TYPICAL INSTALLATION
