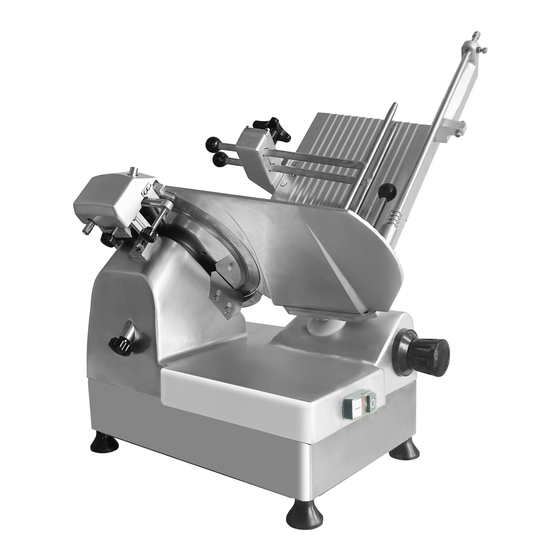

Summary of Contents for Anhui Hualing Kitchen Equipment HB-300D

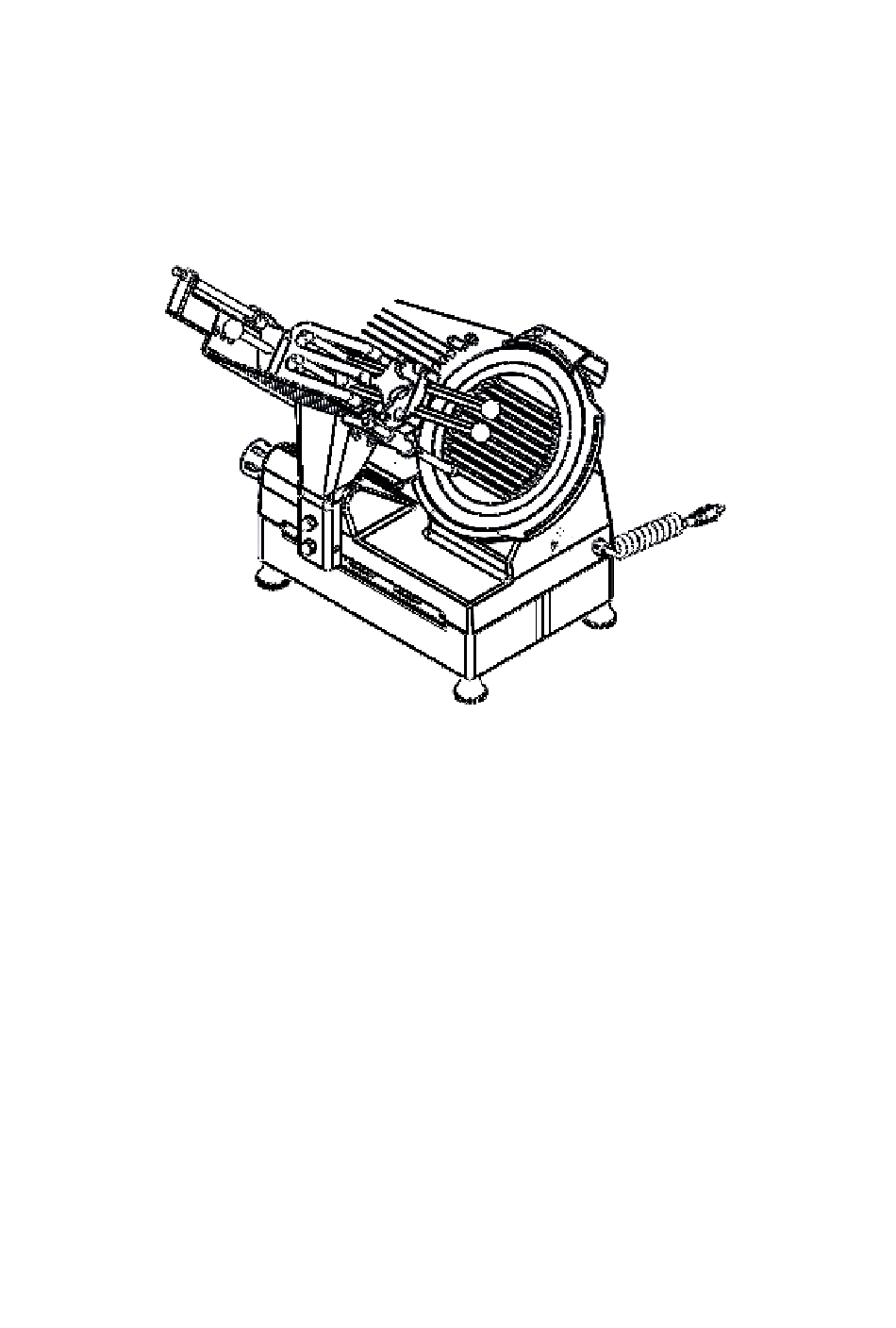

- Page 1 OPERATION INSTRUCTION FOR AUTOMATIC MEAT SLICER MODEL:HB-300D Anhui Hualing Kitchen Equipment Co.,Ltd. ISO9001:2008 ISO14001:2004...
- Page 2 FOREWORD Thank you for choosing the semi-automatic food slicer produced by our company. Based on the advantages of similar products at home and abroad, the food slicing machine made by our company is more convenient to operate and safer to use. This slicing machine is a special machine for food slicing.
- Page 3 INDEX MATTERS NEED ATTENTION MAIN TECHNICAL PARAMETERS DIRECTION FOR USE 3.1 SITE PLACE 3.2 UNPACKING 3.3 SLICER PARTS AND THE POSITION 3.4 LUBRICATING 3.5 POWER CORD CONNECTION 3.6 IDDLE RUNNING TEST 3.7 SHARPEN 3.8 ADJUSTMENT OF THICKNESS OF FOOD SLICES 3.9 MELTING MEAT 3.10 CUT INTO SLICES 3.11 REPLACE BLADE...
-
Page 4: Matters Need Attention
1 MATTERS NEED ATTENTION ● The power supply used must meet the power requirements indicated on the signage. Improper use will cause fire or serious failure of the machine. ● The use of this machine must be reliably grounded , otherwise it will lead to the risk of electric shock. ●... -
Page 5: Direction For Use
Φ300 HB-300D 550W 0-15 3 DIRECTION FOR USE 3.1 SITE PLACE The slicer should be placed on a solid and flat platform or desktop. Set aside plenty of space for the slicer to operate, maintain and ventilate. Slicing machine power requirements: please ensure that the power supply and nameplate parameters are consistent. - Page 6 3.4 LUBRICATING 3.4.1 Flip the fuselage, fill the circular guide rail and square guide surface with lubricating oil, once every 7 working days. 3.4.2 Add lube oil to the block slide rod. Round Note: use sewing oil for lubricating oil. guide guide Turn off the machine and unplug the...
- Page 7 the stud elongation can be adjusted according to the diameter of the blade. 3.7.4 The sharpener is equipped with two grinding wheels, one is for sharpening , the other one is for the repair of the edge. Press the starting button to rotate the blade and press the end of grinding shaft by hands, making grinding stone touch the blade, and rotating blades driven wheel, then the blade can be sharpened.
- Page 8 resistance may too large and likely to cause motor stall, or even burn the motor, so the meat must be melt (put frozen meat in the incubator, the process that the temperature of the meat both inside and outside rise slowly called melting the meat.）...
- Page 9 3.11 REPLACE BLAD Sharpe Knife disc Pull 3.11.1 Removal of knife disc Remove the meat stand from the blade, pull down the lever from the back of the machine, and move away the blade cover 3.11.2 Remove the tool grinder. 3.11.3 Take blade down Unscrew the 3 fastening screws and remove the blade evenly and forcefully.
- Page 11 Name Name Name Grinding stone cover Blade shaft cross handle Grinding stone shaft Blade shaft belt Meat carrier Spring Blade sheath Slider rod top support Smooth stone wheel Water proof ring Handle bar spring Skeleton oil seal Pressing block knob blade Slider rod knob...
-
Page 12: Troubleshooting
Household and similar Appliances", GB4706.38 "Safety of Household and similar Appliances." and the company product standard Q/DHL002-2009 <slice machine technical requirements>, it has passed the inspection and can leave the factory INSPECTOR: SERIAL NO.: OUT DATE: Anhui Hualing Kitchen Equipment Co.,Ltd.
