Nest swing

Advertisement

NEST
SWING
Original
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the littleTOWN GARDEN FAIR and is the answer not in the manual?

Questions and answers

Summary of Contents for ALDI littleTOWN GARDEN FAIR

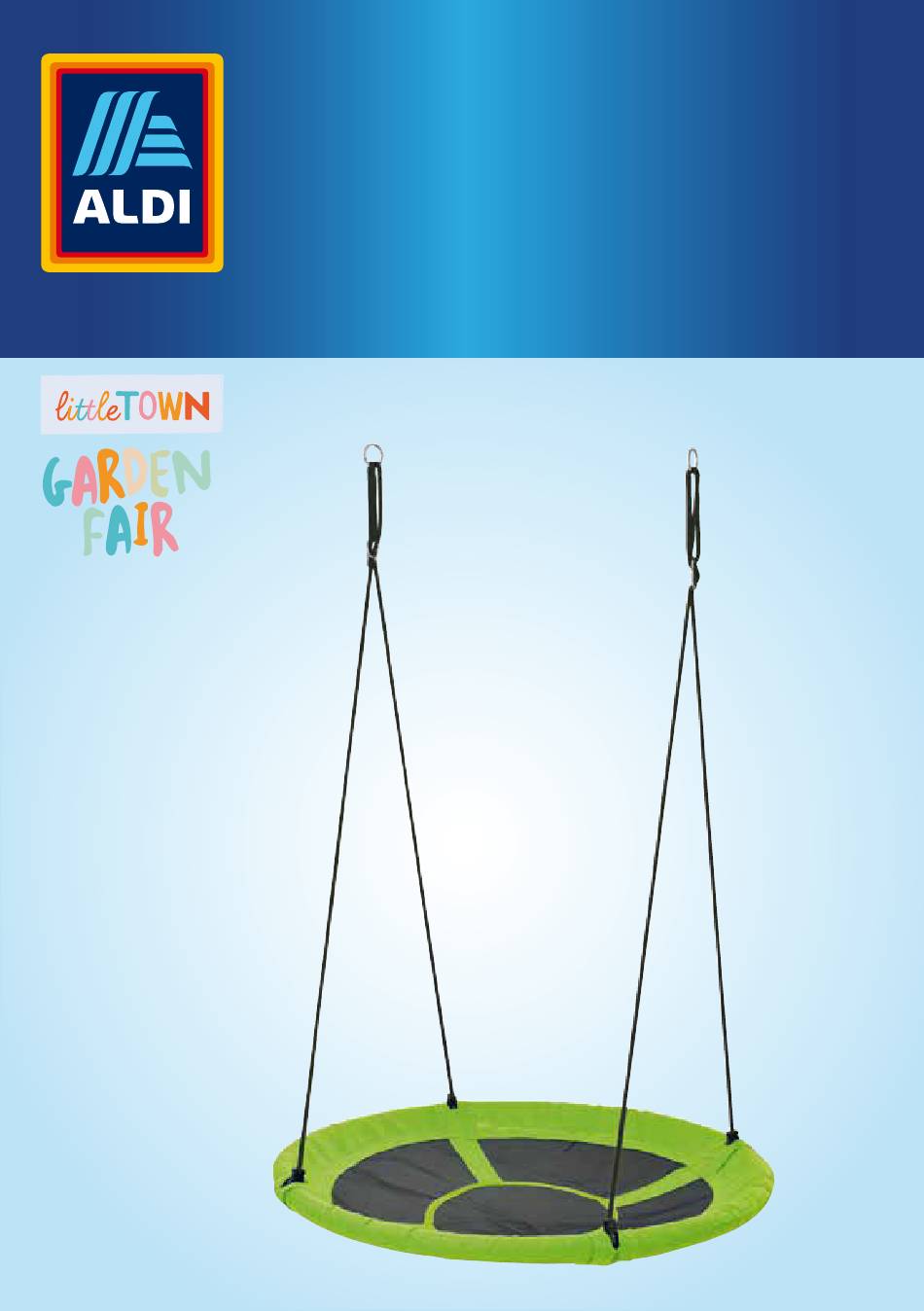

  • Page 1 Original Instructions NEST SWING...
  • Page 2: Table Of Contents

    Instruction Manual Table of Contents Scope of delivery/parts .....................3 Assembly of the nest swing ......................4 Assembly /disassembly of the nest swing ..................5 General ..........................6 Read the operating instructions, and keep them ready for use ..........6 Explanation of symbols .........................6 Safety ..........................7 Intended use ...........................
  • Page 3: Scope Of Delivery/Parts

    Instruction Manual Scope of delivery / device parts Sitting surface of the nest swing 4 frame tubes with padding 2 ropes with plastic supports Risk of injury! Improper handling of the nest swing may cause serious injury. Assembly steps Assemble the nest swing by using the following instructions and drawings. Carry out all assembly steps completely in the specified sequence.
  • Page 4: Assembly Of The Nest Swing

    Instruction Manual Assembly: 1. Lay the seat surface on the floor and open the tabs with the Velcro straps. 2. Push the 4 frame tubes with the padding into the pockets provided on the seat one after the other. 3. Make sure that a thicker tube end with a hole follows a pipe end with a spring button.
  • Page 5: Assembly /Disassembly Of The Nest Swing

    Instruction Manual 5. Slide the plastic suspension of the rope from above through the opening of the tab with the Velcro straps. Then use side II (see mark- ing) to attach the suspension to the thicker tube. 6. Now connect the tubes to each other, while pressing down the spring pressure button on the thinner end of the tube.
  • Page 6: General

    Instruction Manual General Read the operating instructions and store them This instruction manual is part of the nest swing. It contains important information on the initial set up and handling. Carefully read the operating instructions, especially the safety instructions, before using the nest swing.
  • Page 7: Safety

    Instruction Manual Safety Intended use WARNING! WARNING! Maximum load: 150 kg. WARNING! Suitable for children aged 3 and over. WARNING! Intended for outdoor use. WARNING! Only suitable for home use. For domestic use only. 2 adults are required for the assembly. Only use the nest swing as described in these operating instructions.
  • Page 8: Attachment

    Instruction Manual Safety guidelines If you make any changes to your nest swing, it must be approved by the manufacturer and carried out in accordance with the manufacturer's instructions. Caution: Only original parts may be used; these are available from the manufacturer. Installations must be completed in accordance with the instruction manual.
  • Page 9: Height Adjustment

    Instruction Manual NOTE! The eyelet of the support must be placed transversely to the swing- ing direction. This prevents excess wear when swinging. NOTE! The suspension points must be spaced at least a swing seat 118.8 cm width (+10 cm) apart from each other. The distance between the swing seat and the floor must be at least 35 cm;...
  • Page 10: Maintenance Of The Swing

    Instruction Manual NOTE! Maintenance of the swing Before each use of the swing, the supervisor should carry out the following tasks and repeat them at least once a month: Clamp the tubes, check the swing seats, chains, ropes and other accessories for signs of wear and tear;...
  • Page 11 Instruction Manual...
  • Page 12 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV92SH. ALDI STORES (IRELAND) LTD.
