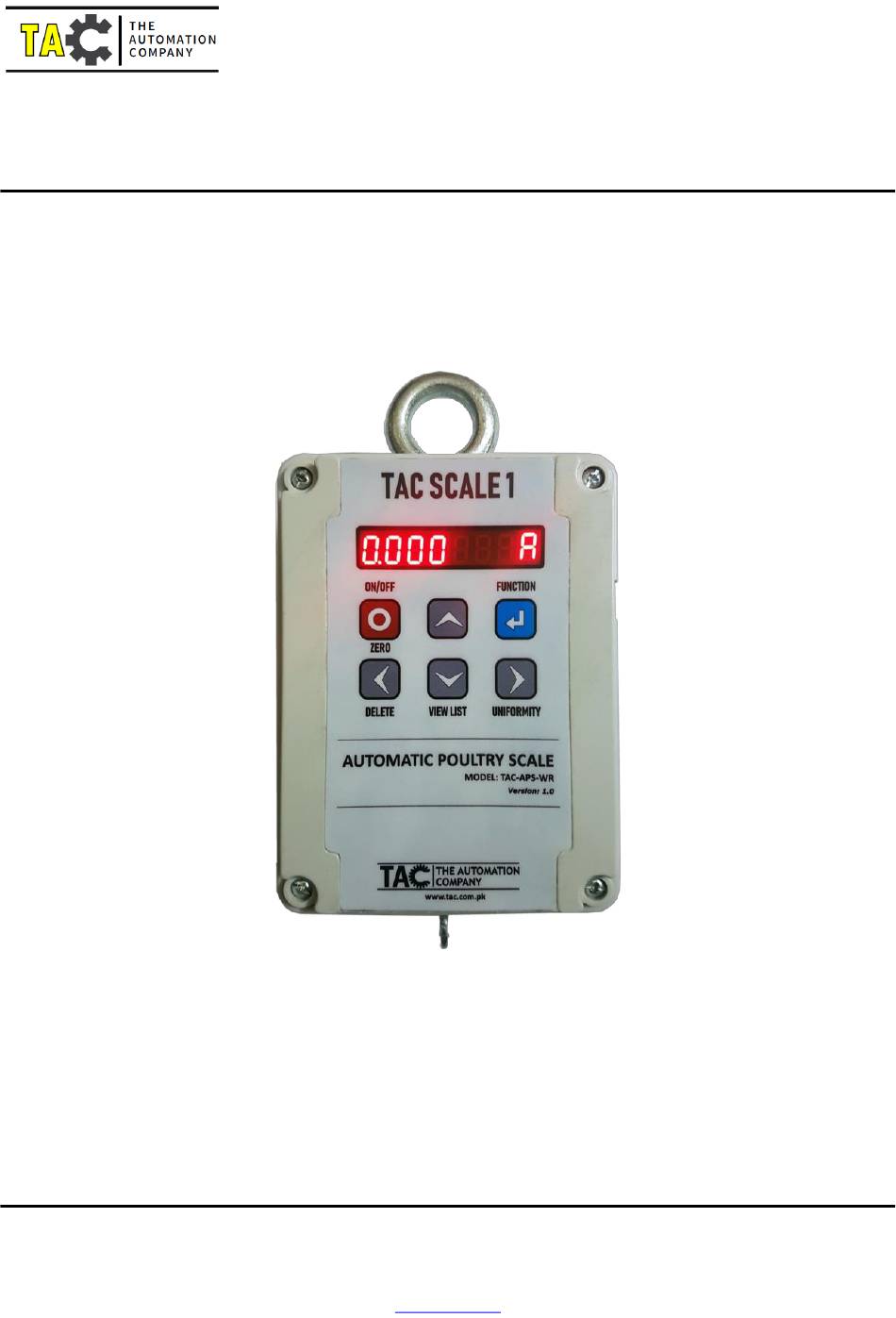

User Instruction Manual
TAC SCALE 1
MODEL: TAC-APS-WR
Capacity: 30Kg
Resolution: up to 1 gram
Charging Specs: 5.0V, 2.5A
PORT: USB TYPE-B for charging and PC Communication
3.5mm Jack for Thermal Printer
THE AUTOMATION COMPANY
F-453, Satellite Town, Rawalpindi, Pakistan. Contact#: 03005011996
www.tac.com.pk
Advertisement
Summary of Contents for TAC TAC-APS-WR
- Page 1 User Instruction Manual TAC SCALE 1 MODEL: TAC-APS-WR Capacity: 30Kg Resolution: up to 1 gram Charging Specs: 5.0V, 2.5A PORT: USB TYPE-B for charging and PC Communication 3.5mm Jack for Thermal Printer THE AUTOMATION COMPANY F-453, Satellite Town, Rawalpindi, Pakistan. Contact#: 03005011996...
-
Page 2: Operation
AUTO POWER OFF TAC Scale will be powered off automatically if no button pressed and weight reading is stable for a defined period of time in section 2.7. (Power off timer will be reset if any button pressed or weighing changed) 1.4. - Page 3 This screen will appear f weight exceeds the standard weight defined in section 2.2 & 2.3. the overweight count will increment. 1.9. DELETE THE LAST RECORD IN STATISTICAL MODE: To delete the last saved record, simply press button. It will ask for confirmation 1.530Kg is last weight to be deleted.
- Page 4 Select this option and press key to print the Statistics summary or press to go to the next screen. Sample print is shown below: 1.12.7. PRINT STATISTICS WITH WEIGHT LIST (PrInt FL) Select this option and press key to print the Statistics with a complete weight list of selected pen or press to go to the next screen.
- Page 5 2.6. HOUSES STARTING POINT: (SEt HSF) Press to select the Housing start point by using & keys and Press to save changes or Press to discard and go back. Currently, up to 40 houses starting point can be selected from this menu. 2.7.
-
Page 6: Saving Mode
If you are not sure Press to discard and go back. If you are pretty sure Press to calibrate and save changes. (Calibration done screen will be shown for two seconds, and then the Main screen will appear) 2.13. AUTO OFF TIME Scale auto-off time can be selected from here in seconds. - Page 7 Time Format is Hour/Minutes/Seconds. After adjusting the desired parameter of time Press to save time, or Press to discard the process and go back to the settings. 2.20. SET HOUSE Press to select the House number by using & keys and Press to save changes or Press to discard and go back.
-
Page 8: Thermal Printer
POWER AND COMMUNICATION CABLE: 4.4. PRINTER SETTINGS AND SPECIFICATIONS Thermal Printer settings will be as follows: Baud Rate Rate settings: (19200, n 8,1). Serial Port (RS232) Paper width: 80mm ________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ THE AUTOMATION COMPANY F-453, Satellite Town, Rawalpindi, Pakistan. Contact#: 03005011996 http://tac.com.pk/...
