TH10A-MDF-019

Infrared thermometer

User Manual

Mode：TH10A

Shenzhen Yolanda Technology Co., Ltd.

Table of Contents

Need help?

Do you have a question about the TH10A and is the answer not in the manual?

Questions and answers

Summary of Contents for Yolanda TH10A

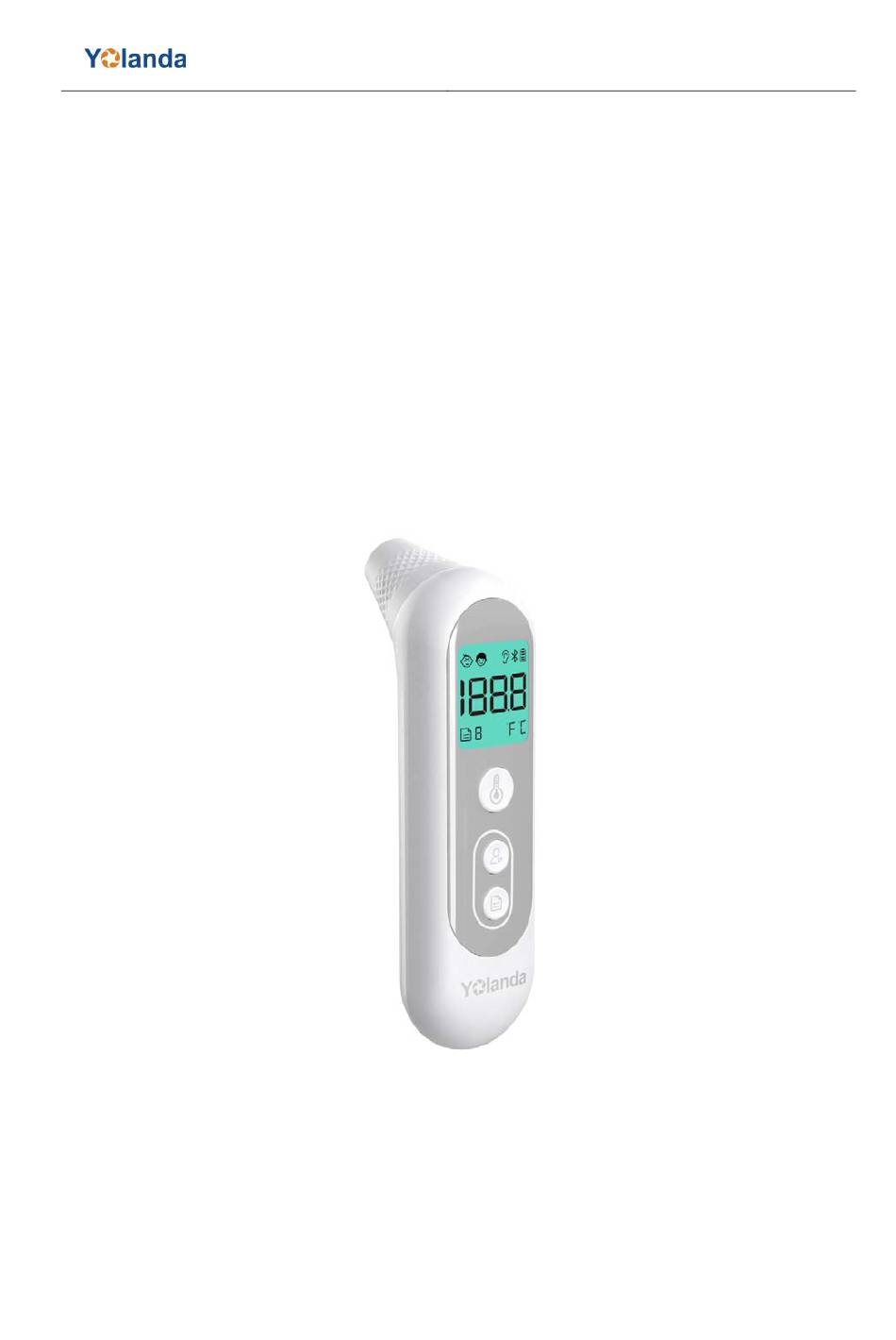

Page 1 TH10A-MDF-019 Infrared thermometer User Manual Mode：TH10A Shenzhen Yolanda Technology Co., Ltd.
Page 2 Thank you for choosing the infrared thermometer of Shenzhen Yolanda Technology Co., Ltd.. With the unique technology, the infrared thermometer TH10A of Yolanda can give the result of stable measurement. The product will self-test every time when it starts up to make sure the normal operation and accuracy.
Page 3: Table Of Contents
Table of Contents 1. Product Overview ......................4 2.Warning instructions and precautions ................5 3.Symbol description ......................5 4. Safety Precautions ......................6 5. Description of the TH10A ....................8 6. Specifications ........................10 7 wireless technology ......................12 8. Battery Installation/Replacement..................14 9 Instruction for use ......................15 10.
Page 4: Product Overview
1. Product Overview Thank you for choosing our Infrared Thermometer. The Infrared Thermometer TH10A is used to measure objects temperature based on the relationship between temperature and measurable infrared radiation. Simply aim the unit’s probe at the surface of objects to obtain a quick and accurate temperature.
Page 5: Warning Instructions And Precautions
2.Warning instructions and precautions The warning signs and graphic symbols in the manual are intended to enable you to use the product safely and correctly and to prevent harm to you and others.Warning marks and graphic symbols are described as follows: Warning/precautions symbols Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Page 6: Safety Precautions
4. Safety Precautions Warnings - Please put the Thermometer out of children reach. - Do not take readings less than half an hour after a meal, exercise, a bath, take medicine or time spent in a particularly hot or cold environment. - Do not measure the sites of scarred tissue or tissue compromised by skin disorders, because sensing body temperature from sites of scarred tissue or tissue compromised by skin disorders may be not correct.
Page 7 - Lay persons shall be note that the use of this thermometer is not intended as a substitute for consultation with your physician. It is dangerous for user to perform a self-evaluation and self- treatment based on the measuring results, consult your doctor if you suspect a fever. - As ear wax can affect the measurement, you should clean the ear before measuring ear temperature.
Page 8: Description Of The Th10A
- Forehead temperature measurement: Depending on various skin types and thickness, there may be temperature difference in forehead temperature measurement. Description of the TH10A 5.1 Intended use / Indication for use The infrared thermometer is intended for the Intended use / Indication for use:...
Page 9 Name Name Probe ① ⑥ Measuring button Ear/forehead mode switch ② ⑦ Mode button Battery cover ③ ⑧ Memory button Unit switch button ④ ⑨ Forehead cap Battery compartment ⑤ ⑩ 5.3 LCD display instruction 9 of 46 page...
Page 10: Specifications
12Y-down mode 6. Specifications Device name Infrared thermometer Model TH10A Measurement mode Ear mode, Forehead mode； Both the forehead and ear mode is adjusted mode Both the forehead and ear mode include the sub- mode of 12Y-down mode and 12Y-up mode.
Page 11 temperature. Clinical bias (△cb)of ear and ±0.1℃ (±0.2 ℉ ) forehead mode (Calculate according to ISO 80601-2-56-2017+A1:2018) Limited of agreement (LA)of ear ＜2.0℃ (＜ 0.4℉ ) and forehead mode (Calculate according to ISO 80601-2-56-2017+A1:2018) ±0.3℃ (± 0.5℉) Clinical repeatability Measurement range For ear and forehead mode: 32.0℃...
Page 12: Wireless Technology
This infrared thermometer meets requirements established in ASTM Standard (E1965-98). Full responsibility for the conformance of this product to the standard is assumed by Shenzhen Yolanda Technology Co., Ltd.(Address: Room 201,Jinfulai Building, No.49-1, DabaoRoad,Dalang Area,Xinan Street,Baoan, Shenzhen, China).
Page 13 Bluetooth Up to 10 meters Valid Transmission Smart phones with Bluetooth 4.0 or above version, and, Receiver Smart phones running Android 6.0 and iOS 10 or above system Signal transmission 2.4G Bluetooth Frequency 2.402-2.480 GHz Output power MAX +6dBm 7.2 Wireless Security The Bluetooth App database include a Hash algorithm to protect data.
Page 14: Battery Installation/Replacement
Possible effects from RF sources in the vicinity of the device  When using infrared thermometer with a smart device, relocate the devices away from sources that may interfere with the Bluetooth. The presence of other devices that may create radio frequency interference (RFI) may result in loss of Quality of Service of the Bluetooth connection.
Page 15: Instruction For Use
Notes: ● The two batteries supplied with the product can ensure the power consumption for at least 1000 times temperature measurements. ● When changing the batteries, use batteries of the same type and capacity. ● Always replace all batteries at the same time. ●...
Page 16 Make sure that the probe and the ear canal are clean. As the ear canal is slightly curved, please pull the ear slightly backwards before inserting the probe.This is important so that the probe can be pointed directly at the eardrum. 4) Press the “...
Page 17 Been exposed to very hot or very cold temperatures, or  Been recently swimming or bathing  In these cases, remove the individual from the situation and wait 30 minutes prior to taking a temperature. - Do not remove the thermometer out of the ear canal until you hear beep at the end of the measurement.
Page 18 3) Aim measuring head with the forehead cap towards the middle part of forehead, make sure that the distance between probe tip and forehead is 1~3cm. Press the “ ” button for about 1 seconds then release the button, about 1 second later, the measured value will appears on the display with a “bi---”...
Page 19 - Do not use 12Y-up mode to measure the body temperature of people aged 12 and below, Do not use 12Y-down mode to measure the body temperature of people over 12 years old, otherwise the measurement results may be slightly biased. Notes: - Before measuring forehead, make sure there is no hair, sweat, cosmetic, perspiration or hat on it.
Page 20 This device stores the last 9 sets temperature measurements. I f you want to get memory data, please following the below to get it. 1) At turning on status, press the button, to enter the memory query mode and the “...
Page 21: Wireless Transmission Function Operation Guide
10. Wireless transmission function operation guide 10.1 APP Download and Installation If you want to use the Bluetooth function, you can download the free App from the Apple App Store and Google Play: --- For iPhone with iOS 10 or above system, enter the “Runcobo note” under Apple APP store, then search and install the Bluetooth APP.
Page 22 Fig. 1 Fig. 2 Reset password If you forget your password, you can reset the password by doing the following： In the login interface (Fig.1)，click “forgot password”, then it will jump to Fig. 3 interface. Enter your email address(i.e. the user account), then click the “get verification code”, the verification code will send to your email.
Page 23 Fig. 3 Fig.4 10.2 Binding of APP and you thermometer If this is your first time to use the Bluetooth APP function ,you shall binding the APP and you thermometer: Turn on your phone's Bluetooth function. Click the Bluetooth App icon on your smart phone, the APP will jump to the Fig. 1 interface, enter your account number and password, the click “login”, the APP will jump to the Fig.5 interface.
Page 24 Fig.5 Fig.6 At this time, please follow the interface prompt of Fig.6, press the “ ”button on your thermometer to start up and measure temperature until the temperature value is displayed on the thermometer, then app can successfully search your thermometer. When the app searches for your thermometer, the APP will display as Fig.7.
Page 25 mobile phones may eject different contents. Please don't care. You don't need to click. It won't affect the pairing of Bluetooth and thermometer. Fig.7 Fig.8 Fig.9 Pairing code displayed by LCD At the Fig.10 interface, fill in the six-digit pairing code shown on the thermometer's LCD. Click “OK”, the APP will jump to Fig.11 interface, the APP is binding the thermometer now.
Page 26 Fig.10 Fig. 11 26 of page...
Page 27 Fig.12 Fig.13 10.3 Measurement and data transmission Please make sure that you have logged in to your account and click the app icon to enter the Fig.13 interface. If you don't log in, please enter your account and password to login first. Click the“Ο”next to“temperature”on Fig.13, it will jump to Fig.14 interface.
Page 28 Fig.14 Fig.15 Click "Synchronize" on Fig.14 and wait for the device to connect. The connection status is as shown in Fig.15 Power on your thermometer and measure the temperature according to the Fig.15 prompts. When the temperature value is displayed on your thermometer after the measurement, the app will automatically search your thermometer, the APP will jump to Fig.16 if it successfully connect to the your thermometer(at the same time, the LCD will display the Bluetooth icon).
Page 29 Fig.16 Fig.17 After the data is successfully transmitted to the APP, the APP will display the measurement results，see Fig.17. Click the “return”on Fig.17, it will jump to Fig.18 interface. If you need to re-measure and transfer the measurement results to the APP again, you can click the "Synchronize "...
Page 30 Fig.18 Fig.19 If you need to view historical data, click "History record＞" on the Fig.18 to enter the history interface, as shown in Fig.19. 10) Click the record group you need to query in Fig.19, and the APP will display the measurement results, as shown in Fig.
Page 31 Fig.20 Fig.21 12) Select the history record that you want to delete, then click the “Delete”on Fig.21, then the selected history record will disappear from the interface. If you delete all the history record, the APP interface will shown as Fig.22. 13) Click the “＜”on upper left corner can return to the previous interface.
Page 32 Fig.22 Fig.23 10.4 FAQ helping of APP 1) How to find the FAQ on APP? Click the “mine”in Fig.13 interface,you will find the APP version as shown on Fig.23，click the common problem, you will see the FAQ as shown in Fig.24, slide down the smartphone and you will see the content of Fig.25 32 of page...
Page 33 Fig.24 Fig.25 2) How to unbind the thermometer from the APP? Click ” ” in the upper right corner of Fig.20, then it will jump to Fig.26, click the “delete device”, it will jump to Fig.27, click the “confirm” to unbind the thermometer, the APP will automatically jump to Fig.5, unbind successfully.
Page 34: Cleaning/Disinfection And Care
Fig.26 Fig.27 10.5 App updates If there is any update to the APP, we will send you an update notice via email. When you receive the update notice of APP, please follow the steps in Section 10.1 to download and install the APP again.
Page 35 11.1.1 Before performing this cleaning procedure, wash your hands with hand sanitizer first. 11.1.2 Remove all residual foreign matters from the transducer using clean soft cloth immediately after use. 11.1.3 Take a piece of clean soft cloth soaked with 70% isopropyl alcohol to swab on the surface of the device until no visible contaminants remain.
Page 36: Calibration
From the date of purchase, the product will enjoy a one-year free warranty with the purchase invoice. If the circuit diagram, components, necessary materials and electrical circuit maintenance are required during warranty service, please contact the manufacturer. Free warranty service will not be provided for failures caused by the following users' personal reasons: A.
Page 37: Maintenance
Cleaning/disinfection and Care : No modification of this equipment is allowed! WARNING 14.Packing list Quantity Parts Part No. Infrared Thermometer(main unit) TH10A 2PCS 2 AAA batteries Forehead cap(Installed on main unit) TH10ASMGW Battery cover(Installed on main unit) TH10AASDCW User Manual Certificate of qualification 15.Trouble-shooting...
Page 38 The LCD is blank No batteries installed Install the batteries Batteries used up? Replace new batteries Batteries in wrong polarity? Take out battery, adjust batteries to proper polarity The thermometer power off Power on the device again automatically LCD shows Lo or Hi Exceed measurement 1 Make sure the probe tip and the range...
Page 39: Standard List
Remark: If the above methods still do not solve the problem, please contact the manufacturer, contact information see the last page. 16. Standard List Shenzhen Yolanda Technology Co., Ltd. declares that the TH10A complies with following applicable standards: IEC 60601-1, IEC 60601-1-2, IEC 60601-1-11, ASTM E 1965-98, ISO 10993-1, ISO 10993- 5, ISO 10993-10 and IEC 62304, ISO 1497, ISO 80601-2-56, EN 1401, ISO 15223-1.
Page 40: Rf Statement/ Fcc Statement
Dispose of at public collection point in the EU countries – 2002/96/EC WEEE Directive. If you have any queries, please refer to the local authorities responsible for waste disposal. NOTES: ● Handing of battery and wastes method, please act according to the native law to proceed to handle.
Page 41: Emc Declation
FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 42 If Essential Performance is lost or degraded due to electromagnetic disturbances, this may result in inaccurate measurement and lead to mislead patients , please read below important information before to avoid possible electromagnetic disturbances. Warning：  Using cell phone or microwave oven, HF surgical equipment, magnetic resonance imaging or other radio radiant equipment near this product may cause malfunction or lead to loss of essential performance, which means that the measurement accuracy will be affected.
Page 43 Basic EMC standard Professional healthcare Home healthcare Phenomenon or test method facility environment facility environment Electrostatic +/- 8 kV contact IEC 61000-4-2 discharge +/- 2 kV, +/- 4 kV, +/- 8 kV, +/- 15 kV air 10V/m 3V/m Radiated RF EM 80MHz-2.7GHz IEC 61000-4-3 80MHz-2.7GHz...
Page 44 1845 1990 CDMA modulation 1900; GSM 217Hz 1900; 1970 DECT; LTE Band 1,3, 4,25; UMTS Bluetooth, WLAN, Pulse 2400- 802.11 2450 modulation 2570 b/g/n, RFID 217Hz 2450, LTE Band 7 5240 Pulse 5100- WLAN 5500 modulation 5800 802.11 a/n 5785 217Hz NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m.
Page 45: Reporting Adverse Events
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts(W) according to the transmitter manufacturer.
Page 46: Manufacturer And European Authorized Representative Information
Manufacturer and European Authorized Representative Information Shenzhen Yolanda Technology Co., Ltd. Address: Room 201,Jinfulai Building, No.49-1, Dabao,Road,Dalang Area,Xinan Street,Baoan, Shenzhen,China. Tel: +86-755-21635022, +86-755-21635033 Customer service hotline :+86-400-998-2913 (service time:9:00 to 21:00 of working day) Email: service@yolanda.hk Website: www.yolanda.hk MedPath GmbH Address: Mies-van-der-Rohe-Strasse 8,80807 Munich,Germany E-mail: info@medpath.pro...
