Summary of Contents for VABSCE VB-007

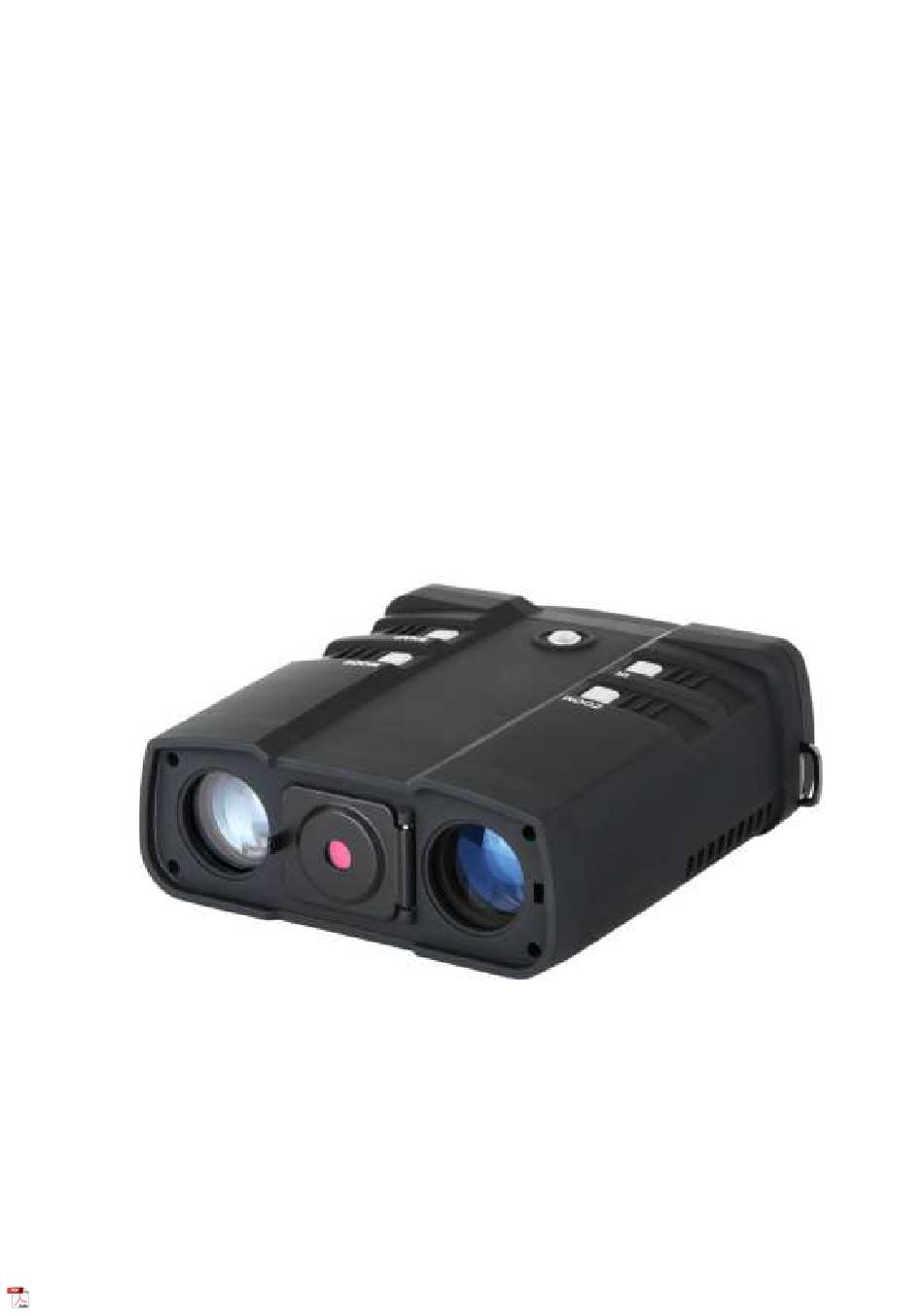

- Page 1 Night Vision Binoculars VB-007 USER MANUAL...
- Page 2 Congratulations on your purchase of this high quality night vision binoculars device. Use this device to view your surroundings in low light conditions or even in complete darkness with the built-in infrared light. You can even take pictures and video using the device which can be stored on a TF card.
- Page 3 Parts overview: 1.Ocular 9.TV out 2.Power button 10. Battery cover 3.IR button 11.Objective lens focus wheel 4.Zoom button 12.Objective lens 5.Mode button 13. Infrared filter 6.Snap button 14.IR Illuminator 7.USB port 15. Infrared zoom 8.TF card slot 16.Tripod adapter...
- Page 4 Battery Installation Open battery compartments and install the 8XAA batteries being sure to follow the polarity markings inside the battery compartment. Close the battery covers.Please pay attention to the direction of covers. Inserting / Removing the TF card Insert the TF card into the TF card port and push until it locks in place. To remove the installed TF card, please push the TF card inward to release it.
- Page 5 Taking Photo and Video Function Taking a photo: Press the [MODE] button and select the capture photo mode. The icon will appear in the top left corner of the screen. It means you enter the photo function. Press the [SNAP] button to take photos. Taking a video: Press the [MODE] button and select the video mode.
- Page 6 Play/Delete Videos Focusing the image Target the object you would like to view and turn the focusing wheel located just below the objective lens until the image on the screen is sharp and clear.The focusing wheel is No.11 in Parts overview picture.
- Page 7 Adjust infrared projection angle You can adjust infrared projection angle from 5.2°to 10.2° by No.15 in Parts overview picture. LCD Display Information. Your screen display in photo mode Icon displaying that you are in Photo Mode Brightness of IR from 1 to 5 (while plugging in USB power supply the IR brightness from 1 to 7) Remain capacity quantity Digital zoom...
- Page 8 Your screen display in video mode Icon displaying that you are in Video Mode Brightness of IR from 1 to 5(while plugging in USB power supply the IR brightness from 1 to 7) Remaining time of recording Digital zoom Battery power Backlight from 0 to 15 LCD Display Information.
- Page 9 Your screen display during menu mode Format SD Select to format the TF card Format is an operation that initializes a partition on a disk or disk. This usually causes all files in the existing disk or partition to be erased.You can choose yes or no by [ZOOM] and [IR] .Lastly press [SNAP] to...
- Page 10 You can choose off 5min.,15 min.,30 min or cancel. For turning the device off automatically. The buttons of selection and confirmation is the same as mentioned before.Then choose cancel to exit. Date ZOOM: UP IR: DOWN SNAP: OK Find Date input function by [ZOOM] and [IR]. Press [SNAP] to confirm and start to set the date .[ZOOM] means up .
- Page 11 Flicker You can choose 50Hz or 60Hz by [ZOOM] and [IR] .Lastly press [SNAP] to confirm.Then choose cancel to exit. The video output mode can be set to NTSC (North America) or PAL (Europe) TV Standard You can choose NTSC or PAL by [ZOOM] and [IR] .Lastly press [SNAP] to confirm.Then choose cancel to exit.
- Page 12 You can choose language you need by [ZOOM] and [IR] .Lastly press [SNAP] to confirm. LCD Backlight set the backlight from 0 to 15 You can choose from level 0-15 to decide screen backlight intensity.Find Backlight function and start to set the level by [ZOOM] or [IR] button .
- Page 13 Using the zoom function This device features a zoom function that can be used while taking a video or photo. Press the [ZOOM] button to toggle between 1X and 3X digital zoom. Optical magnification power :3.6X-10.8X. (The optical magnification is 3.6X) (3.6X-10.8X Zoom Magnification = Optical Magnification Digital Magnification) ×...
- Page 14 Pic. 2 Viewing videos and photos on TV Connect the AV output port of the night vision binoculars device with an A/V cable. Connect the other end of the A/V cable to the TV video input. In playback mode, press the ZOOM/IR buttons to select the file you will display on your TV. Note: When the night vision binoculars device is connected to a TV, the screen inside the device will not work.
- Page 15 Install power bank on night vision binoculars device Care and maintenance Clean the device only with a dry or slightly damp, lint-free cloth. Do not use abrasive cleaners to clean the device. This device is a high-precision optical instrument, so in order to avoid damage, please avoid the following practice: ●Use the device in ultra-high or ultra-low temperature.
-
Page 16: Operation
VB007 Specification Catalog Function Description Magnification (3.6-10.8) X31 Digital Zoom Max 3x Angle Of View 9.2° Optiacal Objective Aperture 31mm performance Exit Pupil Distance 30mm F# for Objective lens 1.3 IR ZOOM 2X 2m~ ∞ in daytime; Viewing in the darkness up to 300M (monochrome) High-sensitivity CMOS Sensor Imager Size 1/2.7''...
