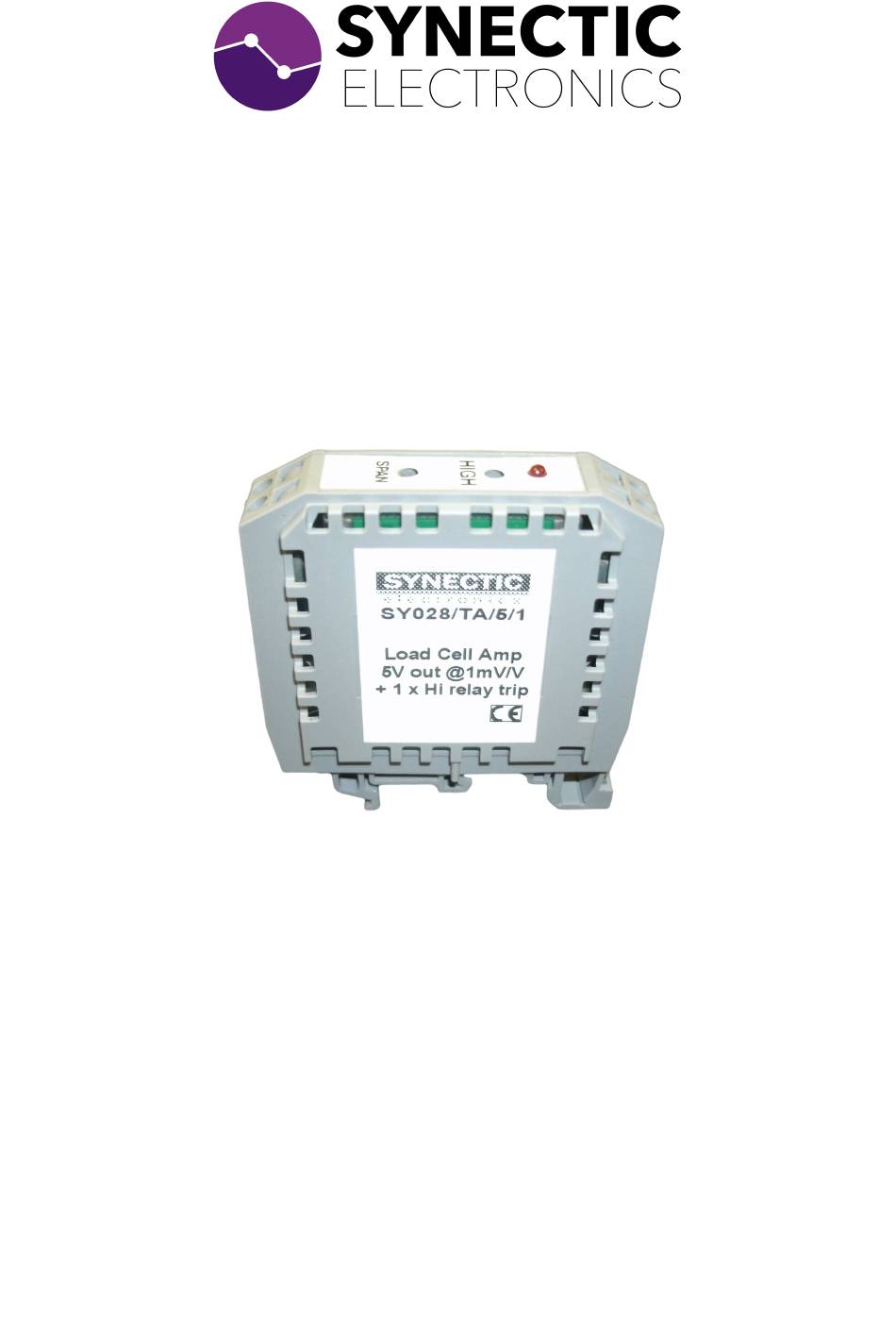

  • Page 1 SY028 Loadcell Amplifier with High Level Relay User Manual...

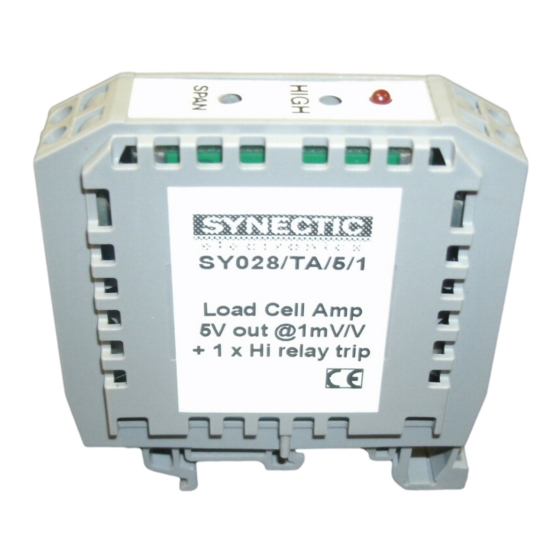

  • Page 2 Introduction The SY028 TA is a unipolar output load cell amplifier combined with a high level relay trip. It can be specified with a 0-5V or 0-10V output. An LED indicates the operation of the trip relay. Loadcell amplifier as shipped Dimensions 72.5mm x 18mm x 62mm...
  • Page 3 Connections Ex- (DC supply -) DC Supply + RLY1 (High) Relay Common Voltage out Specifications Parameter Supply voltage VDC (0-5V out) (0-10V out) bridge (load cell, pressure sensor) Input options Excitation (V) Input Sensitivity (mV/V) 0.25 Bandwidth (-3dB) 400Hz Output step response 2msec Output low voltage 0.04V...
  • Page 4 REACH (article 3) Synectic Electronics Ltd are manufacturers of electronic hardware. We are seen as a ‘down stream user’ according to REACH regulations. We are therefore are not required to register with the European Agency for chemicals ‘ECHA’.
