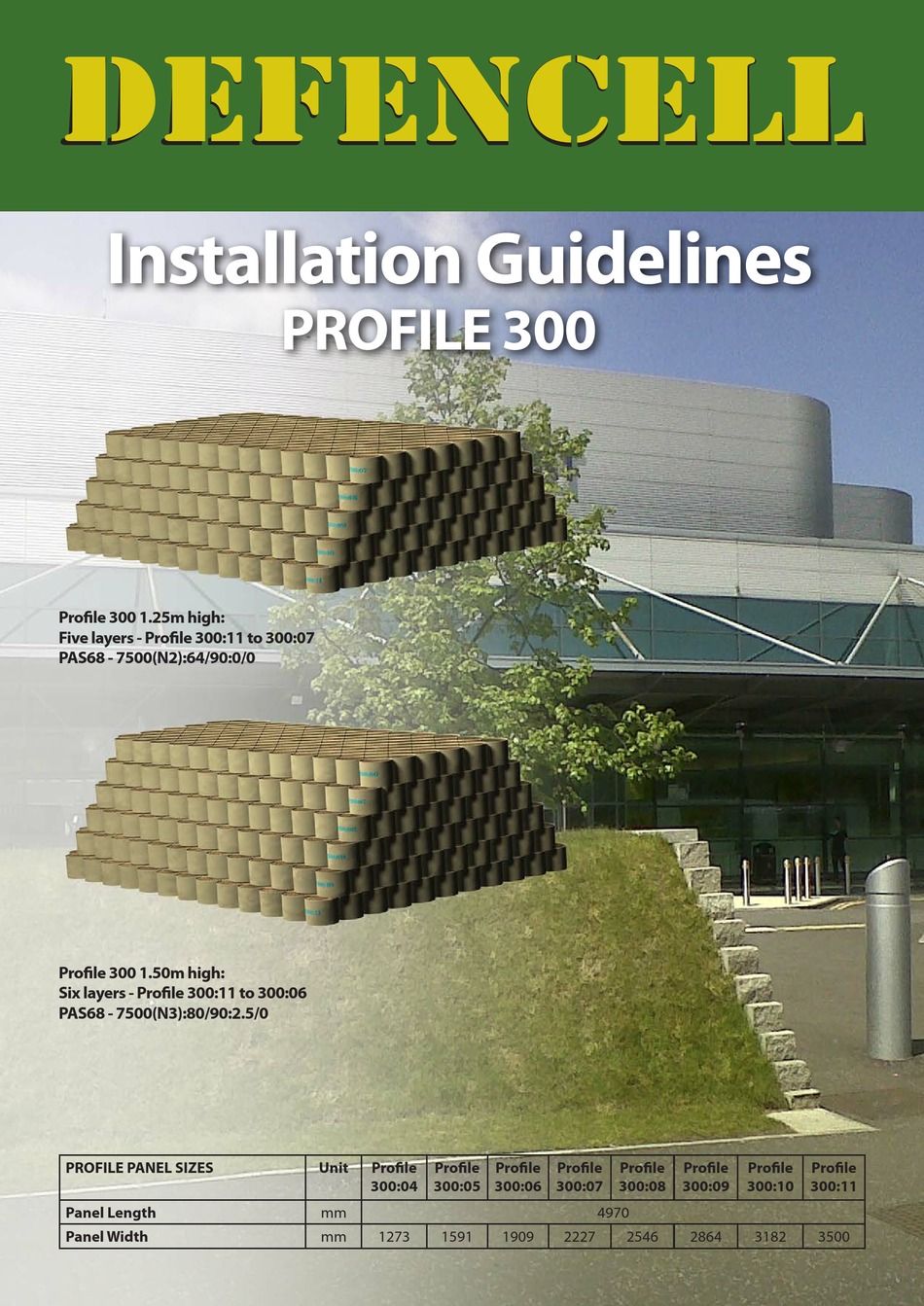

DEFENCELL

Installation Guidelines

Profile 300 1.25m high:

Five layers - Profile 300:11 to 300:07

PAS68 - 7500(N2):64/90:0/0

Profile 300 1.50M high:

Six layers - Profile 300:11 to 300:06

PAS68 - 7500(N3):80/90:2.5/0

PROFILE PANEL SIZES

Panel Length

Panel Width

PROFILE 300

Unit

Profile

300:04

300:05

1273

1591

Profile

300:06

300:07

300:08

4970

1909

2227

2546

Profile

300:09

300:10

300:11

2864

3182

3500

Table of Contents

Need help?

Do you have a question about the PROFILE 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for defencell PROFILE 300

Page 1 DEFENCELL Installation Guidelines PROFILE 300 Profile 300 1.25m high: Five layers - Profile 300:11 to 300:07 PAS68 - 7500(N2):64/90:0/0 Profile 300 1.50m high: Six layers - Profile 300:11 to 300:06 PAS68 - 7500(N3):80/90:2.5/0 PROFILE PANEL SIZES Unit Profile Profile Profile...
Page 2 HVM protection. Stage 1 - Panel Placement The base layer of any Profile 300 PAS 68 design is the Site Preparation P300:11. Identify the panel by its label which can be The ground should be level and compact to CBR value found on either end.
Page 3 Work your way across, lift the frame slightly and push the Profile 300 down under the pin and back up so the pin is located inside the cell. Move along to the next cell and repeat. Using a building line as a guide, pins can be placed into the ground along the long sides of the construction at 368mm centres and across the ends at 318mm centres.
Page 4 Using Pins The same can be achieved using pins. Once the first Profile 300 is in position, the next Profile 300 is opened out and aligned in the direction of construction, with the female end of the new Profile 300 interlocked with the male end of the first.
Page 5 Note: Care must be taken not to over compact otherwise Panel joints. Profile 300 1.25m the outer cell walls may be crushed which will affect the Stagger panel joints by using half panels at each end of overall cell/berm height.
Page 6 Each layer should Remove the frame as usual and keep the unfilled section be cut 1m shorter than the layer below to achive the of Profile 300. Use this at the end of the run to complete staggered joints. the layer.
Page 7 Engineer on site. Disclaimer The information contained in this leaflet is provided by DEFENCELL (J & S Franklin Ltd or it’s affiliates and associates) in good faith. While DEFENCELL has made reasonable efforts to ensure the accuracy, completeness...
Page 8 Assembly Guide 1. The Profile Frame consists of four corner pieces and six sets of four cross pieces. The six different cross pieces match the six different size Profile 300 panels and are colour coded. PROFILE 11 PROFILE 10 PROFILE 9...
