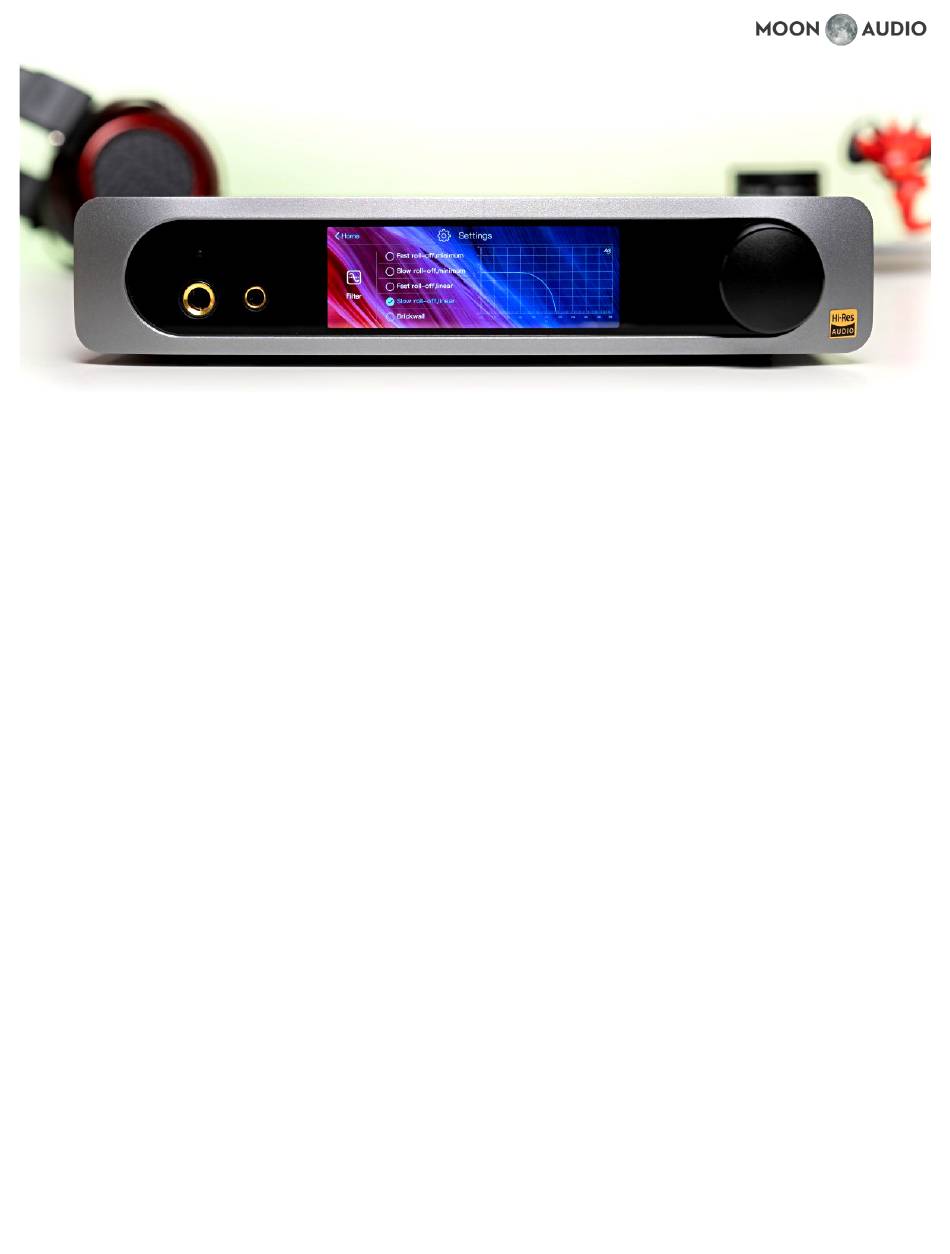

Matrix Audio Mini-i Pro 3 Manual
About the Mini-i Pro 3
Matrix Audio introduces streaming functionality into the Mini-i product line with the Mini I Pro 3. Now you can enjoy the
quality of a Matrix Audio DAC/Amp with a huge selection of music from online streaming services. As Roon Ready(TM)
device, you can connect this device directly to Roon for easy set-up. As a Streaming device you can playback bit-perfect
music streams through the Mini-i Pro 3 over a LAN and Wifi. Push music to the Mini-i Pro 3 from an iPhone, iPad, or any
MAC computer on the network using AirPlay. The Matrix Mini-i Pro 3 uses a two-color aluminum shell in silent black and
space gray with a 3.3-inch LCD screen and a brand new user interface. The Mini-i Pro 3 provides improved user experi-
ence and stunning good looks.
The Mini-i Pro 3 feature a fully balanced headphone amplifier. This allows the left and right channel signals to pass
through a nearly perfect symmetrical amplifier circuit, providing ample headphone output power with low distortion and low
noise. The output power of single-ended headphone connection is increased by 50%, and the balanced headphone output
is increased by 3 times compared to the previous generation. The addition of a 4.4mm balanced headphone jack makes it
easier to connect various popular balanced headphones.
Like the previous generation, Mini-i Pro 3 also have various digital audio input ports. They are first models with IIS LVDS
input port in entry product line. This means the Mini-i Pro 3 can get a performance improvement through an external audio
interface (such as the Matrix Audio X SPDIF 2.) The USB Type-C connector improves the connection reliability and trans-
mission efficiency of digital audio signal over the previous generations USB ports. Whether it is a digital audio signal from
a TV, set-top box, game console, HTPC, or analog audio equipment such as a vinyl turntable(you will need a seperate
phono stage), it can be connected to a digital audio system with the help of Mini-i Pro 3.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix Audio Mini-i Pro 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Moon Audio Matrix Audio Mini-i Pro 3

Summary of Contents for Moon Audio Matrix Audio Mini-i Pro 3

  • Page 1 Matrix Audio Mini-i Pro 3 Manual About the Mini-i Pro 3 Matrix Audio introduces streaming functionality into the Mini-i product line with the Mini I Pro 3. Now you can enjoy the quality of a Matrix Audio DAC/Amp with a huge selection of music from online streaming services. As Roon Ready(TM) device, you can connect this device directly to Roon for easy set-up.
  • Page 2 Features ● Two-color aluminum shell with an embedded 3.3-inch LCD screen and a brand new user interface. ● AirPlay2 Support ● Balanced headphone AMP ● MQA full decoder (available for mini-i Pro3) ● Bluetooth 5.0 support LDAC/APTX HD, ● 5GHz and 2.4GHz dual-band Wi-Fi (available for mini-i Pro3) and Ethernet ●...

  • Page 3: What's In The Box

    What’s in the Box In your package you’ll find the follow- ing contents: ● Matrix Audio Mini-i Pro3 DAC ● Documentation ● Power Cable ● Remote Setup Let’s go over one thing before we go any further! ● The Matrix Mini products have a voltage switch found on the side of the unit near the power plug.

  • Page 4: Output Options

    Output Options How will you listen to your music? For listening directly via Active Speakers or to passive speakers via an external amplifier you have a pair of pre amplified XLR and RCA ports on the back of the unit. If you change the line out mode in the settings menu, you can use this device as just a DAC by using the “Fixed”...
  • Page 5 Settings When you press “in” the knob from the main menu, it will open up the input settings menu. In this menu you select the audio source you are using. If using your network for this, you will select the “streaming” option. Press the knob again to select your audio source.

  • Page 6: Specifications

    Specifications CPU: NXP i.MX 6UL Cortex-A7 @900MHz D/A Chip: S9038Q2M USB Chip: ● PCM16-24Bit 768kHz ● MQA max 24Bit/384kHz ● DSD 11.2MHz(DoP) ● DSD 22.4MHz(Native) Clock: Crystek CCHD-950 Ultra Low Phase Noise Femtosecond Clock Volume Control Mode: Digital Volume Output Level: ●...
