Zigbee Heating Thermostat ROB_200-040-0
Important: Read All Instructions Prior to Installation

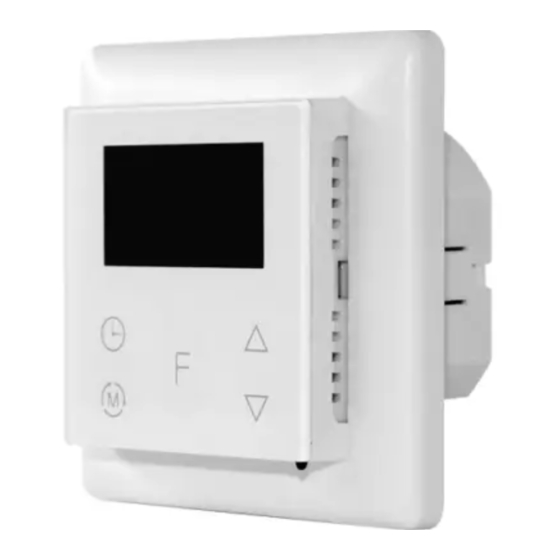

Function introduction
LED Display
TIME/SHIFT button, to set
time schedule of the
device quickly and move
the cursor
Mode button, to switch
operation modes and quit

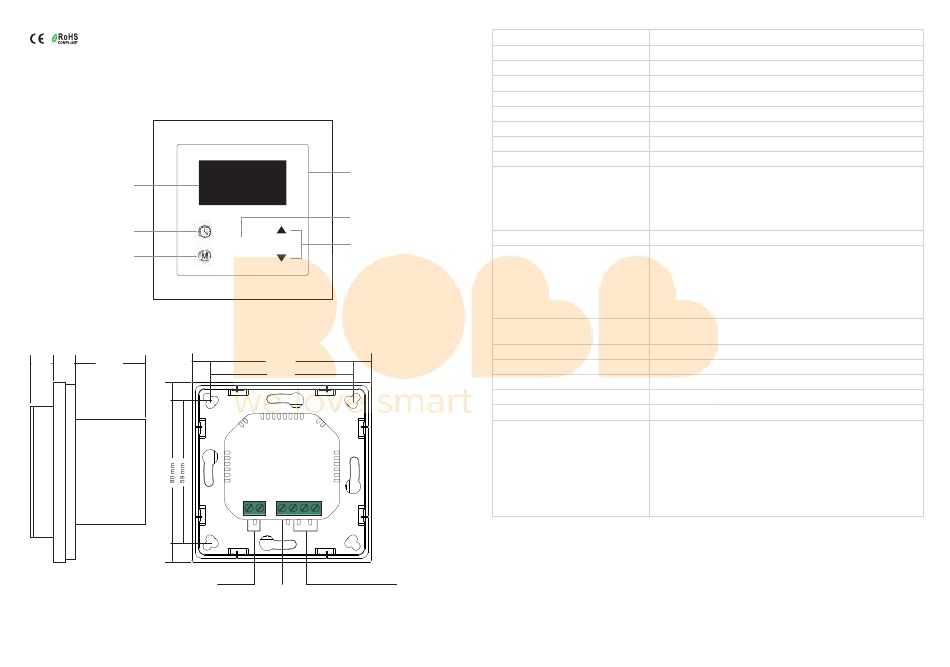

10 mm 10 mm
31 mm
Floor temp sensor
Revised 11.08.2021
Function button, to
confirm, save setting
Move up and move down
F
buttons
Front side
80 mm
59 mm
SR-ZG9092A
NTC
L
L N N
AC Power input
Output
Back side
1. Product Data
Radio Frequency
2.4GHz
Input Voltage
EU: AC200-240V, 50/60Hz
Output Voltage
EU: AC200-240V
Max Load
3680W @ 230V (resistive load)
Max Current
16A
Power Consumption
<2W
Ambient Temperature
0°C to 40°C (during operation)
Set Temperature Range
0°C to 40°C
Hysteresis
0.5°C to 2°C (default 0.5°C)
1. NTC/10K B(25/50℃)=3950 (default)
2. NTC/15K B(25/50℃)=3950
Floor sensor type
3. NTC/50K B(25/50℃)=3950
4. NTC/100K B(25/50℃)=3950
5. NTC/12K B(25/50℃)=3950
Control Mode
OFF, HEAT, ENERGY HEAT, AWAY, DRY
Control type means which temperature sensor the device refers to
when it adjust temperature.
Room sensor: adjust temperature refers to room temperature
(factory default type).
Control Type
Floor sensor: adjust temperature refers to floor temperature.
Room+Floor sensor: adjust temperature refers to both room
temperature and floor temperature.
Current ≤ 13A - 1.5mm² wire
Wiring Requirement
Current > 13A to 16A - 2.5mm² wire
IP Rating
IP21
Control Pollution Degree (Method D)
pollution degree 2
Rated Impulse Voltage (Method D)
4kV
Relative Humidity
8% to 80%
Dimensions
80x80x52mm
CE,
LVD: EN 60730-1:2016;A1, EN IEC 60730-2-9:2019;A1
EMC & RF: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019,
EN 60730-1:2016+A1:2019, EN 60730-2-
Approvals
19:2019+A1:2019+A2:2020, EN 50663:2017;ETSI EN 301 489-
1V2.2.3, ETSI EN301 489-3V2.1.1
ETSI EN300 220-1 v3.1.1., ETSI EN300 220-2 V3.2.1
RED certificate: 2014/53/EU
• The Zigbee HVAC controller is a wireless thermostat for heating system, which complies to Zigbee 3.0
wireless protocol standards. The thermostat has 4 operation modes which can be controlled manually and
locally or through remote controlled through Zigbee gateway controller.
• All setup is performed via supported IEEE 802.15.4-based control platforms and other Zigbee3.0 compatible
control systems. Appropriate gateway control software allows for adjustment of control mode, control type,
schedule etc.
• Sensors: Air temperature
• THERMOSTAT MODE: OFF, HEAT, ENERGY HEAT, AWAY, DRY
• Measurement range: –10°C to +60°C
• Accuracy: ±0.1°C
• WARNING: Electrical power must be switched off during installation
