SPACES PLACES AC1203M-F Quick Start Manual

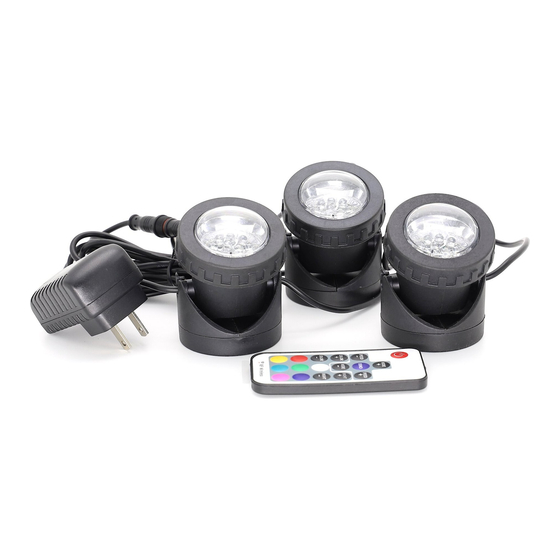

Highlight features of your water garden, fountain or landscape with this 3-piece LED submersible light set. Colorful LEDs
bring any water or outdoor feature to life. Use the programmed light effects or select from the many colors available on
the remote control.

Product Specification

Transformer: Input AC100~240V 50/60Hz 0.3A
Output: DC12V 1000mA
Lamp holder: 3PCS
LED lights: 3*12PCS (Three kinds of color)
Lamp control: RF control

Operation Instructions

1. Connect the transformer to the power supply.
Press the button<1 Turn on/Stand by>on the remote control, turn on the
2.
light.
3. Press any color button <6 Direct Color Select> on the remote control,
you can choose the color you like.
4. You also can adjust brightness, and color intensity. Please see below
BUTTON FUNCTION instructions.
5. Press <1 Turn on/Stand by> to turn off the lights.
6. The remote control has memory function. If it is properly connected
and powered on, and the light is not on, press the remote control to
turn on the light.
<Free Remote Pairing Mode>:
In some specific cases; the main unit
may need to be paired to any remote
control. Please do following steps for
free remote pairing mode:
1). Unplug the power of main unit and
plug-in after 5 seconds.
2). Press "ON/OFF" and "MODE+" key
together for 5 seconds after power on.
After this operation, the main unit will
recognize any remote controller. To
pair the main unit back to specific
remote, please repeat the "PAIRING
NEW REMOTE" operation.
Read and Follow all Safety Instructions.
Save This Manual for Future Reference.
REMOTE CONTROL LED LIGHTS
MODEL: AC1203M-F

BUTTON FUNCTION:

<1>. Turn on/Stand by: Press this key to turn on unit or switch to standby mode. At
power on, unit will automatically turn on and restore to previous status.
<2/9>. Dynamic Mode Adjust: Switch to dynamic "MODE" from static color, or switch
between dynamic "MODES".
<3/10>. Dynamic Speed Adjust: To adjust "MODE" playing speed, press "SPEED+" to
increase speed and press "SPEED-" to decrease speed. Unit will switch to dynamic
"MODE" if this key is pressed at static colors.
<4/5>. Static Color Adjust: Switch to static color mode from dynamic "MODE", or
switch between static colors.
<6>. Direct Color Select: Press a specific color. These static colors are also included
in "COLOR+" and "COLOR-" operation.
<7/8>. Brightness Adjust: Adjust static color brightness. Press "BRIGHT+" to increase
brightness, press "BRIGHT-" to decrease brightness. Unit will switch to static color
mode if this key is pressed at dynamic "MODE".
<11>. Demo Mode: At "DEMO" mode, it plays 17 dynamic modes in a loop, with each
mode repeating 3 times.
Remove this insulation sheet before use.
