Page 1: Table Of Contents
Table of contents What is OPTISHADE STYLEITALIANO ………………………………………………………………………………………… Contents of the box ……………………………………………………………………………………………………………………………………… Before starting …………………………………………………………………………………………………………………………………………………… App Download …………………………………………………………………………………………………………………………………………………… 3 Main parts of OPTISHADE STYLEITALIANO …………………………………………………………………… Assembling ……………………………………………………………………………………………………………………………………………………………… Connecting Cable …………………………………………………………………………………………………………………………………………… Device connection ………………………………………………………………………………………………………………………………………… Calibration ………………………………………………………………………………………………………………………………………………………………… Before measuring …………………………………………………………………………………………………………………………………………… During measuring …………………………………………………………………………………………………………………………………………... - Page 2 www.stomshop.pro...
-
Page 3: What Is Optishade Styleitaliano
What is OPTISHADE STYLEITALIANO OPTISHADE STYLEITALIANO is a unique and innovative dental colorimeter. It is specifically designed for measuring the color of teeth, dental restorations, restorative materials and its appearance in the mouth. The anatomical Capture Guide Cone helps to achieve a reliable positioning and avoids as much as possible light contamination in order to read with high repeatability the color of the tooth. -
Page 4: Contents Of The Box

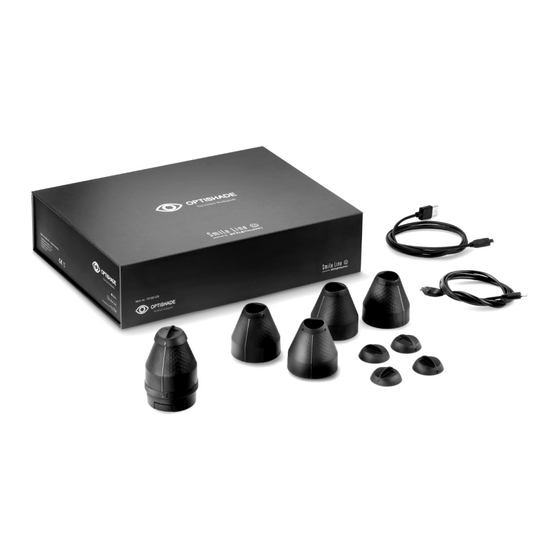

Contents • 1 OPTISHADE STYLEITALIANO unit complete with Capture Guide Cone and Calibration Cap • 1 lightning cable for connection OPTISHADE STYLEITALIANO/ iPhone-iPad • 1 USB Charging Cable • 4 Capture Guide Cones • 4 Calibration Caps • 1 Instruction for use booklet and 1 quick start guide •... -
Page 5: Before Starting
Before first use 1. Fully charge the battery of your OPTISHADE STYLEITALIANO thanks to the supplied USB cable. When battery is empty, a complete charge may take up to 5 hours. The battery of your OPTISHADE STYLEITALIANO is charged when the light at the connector turns to green. -
Page 6: Main Parts Of Optishade Styleitaliano
OPTISHADE STYLEITALIANO . For removing it from the base of the OPTISHADE STYLEITALIANO, keep the base in one hand and gently rotate the Capture Guide Cone a few degrees anti-clockwise with your other hand. Now the OPTISHADE STYLEITALIANO base separates easily. -
Page 7: Assembling
Assembling Reassemble now the Capture Guide Cone on the OPTISHADE STYLEITALIANO base. Refer to the sketch on page 5. 1° Make sure to align the polished longitudinal line of the cone on the OPTISHADE STYLEITALIANO base lock it by gently turning a few degrees clockwise. -
Page 8: Device Connection
Device connection (turning OPTISHADE STYLEITALIANO on) Open the App OPTISHADE STYLEITALIANO (the reading is always in landscape mode). A red banner appears on the top of the screen and invites you to press the main button on your OPTISHADE STYLEITALIANO for 3 seconds. - Page 9 If this occurs, it is necessary to disconnect the device and charge for few seconds. When the calibration is successful, the red banner will turn green and OPTISHADE STYLEITALIANO will appear connected and displaying the level of the battery. www.stomshop.pro...
-
Page 10: Before Measuring
Capturing a tooth color with OPTISHADE STYLEITALIANO BEFORE measuring: 1. Make sure OPTISHADE STYLEITALIANO is charged. 2. Connect and calibrate OPTISHADE STYLEITALIANO (page 6, 7 and 8). 3. Stay in the app’s home page, don’t leave the app or lock your screen. -
Page 11: During Measuring
(as the lower teeth). 3. Ask the patient to hold their breath: OPTISHADE STYLEITALIANO is susceptible to fog, even if very slight, this would ruin the measurement. If there is any suspicion of fogging, stop the measurement, blow air inside the cone and start again. -
Page 12: Sweet Spot Indicator
Sweet Spot Indicator The best area for color measurements is located in the center of the image. In this region, the colors are more stable and easier to compare. Perfect framing: Areas far from the center are less accurate and not suggested for color estimation. -
Page 13: Optimal Positioning
Optimal positioning The perfect positioning is one of the most challenging things to learn about OPTISHADE STYLEITALIANO. It is highly suggested to train in a model and in the own mouth to gain experience quickly. Correctly centered Too rotated Too rotated... -
Page 14: Correct Orientation
Correct measurement: Orientation Perfectly parallel to the axis Too far Too tilted to the front Too tilted backwards www.stomshop.pro... - Page 15 Correct measurement: Orientation Aligned to the tooth Too detached surface by leaning on the neighbors Aligned to the tooth Too near surface even with a missing tooth www.stomshop.pro...
- Page 16 www.stomshop.pro...
-
Page 17: Reading An Optishade Styleitaliano Measurement
If there is no previous or next image, the relative arrow will be colored gray. Lab @D65 sce: means the Lab coordinates generated with OPTISHADE STYLEITALIANO are aligned with a spectrophotometer inside the dental color space with a specific illuminant and the specular component excluded. - Page 18 How to add more shade guides to your OPTISHADE STYLEITALIANO SCAN ME for more color databases and updated shade guides in your APP! www.stomshop.pro...
-
Page 19: Measure Screen Functions
L* is brightness, C* is chroma and H* is hue. Database selection: dropdown menu which will list all the color databases that OPTISHADE STYLEITALIANO can compare to, as Vita Classical, Vita 3D, Chromascop, etc… Select one and OPTISHADE STYLEITALIANO will give you the closest match according to the selected database. -
Page 20: After Measuring
Optimizing OPTISHADE STYLEITALIANO color measures AFTER measuring: 1. Disconnect OPTISHADE STYLEITALIANO and place it in a safe place. 2. Remove the Capture Guide Cone and disinfect it. 3. Pass a disinfecting wipe over OPTISHADE STYLEITALIANO glass and backside *WARNING: Beware there is no moisture infiltration in your device. -
Page 21: Light Contamination
OPTISHADE STYLEITALIANO measures the color in context, which means that the tooth color is measured including the gum reflection and the nearby structures. -
Page 22: Optishade Styleitaliano Goes To Sleep
Optishad goes to sleep After following the disinfection instructions precisely: 1. Place a clean cone. Place a Calibration Cap. 3. Charge OPTISHADE STYLEITALIANO. 4. Put it in a safe place. www.stomshop.pro... -
Page 23: Cleaning And Disinfection
Beware for not risking any infiltration of liquid inside the base of your OPTISHADE STYLEITALIANO. Make sure to always use a disinfection wipe that is just humid and NOT wet/damp. VERY IMPORTANT! Any damage caused by an infiltration of liquid inside the base of your OPTISHADE STYLEITALIANO is not covered by the manufacturer’s warranty. - Page 24 www.stomshop.pro...
-
Page 25: How To Know If A Measurement Is Correct
How to know if a measurement is correct There are several indicators to know if your measure is correct Power health: battery indicator should display green, otherwise there is risk of error. Polarization: if you see reflections, make sure they don’t come from external light contamination. -
Page 26: Do's
Do’s Keep OPTISHADE STYLEITALIANO charged, do not let the battery drain. Measurements are more precise and consistent with a full battery. With a full battery, the system requests to calibrate less often. Visually analyze your calibration card, if it has debris, scratches or has been touched accidentally by external objects, replace it immediately. -
Page 27: Don't
Do not judge the accuracy of the device by measuring Shade guides. Shade-guides differ among them, those values found in the DB of OPTISHADE STYLEITALIANO are close to the official values. It is common to find differences especially in close colors such as A2, B2, A3,5, B4 belonging to various shade guides. - Page 28 www.stomshop.pro...
-
Page 29: The Compare Functions
The COMPARE functions You can access this feature from • home screen • any open image Click Load to select an image from the gallery or click anywhere in the gray square with the image icon. Once an image is open, the target square will appear in the center of the image. - Page 30 www.stomshop.pro...
-
Page 31: On Screen Controls
Compare: sends you to the compare function described in page 27. Share: opens a dialogue, with all the iOS capabilities to share one or more OPTISHADE STYLEITALIANO measures, among which, email, airdrop, messenger, WhatsApp, Telegram, iMessage and many more. Sweet spot on-off (page 11) Sweet spot intensity (page 11) www.stomshop.pro... -
Page 32: Accumulative Errors
Color measuring requires extreme precision, several factors can result in less precise measurements. OPTISHADE STYLEITALIANO intrinsic error: This device is able to get L*a*b* coordinates within the dental color space with a precision of 0,2-0,4 in the same device (intra-device). Error between different devices are of 0,3-0,5 (inter-device). -
Page 33: Calibration Card
Calibration card The Calibration Cap is the support for the calibration card. It is designed to protect the white reference from light contamination and direct touch. A simple touch with the finger, ruins the calibration card and it should be replaced. It should be mounted on the Capture Guide Cone at all times except during measuring. - Page 34 Reading color coordinates The L*a*b* color space describes numerically all colors in three dimensions. L* is for brightness and a* and b* for the color components green-red and blue-yellow, respectively. L* scale: Light vs. dark, 100 is white and 0 is black. a* scale: Red vs.
-
Page 35: Reading Color Coordinates
The L*a*b* scales rise above language barriers enabling anyone to easily communicate color independently of the device, and it provides the necessary information to calculate color differences. OPTISHADE STYLEITALIANO communicates in Lab coordinates and LCH, making the communication very intuitive and precise. L*79 a* 8... - Page 36 Database Reference Database Reference Spot (measurement area) Spot (measurement area) L*72.9 L*72.9 L*76.3 L*76.3 3,4% Whiter 3,4% Whiter a* -0.5 a* -0.5 a* 2.9 a* 2.9 More reddish More reddish b* 13.2 b* 13.2 b* 15.6 b* 15.6 Slightly yellower Slightly yellower Lab coordinate of Lab coordinate of...
-
Page 37: Color Comparison Simulation
Color comparison simulation Colored rectangles show a close color interpretation of the measurements. The first rectangle (DB) shows the closest color found on the pre-loaded (shade guide) database. The second rectangle shows the color of the actual measurement (target square). This simulation lets you understand the difference between the Reference (DB) and the target square (Spot) and have a realistic vision of how different are the two colors being... -
Page 38: Perception In The Dental Field
PERCEPTION IN THE DENTAL FIELD ΔE Identical perceived colors <0,67 Excellent match 0,67 to 1 Very good match 1 to 1,6 Good match 1,6 to 2,7 Acceptable mismatch 2,7 to 4,7 Evident mismatch >4,7 Unacceptable mismatch www.stomshop.pro... -
Page 39: Interpreting Color Difference
200. Zero difference is the exact same perceived color. Our specific tolerances are shown in page 37. When measuring, OPTISHADE STYLEITALIANO highlights the database match with different colors. Green when an excellent match is achieved, orange is a good match, and in red all the different mismatches. -
Page 40: Trouble Shooting
Calibration failed: it means that you calibrated without the Calibration Cap, or the card or the glass is dirty. You will need to disconnect and charge OPTISHADE STYLEITALIANO for a few minutes. Video will not start: OPTISHADE STYLEITALIANO may have no battery, charge the device and try again. -
Page 41: Tips
Tips You can take a picture by pressing the button on the back of OPTISHADE STYLEITALIANO or with the virtual button on the screen. Both have the same function. Use the app with sound, there are acoustic indicators while measuring. Acoustic signals tell you if the battery is draining. - Page 42 & MATISSE 30 Days Free licence Registration process Matisse Software offers a 30Day Free Trial. Go to www.matisse.ai, click on TRY 30 DAYS FREE and sign in with your email and a pass- word. During the trial period you’ll receive emails with tutorials and tips on real cases.
- Page 43 What is Matisse Matisse is a software for ceramic mixing and layering, it is embedded with comprehensive data and artificial intelligence technology to simplify the process of dental shade matching. The software Mattisse that is compatible with OPTISHADE STYLEITALIANO provides complete solutions for teeth restoration: from shade taking and shade reading to generating recipes with the most commonly used ceramic brands.
- Page 44 How to use Matisse software with OPTISHADE STYLEITALIANO 1.Send the OPTISHADE 2. Go to www.matisse.ai STYLEITALIANO image to your and click on NEW PHOTO. email by using: Select the OPTISHADE EXPORT TO MATISSE. STYLEITALIANO file. In order to receive a customized recipe, follow the steps on the right side of the software: 3.
- Page 45 Matisse is providing a dentine mix for the given area, this dentine mix is created according to the OPTISHADE STYLEITALIANO Measurement. Below is an example of the complete recipe. * Smile Line ceramic portioners are suggested to prepare the dentin recipes Proceeding with the case OPTISHADE STYLEITALIANO is used in each step to evaluate the color with the compare mode.
