Summary of Contents for POVISON 9200

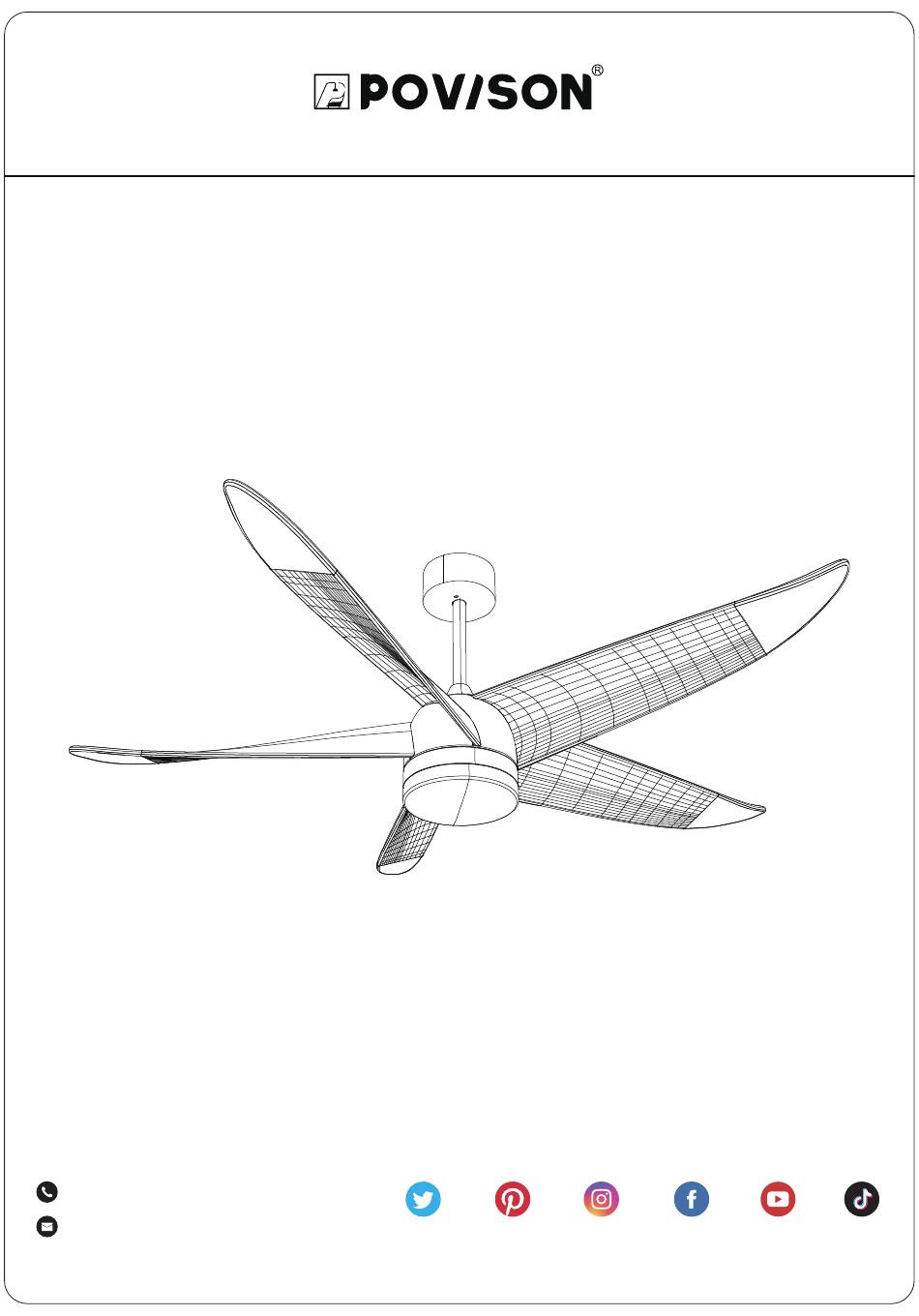

- Page 1 Simple Life , Better Home User Manual CEILING FAN MODEL NO. : 9200 +1888 666 9122 customerservice@povison.com PovisonOfficial Povison povisonofficial Povison Povison Official Povison...
-
Page 2: Packing List
9200 Packing List: Hanger bracket 5 inch downrod 10 inch downrod Canopy Decorative cover Translucent lampshade Remote controller Lighting Light hanger Light chassis Fan blade Expansion screws Balance package Blade screw... -
Page 3: Specification
9200 Specification Material Metal + ABS Color White/Black 8.1KG Weight Motor Power Number Of Blades Light Source Power Size 60*60*21.7”/60*60*26.6”in Color Temperature 3000k-4500k-6500k Luminous flux 1500lm Product Care 1. Please read the manual before installation. 2. Do not use this product in humid environment or high temperature. -
Page 4: Installation
9200 Installation Note: Before installing the ceiling fan, make sure that the power has been turned off. 1. Tools ready philips screwdriver / Blade screwdiver / Adjustable pliers or wrench Step ladder / Wire cutter / Electical tape / Lmpact drill 2. -
Page 5: Lamp Installation
9200 3. Install the blades （1） （2） Install the boom safety pin to the Install the fan blades to the motor in junction of the boom and the order and screw on the fan hanger.(Figure 1) blade screws in turn.(Figure 2) 4. - Page 6 9200 （1） （2） （3） 5. Installation of downrod,canopy and decorative cover Selection of downrod 1) To select the correct downrod,either 5 inch or 10 inch according to the ceiling height.Put the canopy and decorative cover through the downrod; 2) Remove the locking pin and the long pin. then remove the two downrod set screws;...
-
Page 7: Installation Height
9200 0.5M 6. Installation height Fan blades to the ground shall note less than 2.3 meters 7. Hanging ceiling fan 1) Place the lobes in the hanger and turn the pipe so that the groove on the lobes engages thelugs on the dome(inside the hanger) The lug grouve must engage the hanger lug. -
Page 8: Connect The Power Cord
9200 8. Connect the power cord Connect the remote control driver as shown in the picture (the driver is finally placed in the mounting bracket). Connect to 110V household wire Montor lineU red line Red line (Live wire) Black line (Neutral wire) - Page 9 9200 Instruction of the remote control Turn offallloads. Fan speed control. LIGHT ALL OFF ON/OFF LED indicator light. Turn on the light / Color Temperature Adjustment. Fan off. FAN/OFF Fan positive and negative rotation control. Fan timing control. 1H 2H 4H The remote control USES a pair of 1.5v batteries.
-
Page 10: Function Description
9200 Function Description Power Off LIGHT ALL OFF Short Press ON/OFF FAN/OFF 1H 2H 4H LIGHT ALL OFF ON/OFF Turn On(Off) Short Press FAN/OFF The Ceiling Fan 1H 2H 4H... - Page 11 9200 123456 LIGHT ALL OFF ON/OFF Adjust The 123456 FAN/OFF Short Press Wind Speed Short Press The Number To Adjust The Wind Speed 1H 2H 4H LIGHT ALL OFF ON/OFF After Selected the Wind Speed, then Press this Key, the Wind Speed can be Fast and Slow...
- Page 12 9200 LIGHT ALL OFF ON/OFF Light Power On(Off) Short Press FAN/OFF 1H 2H 4H Color Temperature Adjustment, LIGHT ALL OFF ON/OFF Cycle Switching To Change Color Temperature FAN/OFF 1H 2H 4H...
- Page 13 9200 LIGHT ALL OFF ON/OFF Forward And Backward Curved Rotation FAN/OFF 1H 2H 4H LIGHT ALL OFF ON/OFF FAN/OFF Timer Function For light and Fan, Set Timer For 1 ,2,4Hours, 1H 2H 4H Press Any Other Key can be Cancel the Timer Function...
-
Page 14: Frequently Asked Questions (Faq)
9200 Frequently asked questions (FAQ) Q: The fan/light/remote do not work? A: 1. Ensure correct installation; 2. Check if the wiring terminal is in poor contact, try to pull and plug again to ensure that the wires are con- nected properly; 3. Check the batteries of remote control; 4. Try pairing the remote controller: press the button “OFF”...
