Summary of Contents for Ainfox LS-IM004

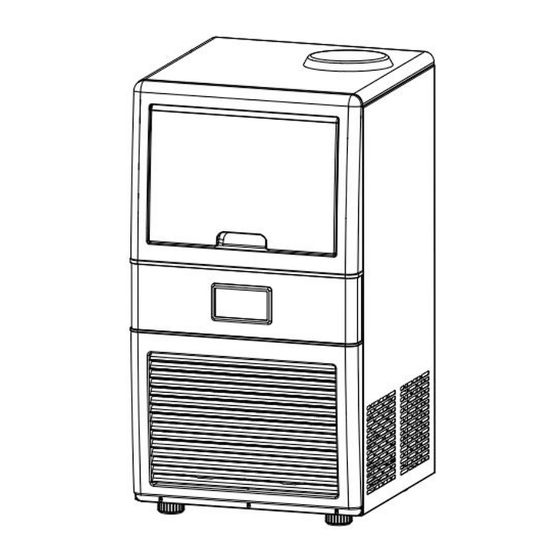

- Page 1 Commercial Ice Maker Installation and Operation manual 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。...
- Page 2 Model：LS-IM004 Thank you for purchasing our ice maker! Glad to provide you with the best quality products and complete after-sales service. To ensure your satisfactory use and proper cleaning & maintenance of this appliance, please read all following instructions carefully before operating, and keep it for future use.
- Page 3 fault detection function, which makes it more convenient to use and maintain. ·Receiving and inspection Thank you for choosing our automatic ice maker, to protect your legitimate rights, please note the following when sign for the receiving: 1. Whether the appliance outer package is in good condition;...
- Page 4 ·Warning pictograms and operating safety instructions ·Precautions for safe operation Just after receiving the appliance, allow 24 hours for the Lubricating oil of the compresser fluid to settle before starting to use, otherwise the compressor will be easily damaged. Do not use the ice maker outdoor. It may cause leakage or electric shock after the ice maker is wet by rain.
- Page 5 prone to splashing water, to avoid the damage to the insulating material, so to prevent leakage or electric shock. Do not earth the ice maker through a gas pipe, a water main, a telephone line, or a lightning rod. Do not insert metallic materials such as wires into the air vents, passage or exhaust vents of the ice maker, to avoid electric shock or personal injury due to accidental movement of active parts.
- Page 6 Keep the ice maker free of obstructions and keep the ventilation open. Do not store combustion sprays, volatile or flammable substances in the ice maker. Storage of such substances may cause an explosion or fire hazard. Do not use the ice maker when handling toxic or hazardous materials or radioactive materials, as it harm health and damage the environment.
- Page 7 Some models use flammable refrigerants and flammable foaming agents, so beware of fire (The product is marked "Warning fire"). When the appliance is abnormal, it must be repaired by professional personnel and institutions. ·Safety Precautions 1. The voltage of this appliance is: 120V~ / 60Hz. If the voltage is unstable or with large fluctuation, please install a voltage regulator.
- Page 8 WARNING: Do not operate the ice maker when there is a gas leak in its environment. Fire hazard may occur due to sparks caused by unplugging or plugging or the start-stop controlled by the temperature controller, the air source should be cut off first, and allow air to circulate. WARNING: Do not operate the ice maker when there is a gas leak in its environment.
- Page 9 ·Correct operation When using the appliance for the first time or using it continuously, please follow below rules! 1. Connect the ice maker to a 2. Connect the water inlet pipe power supply that complies of the ice maker to the drinking with the nameplate.
- Page 10 to freeze or freeze any food in the refrigerator, to keep the ice shovel clean. ·When closing the plastic door of the refrigerator, open or close it gently, and do not hit the door, and please also close the sliding door after taking the ice out. ·The ice maker should be kept away from heat sources, strictly forbidden to use it in high or low temperature environment.
- Page 11 ·Environment This unit is designed according to the following conditions: 1. Household Use 2. No more than 2000 meters above sea level 3. Temperature is not higher than 32 ℃, the maximum relative humidity is 80%, and the maximum relative temperature decreases linearly with the increase of temperature.
- Page 12 ·Installation location requestment Transporting and moving conditions: When transporting, keep the tank as upright as possible, and the inclination does not exceed 45 °maximum. Do not locate it upside down or horizontally. To operate the ice maker properly and get the best performance, please locate the ice maker as the following conditions.
- Page 13 WARNING： Make sure to use a plug with a grounding structure and ground the ice maker, to prevent electric shock in the event of a leakage. Replacing the ground terminal with a water pipe will not provide effective ground protection in many situations, because plastic pipes are often used as water pipes.
- Page 14 ·Installation & Location Base installation: 1. Locate the ice maker in a level & flat fllor. 2. Adjust the height of the feet to make the ice maker level. 3. The ice maker is not suitable for outdoor use. The normal use environment temperature is 10℃...
-
Page 15: Water Connection
refrigerators or ovens). 5.Air-cooled ice makers rely on air circulation to dissipate heat. Therefore, it need at least 15cm of space between the front, back, left, and right of your ice maker and wall, good for heat dissipation. Water Connection： 1. - Page 16 Installation The pipe connections on the unit are marked. In case of conflict, the identification on the unit shall prevail. Operation...
- Page 17 Indicator light display (5) 1. Ice full display light (red) When the ice full alarm is on, it always lights red. 2. The water shortage indicator (red) lights red when the water shortage alarm occurs. 3. After the thin ice indicator (green) is selected, the standby state flashes, and it always lights green when it is turned on.
- Page 18 Ice machine working steps 1. Ice making: Connect the water source, turn on the power, press the on / off button, the fan starts, and the ice making time is judged according to the ambient temperature. The compressor starts, the circulating water pump starts, and ice making begins.
- Page 19 full and stops temporarily, and cannot start until the water baffle is reset. 3. Forced de-icing: During the ice-making process, press and hold the on key for 3 seconds, the machine will enter the de-icing procedure in advance, and after the de-icing will continue the next round of ice making.
- Page 20 Fault self-diagnosis 1. The pump-can directly observe whether there is water flowing down from the ice tray. If not, the pump may malfunction. 2. Refrigeration-After the ice making operation lasts for 10 minutes, the water in the sink will become significantly colder.
-
Page 21: Troubleshooting
Troubleshooting Problem Possible cause Solution Bad socket contact Change socket Ice maker The refrigerator is full of ice Remove the ice cubes and does not cubes start it manually start Adjust the flap to enable free The flap is not reset reset Water source is not turned Recheck water resource... - Page 22 Check the water inlet valve or Sink overflow mechanical float Improper adjustment of ice Reset ice thickness thickness transpare Install filter and replace filter Water quality is bad ncy of the element ice cube Ice maker water tank or the Clean the ice maker and is not very ice tray is very dirty...
- Page 23 temperature and high humidity environment ·Maintenance Please follow this manual to maintain the ice maker, in order to improve its reliability and service life. And while maintaining hygiene, avoid the increasement of energy consumption coefficient for the ice production. 1. Always clean the surroundings of the appliance to keep it clean.
- Page 24 the ice tray directly, to prevent the circuit parts from being immersed. 5. Maintenance of condenser for air-cooled ice maker: Clean the air-cooled condenser every three months. Use a soft brush or a vacuum cleaner with a brush to scrub the condenser fins up and down in the direction of the fins to avoid damaging the fins and affecting the cooling performance.
- Page 25 Machine consumables are not Check the water source, please covered by the warranty turn off the water resource before unplugging the water inlet port of the ice maker, to prevent Please use genuine consumables, high-pressure water jets. such as filters, filter elements, ice shovels, water pipes, etc.
- Page 26 3. Check the model and number of the ice maker. The model nameplate is on the back of the unit. ·Technical parameters Model LS-IM004 Grade of protection against electric shock Ⅰ Ice Tray Rated voltage/frequency...
