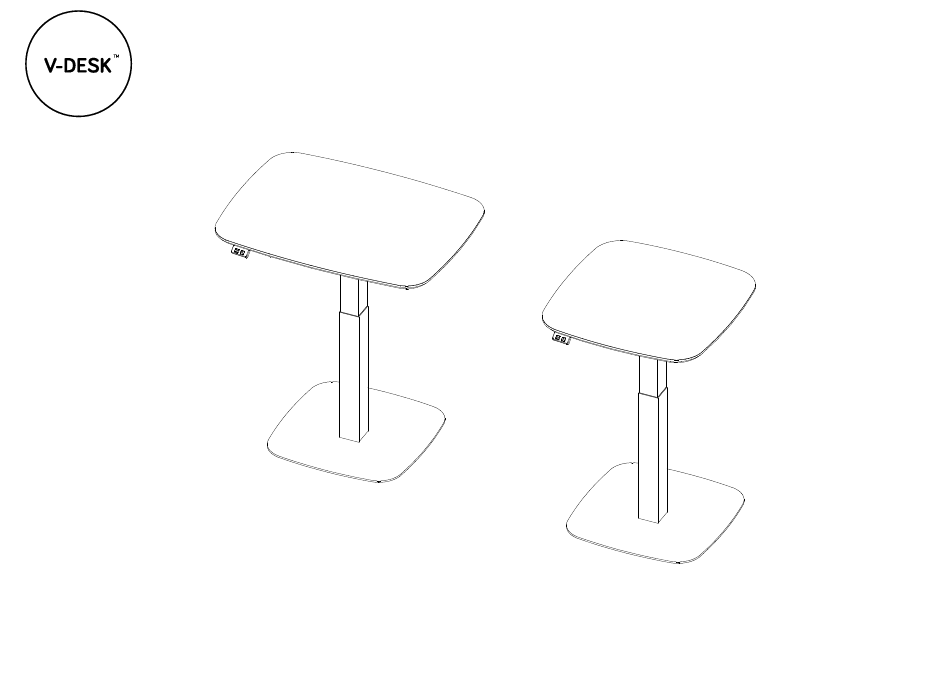

- Page 1 ASSEMBLY INSTRUCTIONS V-DESK POP 600 & 800...
- Page 2 WHAT’S IN THE BOX? FIXINGS AND TOOLS INCLUDED 4.2 x 13mm M6 HEX 15mm SCREW M6 HEX 20mm SCREW CABLE TIE ALLEN KEY PHILLIPS SCREWDRIVER WAFER HEAD SCREW BASE COMPONENTS INCLUDED IN BOX FOOT UP/DOWN HAND SWITCH CABLE PEG CONTROL BOX LIFTING COLUMN CABLE COVER PANELS SUPPORTING BEAM...
-
Page 3: Components Overview
COMPONENTS OVERVIEW FOOT LIFTING COLUMN SUPPORTING BEAM CABLE HOOK CONTROL BOX CABLE COVER PANELS UP/DOWN HAND SWITCH... - Page 4 LOCATING SUPPORT FRAME SUPPORTING BEAM • PLACE TOP FACE DOWN ON SOFT SURFACE PLYWOOD DESKTOP • PLACE SUPPORTING BEAM IN POSITION (FACE DOWN) HOLE HOLE HOLE...
- Page 5 • PLACE LIFTING COLUMN IN POSITION FIT THE LIFTING COLUMN • USE 4 x ‘D’ TYPE HEX screws (15mm) 15mm SCREWS X 4...
- Page 6 CABLE TIE THREADING IN CABLES LOOP AND CABLE TIE AT THIS POINT • THREAD THE CABLES THROUGH THE CHANNELS CONTROL BOX • LOOP AND CABLE TIE ANY EXCESS CABLE TIP: LEAVE THE SUPPORT FRAME LOOSE SO THAT THE CABLES CAN BE WIRED UNDER POWER BOX UP / DOWN CONTROLLER...
- Page 7 WAFER HEAD SCREW x 8 FIT CABLE PLATES • SCREW COVER PLATES INTO POSITION • USE 8 x ‘C’ TYPE SCREWS...
- Page 8 WAFER HEAD SCREW x 2 FITTING CONTROL BOX • SCREW CONTROL BOX INTO POSITION...
- Page 9 15mm SCREWS X 2 FITTING CABLE HOOK • SCREW IN CABLE HOOK (REAR MOST HOLES • USE 2 x ‘D’ TYPE HEX screws (15mm)
- Page 10 20 mm SCREWS X 4 FITTING THE BASE PLATE TIP: THE FOOT PLATE IS VERY HEAVY. 2 PERSONS NEEDED FOR THIS PROCESS. TIP: USE THE ALLEN KEY TO HELP LOCATE THE HOLES ON THE FOOT AND COLUMN • SCREW BASE PLATE ONTO LIFTING COLUMN •...
- Page 11 FLIP THE TABLE TO UPRIGHT POSITION TIP:THE DESK IS FAIRLY HEAVY SO TWO PEOPLE REQUIRED FOR THIS PROCESS...
-
Page 12: Connecting The Power
CONNECTING THE POWER • PLUG IN THE POWER CABLE TO THE BLACK CONTROL BOX • FEED THE CABLE GUIDE THROUGH THE CABLE HOOK TO 240V MAINS CONTROL BOX POWER BOX UP / DOWN CONTROLLER... - Page 13 ACTIVATING THE TABLE TURN ON THE POWER AND PRESS THE UP DOWN BUTTONS TO ACTIVATE DESK TIP: HOLD THE UP or DOWN BUTTON FOR A FEW SECONDS TO ACTIVATE...
-
Page 14: Troubleshooting
TROUBLESHOOTING COMMON FAULT TREATMENT The following tips will help you detect and eliminated the common faults and errors. Please contact us if the error you have met isn’t covered by the following. Please don’t try to break open any of the black boxes or leg mechanism as they can only be repaired by professionals. If the fault is not easily amended, we will happily supply replacement product. - Page 15 GENERAL INFO 1. Power supply 100v - 240v 50-60Hz 2. Service Environment 0-40 degrees celsius. 3. Unplug the power before cleaning. Avoid getting water into the internal parts. 4. The electric box contains electronic components, metals. plastics, wires etc. so dispose of it in accordance with each country’s environmental legislation, not the general household waste.
- Page 16 THE SEPARATE INSTRUCTIONS FOR THIS WILL BE PACKAGED WITH THE KIT OF PARTS OE ELECTRICAL PACK LIGHT BAR PACK SHELF PACK ANY ISSUES OR QUESTIONS REGARDING THIS PRODUCT - EMAIL hello@v-desk.co THE V-DESK RANGE IS DESIGNED AND ASSEMBLED IN THE UK BY X-PLY LTD. UNITS 18-19 OAKLANDS BUSINESS PARK, FERNDALE, CF43 4UG.
