Summary of Contents for MEDICHOICE 3MW1-030004

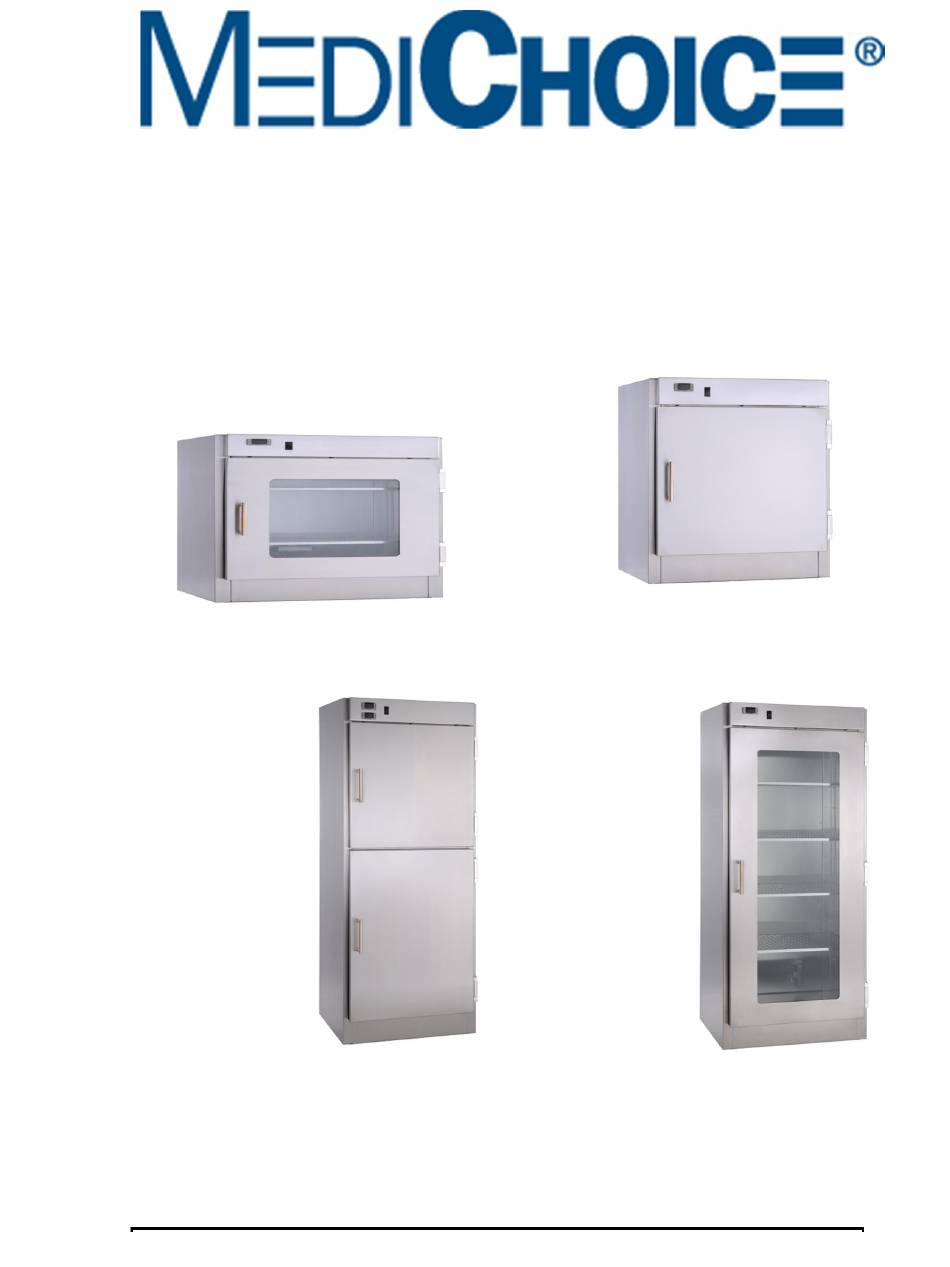

- Page 1 Blanket Warmer Operating Manual Distributed by Owens & Minor, Mechanicsville, VA 23116 For Blanket Warmer Service call 800-860-4716...
-
Page 2: Table Of Contents
Blanket Warmer Operating Manual GENERAL SPECIFICATIONS................. 2 Single Door Full Size Blanket Warming Cabinets ..........3 Double Door Full Size Blanket Warming Cabinets ..........4 Half Size Blanket Warming Cabinets ..............5 Counter Top Blanket Warming Cabinets.............. 6 GENERAL INFORMATION ..................7 Start Up Instructions .................... -
Page 3: General Specifications
Blanket Warmer Operating Manual General Specifications The Blanket Warming Cabinet s interior is constructed utilizing type 300 stainless steel. The exterior is constructed of all welded and formed 18 gauge magnetic type stainless steel except for the back and bottom sections. These are manufactured of industrial grade galvanized steel. -
Page 4: Single Door Full Size Blanket Warming Cabinets
Blanket Warmer Operating Manual Single Door Blanket Warming Cabinets Full Size 72 Tall v Type 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options: single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid fiberglass. -
Page 5: Double Door Full Size Blanket Warming Cabinets
Blanket Warmer Operating Manual Double Door Blanket Warming Cabinets Full Size 72 Tall v Type 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options: single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid fiberglass. -
Page 6: Half Size Blanket Warming Cabinets
Blanket Warmer Operating Manual Half Size /Under Counter Blanket Warming Cabinets 36 Tall v Type 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options: single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid fiberglass. -
Page 7: Counter Top Blanket Warming Cabinets
Blanket Warmer Operating Manual Counter Top Blanket Warming Cabinets 24 Tall v Type 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options: single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid fiberglass. -
Page 8: General Information
Blanket Warmer Operating Manual GENERAL INFORMATION Safety Precautions · See Installation & Operating Instructions for XR01CX, General Warnings · Check that the supply voltage is correct before connecting the instrument v Full Size, Single Door: 120 V, 50/60 Cycle, single phase, 3 Wire, 7.3 Amps v Full Size, Double Door: 120 V, 50/60 Cycle, single phase, 3 Wire, 7.5 Amps v Half Size: 120 V, 50/60 Cycle, single phase, 3 Wire, 5.0 Amps v Counter Top: 120 V, 50/60 Cycle, single phase, 3 Wire, 2.9 Amps... -
Page 9: Start Up Instructions
Blanket Warmer Operating Manual START UP INSTRUCTIONS When you first receive your blanket warmer, plug it in and allow a minimum of 1 hour to heat. ° You will know it has reached the pre-set temperature of 130 F when LED goes off. -
Page 10: Display Instructions
Blanket Warmer Operating Manual FRONT PANEL COMMANDS HOW TO SEE THE SET POINT TEMPERATURE 1. Push and immediately release the SET key. The set point will be shown. 2. The set point temperature displays for 5 seconds or push the SET to return to the normal display. -
Page 11: Technical Data On Digital Controller
Blanket Warmer Operating Manual DIGITAL CONTROLLER TECHNICAL DATA Housing: Self-extinguishing ABS Case: Frontal 32 x 74 mm, depth 50 mm Mounting; Panel mounting in a 71 x 29 mm panel cut-out Protection: IP20, Frontal Protection: IP65 </= 2.5 mm wiring Connections: Screw terminal block Power Supply:... -
Page 12: Alarm Settings
Blanket Warmer Operating Manual DIGITAL CONTROLLER ALARM SIGNALLING Message Cause Outputs Room Probe Failure Cy Unit ON time with faulty probe (0+99 min) time during which the unit is active in case of faulty thermostat probe. With Cy=0 unit is always OFF. Cn Unit OFF time with faulty probe (0+99 min) time during which the unit is OFF in case of faulty thermostat probe. -
Page 13: Maintenance
Blanket Warmer Operating Manual MAINTENANCE Maintaining Air Flow As you should inspect your clothes drier at home for lint build up it is our recommendation that the rear air channels of a blanket warmer be inspected every six months to maintain proper air flow, lower the costs of energy, increase fan life and maintain a fireproof environment. -
Page 14: Cuverro Anti-Microbial Handles
Blanket Warmer Operating Manual CuVerro Anti-microbial Copper Handles CuVerro Anti-microbial Cooper is laboratory tested, EPA registered and proven effective in clinical trials at killing the pathogens responsible for spreading healthcare associated infections (HAI). The CuVerro anti-microbial copper surface continuously kills bacteria left behind by dirty hands, killing more than 99.9% of bacteria within 2 hours. -
Page 15: Temperature Recommendations
Blanket Warmer Operating Manual ECRI and AORN Temperature Recommendations There are no national standards for blanket and fluid warming cabinet temperature settings. However, in 2006 the ECRI Institute issued a warning that fluid and blanket warmers should be limited to a temperature no higher than 43° C (110° F) to decrease the risk of thermal injuries to patients. -
Page 16: Blanket Recommendations
Blanket Warmer Operating Manual Blanket Recommendations Many hospitals and surgery centers have been switching to low cost ether blankets made outside the USA. We Do Not Recommend Woven Ether Blankets 1. These low-cost ether blankets are constructed of poorly processed materials that are not tightly woven. -
Page 17: Parts List
Blanket Warmer Operating Manual PARTS LIST FOR BLANKET WARMERS Technical Service Call 800-860-4716 PART # DESCRIPTION 3MW1-030004 STAINLESS STEEL WARMING CABINET SHELF CLIP 3MW1-030491 DIGITAL LED CONTROLLER PROGRAMMER (GRAY) (CUSTOM XR01CX CONTROLLER) 3MW1-060008 CORD, FAN 60" AXIAL 3MW1-060188 FAN, 115V (4.5 ), HITEMP... -
Page 18: Limited Warranty
Blanket Warmer Operating Manual LIMITED WARRANTY The Manufacturer warrants to the original purchaser its new Blanket Warmer (except for components not warranted under Exclusions ) to be free from defects in material and workmanship for a period of 5 years under normal use and service. The Manufacturer s obligation under this warranty is limited to the repair or replacement, at the Manufacturer s option, of the parts or the product defects of which are reported to the Manufacturer within the applicable warranty period and which, upon examination by the Manufacturer prove to be defective.
