Healthy wave Multi-Wave PEMF Mat Controller Operating Instructions

•
•
•
•
•
Sleep Cycle Button (Quarter Moon Symbol) -
•
Press to activate infrared sleep mode cycle. The Infrared Heating will be turned ON; Temperature set
point will be 86°F (30°C), Heating ON time set to 12 hours.
(Optional) Change default temperature display from degrees Fahrenheit to Celsius - Press and hold Heat Mode
button for 5 seconds until you hear a beep
•
Photon Button - Press to turn the photon lights ON or OFF.
turned ON and automatically turn OFF after 1 hour. Indicator
•
"STANDARD CYCLE" PEMF ON/OFF Button - (Standard time ON [10/15/20minute selectable] plus
100 min OFF cycle) Turns the "Standard" PEMF cycle ON or OFF. [Do not press this when using any of the
F1 to F12 preprogrammed PEMF buttons.]
•
When controller is first powered ON the default settings (as shown on screen) will be 20 minute ON
cycle, "Sine" Wave Type, 7.83 Hz, M (Medium) pulse duration, 50% Intensity.
•
This standard PEMF cycle will automatically operate for 20 [or 10/15] minutes ON time and 100
minutes OFF time. This will repeat for up to 12 hours if controller buttons are not touched after this.
After 12 hours the controller will automatically turn OFF
•
During the PEMF 20 minute ON time the screen indicates "Pulse". During the 100 minute OFF time
the screen indicates "Sleep"
•
To stop the standard PEMF cycle at any time press the PEMF ON/OFF button
•
PEMF Mode Button - To make changes to "Standard" PEMF cycle.
•
Press once to make changes to PEMF ON time, "MIN/HR" will flash on the screen. Use UP/DOWN
△▽
"P" buttons to increase or decrease the desired timer set point. (10, 15 or 20 minutes)
•
Press PEMF Mode Button again, "Wave Type will flash. Use UP/DOWN
crease or decrease the desired wave type (sine or square wave)
•
Press PEMF Mode Button again, "Frequency" will flash. Use UP/DOWN
crease or decrease the desired frequency (1 to 30 pulses per second [Hz]).
For more information see WWW.HEALTHYWAVEMAT.COM

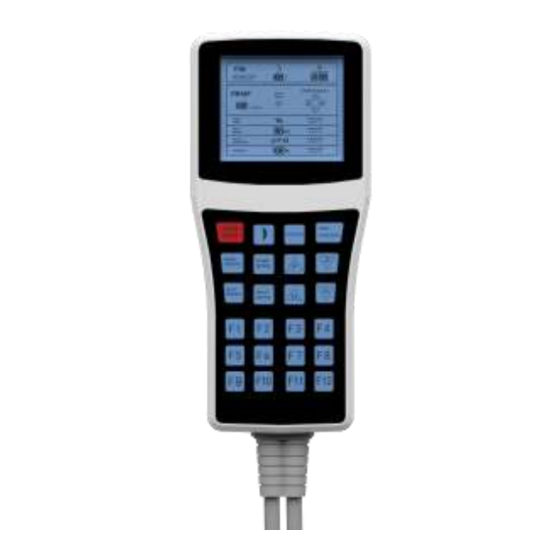

MULTI-WAVE PEMF MAT CONTROLLER
OPERATING INSTRUCTIONS:
Always plug this controller into a 120Volt surge protected power bar with a power
ON/OFF switch. When the controller is not is use, turn the power bar switch OFF.
The controller is for standard 120Volt operation. (220Volt available for orders and
will be shown on the controller label.)
Red Power Button - Power ON/OFF to activate controller
Heat ON/OFF Button - Turns Infrared Heat ON or OFF. Indicator
screen confirms Infrared Heating is ON.
Indicator on screen "Hours ON" shows how much time is left for Infrared Heating.
After this time the Infrared Heating will turn OFF automatically. Plus "Actual Tem-
perature" of the mat is shown on the screen.
Heat Mode Button - To change "Setpoint Temperature" and "Hours ON"
•
Press Heat Mode Button once to set Temperature. Set point temperature on
screen will flash. Use UP/DOWN
the desired temperature set point.
•
Press Heat Mode Button again to set Timer for Infrared Heating. On Time
indicator on screen will flash. Use UP/DOWN
crease or decrease the desired timer set point. (1 to 12 hours available)
•
Press Heat Mode Button again to save both settings. Both these new setting
will appear on the screen.
△▽
"H" buttons to increase or decrease
Red Lights will stay ON for 1 hour when
on screen confirms lights are activated.
1
on the
△▽
"H" buttons to in-
△▽
"P" buttons to in-
△▽
"P" buttons to in-
