OmniMed Economy Assembly Instructions

Assembly Instructions
for Economy & Beamatic™ Screens
1) Remove All Parts From Carton.
2) Unfold Hinged Top and Bottom Screen Sections.
3) Place Hinged Top Section onto the Bottom Section with the hinges of both section facing the same direction.
4) Unfold Vinyl/Cloth Panels, then Insert a Screen Panel Rod Through the Pocket at the Top and Bottom
of Each Panel. Gather the Panels so that Both Ends of the Rod are Exposed. (Figure 2)
5) With the Vinyl/Cloth Panels Assembled, Insert a Screen Panel Rod in the Holes Provided Near
the Top of the Screen Frame. (Figure 3)
6) Pulling the Panel Taut, Insert the Bottom Rod into the Holes Provided Near the Bottom of the Screen Frame.
7) Repeat Steps Five and Six for Each Screen Section.
Your Screen is Now Ready for Use.

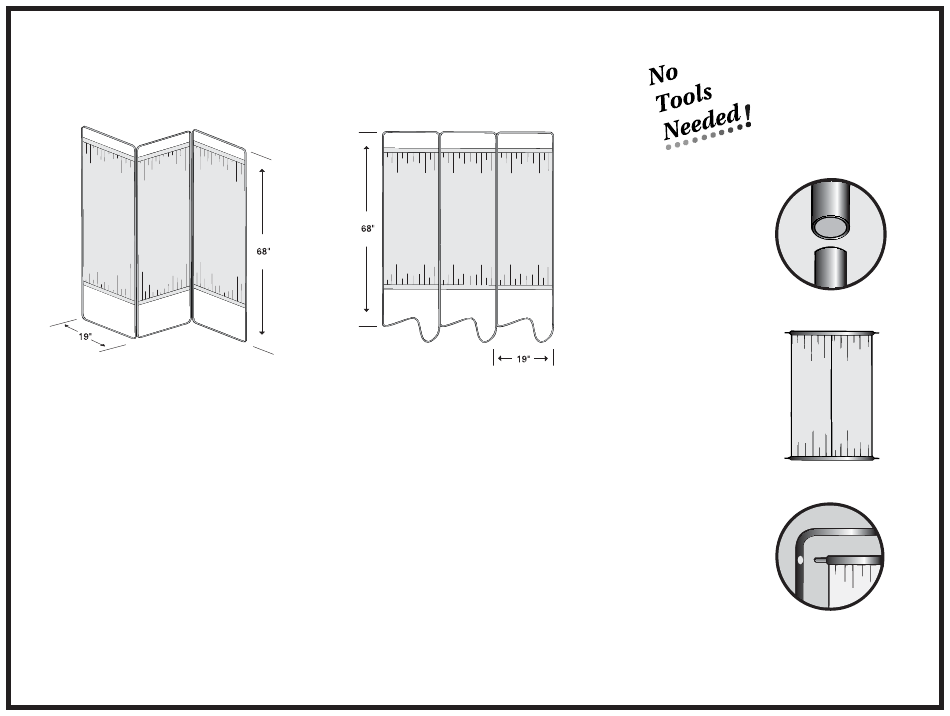

Top
Bottom
Figure 1
Figure 2
Figure 3
