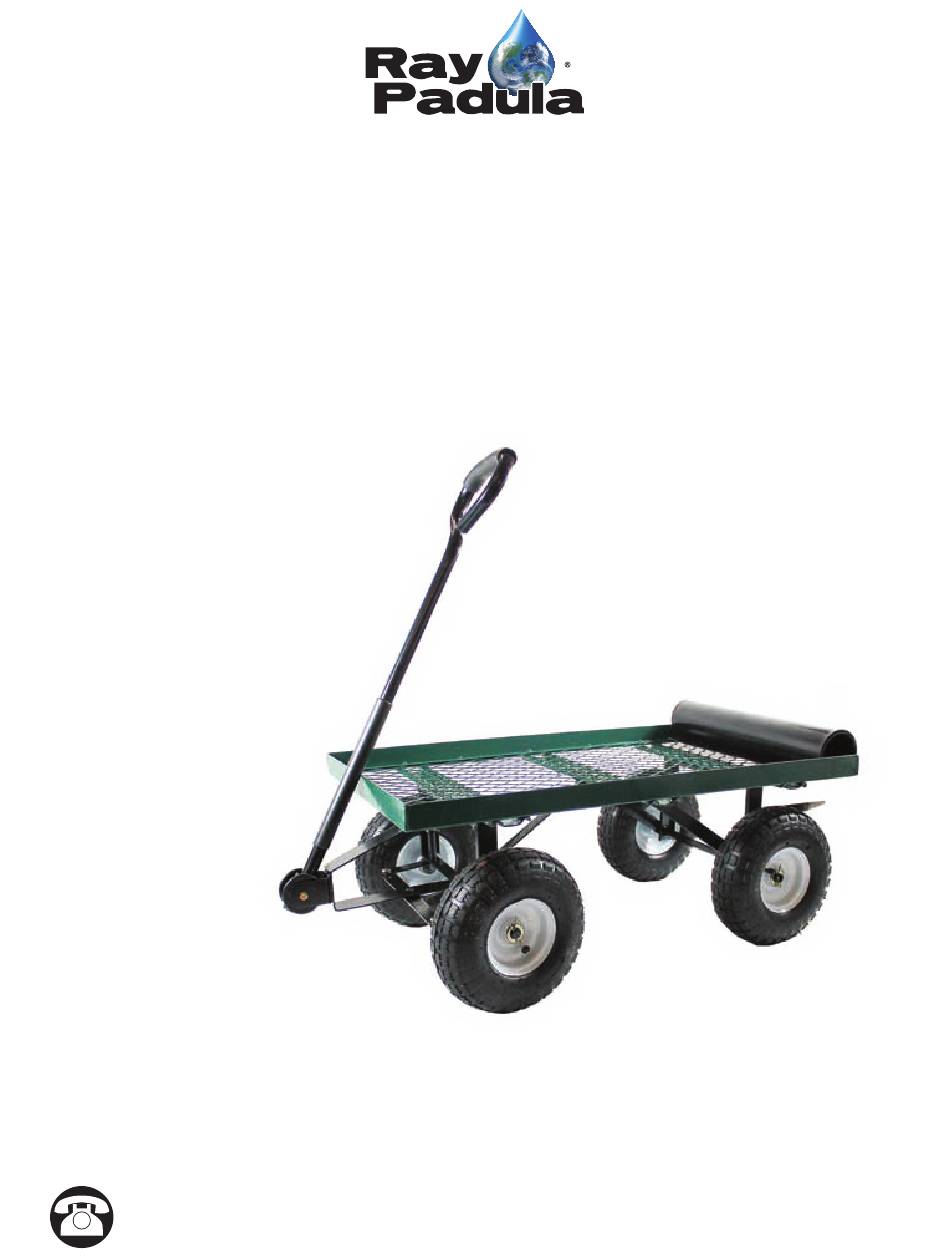

Metal Utility
Garden Cart
with Removable Rubber Mat
English
Owner's
Manual
• Important Safety Information
• Assembly Instructions
• Parts and Hardware Identification
Model: RP-GEMC
CAUTION: Read, understand, and follow ALL instructions and notices in
this booklet before using this product.
Questions? Comments? Missing parts? Do not return to store.
Give us a call 1-866-446-2063, or email support@raypadula.com
BLACK TYPEFACE CMYK DROPLET VERTICAL CUTOUT
RP-GEMC
Advertisement
Table of Contents
Summary of Contents for Ray Padula RP-GEMC
- Page 1 Manual • Important Safety Information • Assembly Instructions • Parts and Hardware Identification Model: RP-GEMC CAUTION: Read, understand, and follow ALL instructions and notices in this booklet before using this product. Questions? Comments? Missing parts? Do not return to store.
-
Page 2: Table Of Contents
User Manual Garden Utility Cart Safety information and Warnings ......................3 Preparation ............................3 Tools Needed ............................3 Care and Maintenance ........................... 3 Package Contents ........................... 4 Hardware Contents ..........................5 Assembly Instructions ......................... 6-9 Assembly Diagram ..........................10... -
Page 3: Safety Information And Warnings
Safety Info Garden Utility Cart SAFETY INFORMATION and WARNINGS Please read, understand and follow ALL instructions and warnings in this user manual before using this product. • Do NOT tow this cart on steep hills. • This cart is NOT to be used for highway use. •... -
Page 4: Package Contents
Package Contents Garden Utility Cart PACKAGE CONTENTS Diagram Diagram Description Quantity Description Quantity Letter Letter Cart Bed Center Front Axle Brace Wheels Yoke Rear Axle Support Steering Link Connector Left Rear Axle Brace Plastic Coupling Right Rear Axle Brace Pull Handle Front Axle Support Removable Rubber Liner... -
Page 5: Hardware Contents
Hardware Contents Garden Utility Cart HARDWARE CONTENTS UPDATE: For Your Convenience All (7) Carriage Support Bolts are already attached to the Cart Bed UPDATE: For Your Convenience (3) of the (7) Cotter Pins are already attached to the Front Axle Support bracket Diagram Diagram Description... -
Page 6: Assembly Instructions
Assembly Instructions Garden Utility Cart ASSEMBLY INSTRUCTIONS 1. Turn the cart bed (A) upside down. If necessary, use the cardboard from the product carton to prevent scratching and damage to the nish of the cart. 2. REAR AXLE ASSEMBLY a). Align the two holes in the rear axle support (G) with the carriage support bolt (II) which are welded on the bed at the rear of the cart bed (A). - Page 7 Assembly Instructions Garden Utility Cart ASSEMBLY INSTRUCTIONS - continued 3. FRONT AXLE ASSEMBLY a). Attach the front axle support (J) to the bed (A) by using two carriage support bolts which are welded onto the bed and two 8 mm washers (FF) and two UPDATE: 8 mm lock nuts (GG).
- Page 8 Assembly Instructions Garden Utility Cart ASSEMBLY INSTRUCTIONS - continued 4. WHEEL ASSEMBLY a). Place the wheels (F) onto the ends of the front and rear axle supports. b). Insert a 12 mm washer (HH) and a Cotter Pin (LL) onto the end of each wheel. (see Fig. 3) c).
- Page 9 Assembly Instructions Garden Utility Cart ASSEMBLY INSTRUCTIONS - continued 5. PULL HANDLE ASSEMBLY a). Remove the large pin (JJ) from the plastic coupling (N). b). Insert the end of the pull handle (O) into the plastic coupling (N). NOTE: Make certain the holes in the pull handle are aligned with the holes in the plastic coupling.
-
Page 10: Assembly Diagram
Assembly Diagram Garden Utility Cart ASSEMBLY DIAGRAM...
